Datasheet AD9467-EP (Analog Devices) - 10
| Fabricante | Analog Devices |
| Descripción | 16-Bit, 200 MSPS/250 MSPS Analog-to-Digital Converter |
| Páginas / Página | 15 / 10 — AD9467-EP. Enhanced Product. Pin No. Mnemonic. Description |
| Formato / tamaño de archivo | PDF / 612 Kb |
| Idioma del documento | Inglés |
AD9467-EP. Enhanced Product. Pin No. Mnemonic. Description
Línea de modelo para esta hoja de datos
Versión de texto del documento

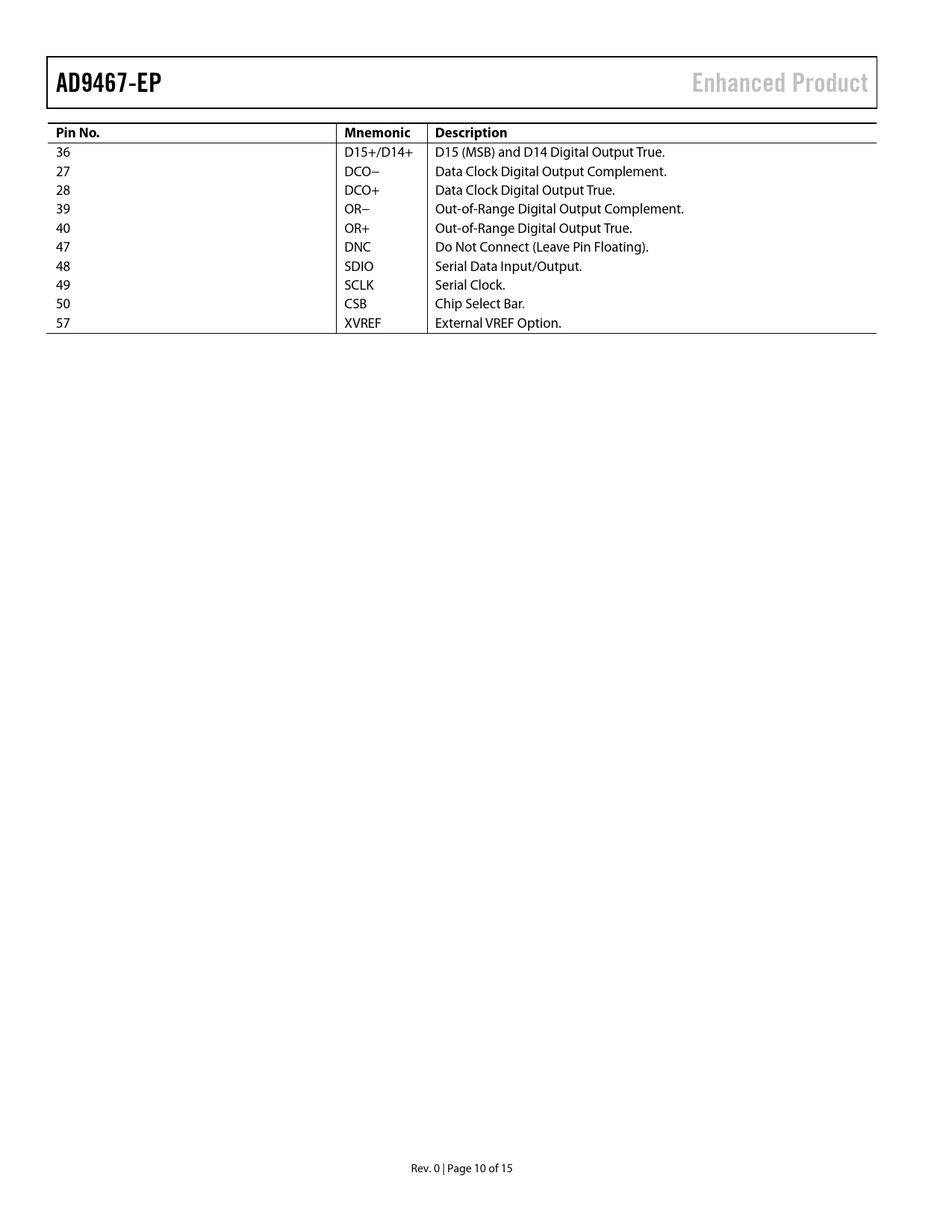

AD9467-EP Enhanced Product Pin No. Mnemonic Description
36 D15+/D14+ D15 (MSB) and D14 Digital Output True. 27 DCO− Data Clock Digital Output Complement. 28 DCO+ Data Clock Digital Output True. 39 OR− Out-of-Range Digital Output Complement. 40 OR+ Out-of-Range Digital Output True. 47 DNC Do Not Connect (Leave Pin Floating). 48 SDIO Serial Data Input/Output. 49 SCLK Serial Clock. 50 CSB Chip Select Bar. 57 XVREF External VREF Option. Rev. 0 | Page 10 of 15 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS REVISION HISTORY SPECIFICATIONS AC SPECIFICATIONS DIGITAL SPECIFICATIONS SWITCHING SPECIFICATIONS Timing Diagrams ABSOLUTE MAXIMUM RATINGS THERMAL IMPEDANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
