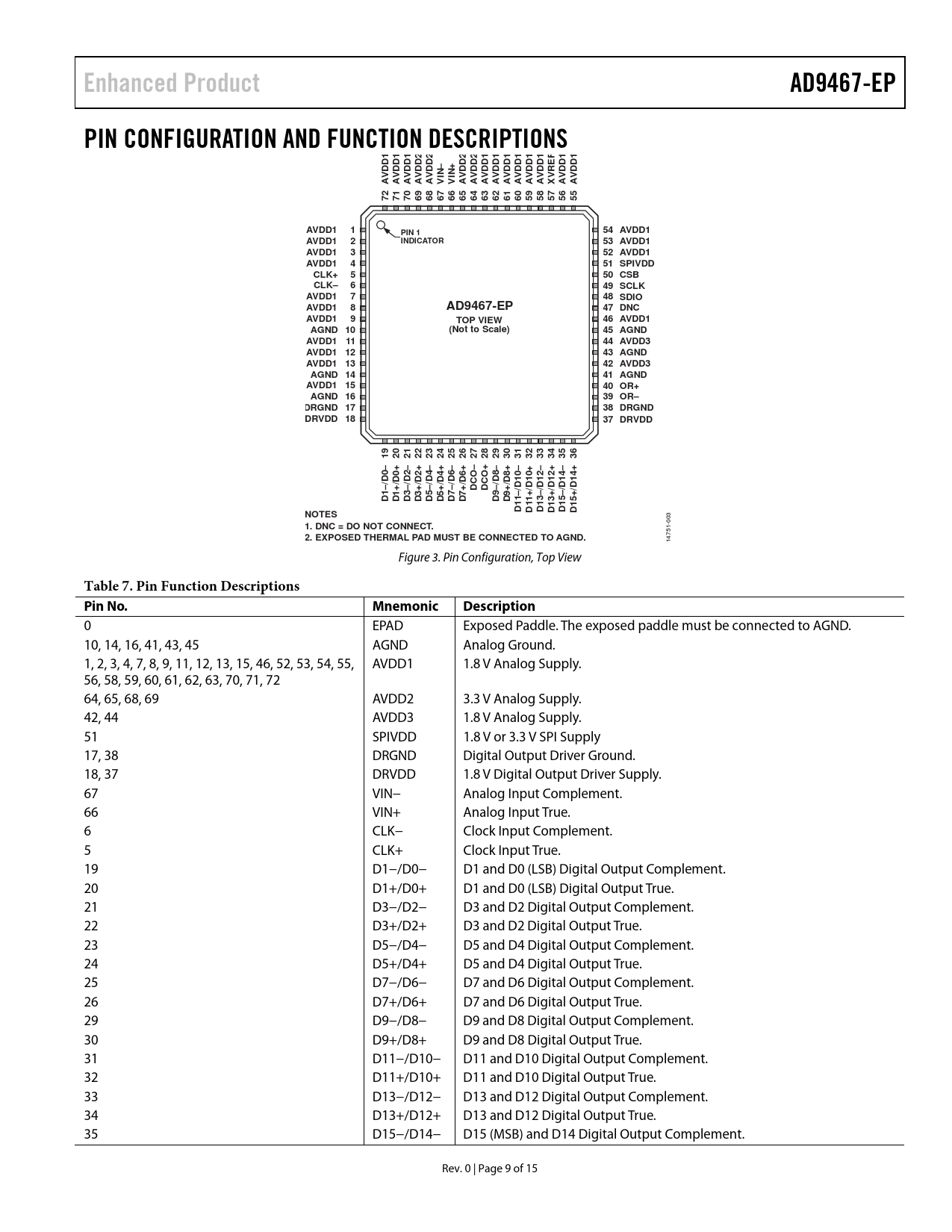

Enhanced Product AD9467-EP PIN CONFIGURATION AND FUNCTION DESCRIPTIONS EF DD1 DD1 DD1 DD2 DD2 DD2 DD2 DD1 DD1 DD1 DD1 DD1 DD1 DD1 DD1 V V V V V IN– IN+ V V V V V V V V V V A A A A A V V A A A A A A A A XVR A A 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 AVDD1 1 54 AVDD1 PIN 1 AVDD1 2 INDICATOR 53 AVDD1 AVDD1 3 52 AVDD1 AVDD1 4 51 SPIVDD CLK+ 5 50 CSB CLK– 6 49 SCLK AVDD1 7 48 SDIO AVDD1 8 AD9467-EP 47 DNC AVDD1 9 TOP VIEW 46 AVDD1 AGND 10 (Not to Scale) 45 AGND AVDD1 11 44 AVDD3 AVDD1 12 43 AGND AVDD1 13 42 AVDD3 AGND 14 41 AGND AVDD1 15 40 OR+ AGND 16 39 OR– DRGND 17 38 DRGND DRVDD 18 37 DRVDD 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 – + D0– /D0+ D2– /D2+ D4– /D4+ D6– /D6+ D8– /D8+ DCO DCO D10– /D10+ D12– /D12+ D14– /D14+ D1–/ D1+ D3–/ D3+ D5–/ D5+ D7–/ D7+ D9–/ D9+ 1–/ 1 1+ 1 D D D13–/ D13+ D15–/ D15+ NOTES
003
1. DNC = DO NOT CONNECT. 2. EXPOSED THERMAL PAD MUST BE CONNECTED TO AGND.
14751- Figure 3. Pin Configuration, Top View
Table 7. Pin Function Descriptions Pin No. Mnemonic Description
0 EPAD Exposed Paddle. The exposed paddle must be connected to AGND. 10, 14, 16, 41, 43, 45 AGND Analog Ground. 1, 2, 3, 4, 7, 8, 9, 11, 12, 13, 15, 46, 52, 53, 54, 55, AVDD1 1.8 V Analog Supply. 56, 58, 59, 60, 61, 62, 63, 70, 71, 72 64, 65, 68, 69 AVDD2 3.3 V Analog Supply. 42, 44 AVDD3 1.8 V Analog Supply. 51 SPIVDD 1.8 V or 3.3 V SPI Supply 17, 38 DRGND Digital Output Driver Ground. 18, 37 DRVDD 1.8 V Digital Output Driver Supply. 67 VIN− Analog Input Complement. 66 VIN+ Analog Input True. 6 CLK− Clock Input Complement. 5 CLK+ Clock Input True. 19 D1−/D0− D1 and D0 (LSB) Digital Output Complement. 20 D1+/D0+ D1 and D0 (LSB) Digital Output True. 21 D3−/D2− D3 and D2 Digital Output Complement. 22 D3+/D2+ D3 and D2 Digital Output True. 23 D5−/D4− D5 and D4 Digital Output Complement. 24 D5+/D4+ D5 and D4 Digital Output True. 25 D7−/D6− D7 and D6 Digital Output Complement. 26 D7+/D6+ D7 and D6 Digital Output True. 29 D9−/D8− D9 and D8 Digital Output Complement. 30 D9+/D8+ D9 and D8 Digital Output True. 31 D11−/D10− D11 and D10 Digital Output Complement. 32 D11+/D10+ D11 and D10 Digital Output True. 33 D13−/D12− D13 and D12 Digital Output Complement. 34 D13+/D12+ D13 and D12 Digital Output True. 35 D15−/D14− D15 (MSB) and D14 Digital Output Complement. Rev. 0 | Page 9 of 15 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS REVISION HISTORY SPECIFICATIONS AC SPECIFICATIONS DIGITAL SPECIFICATIONS SWITCHING SPECIFICATIONS Timing Diagrams ABSOLUTE MAXIMUM RATINGS THERMAL IMPEDANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
