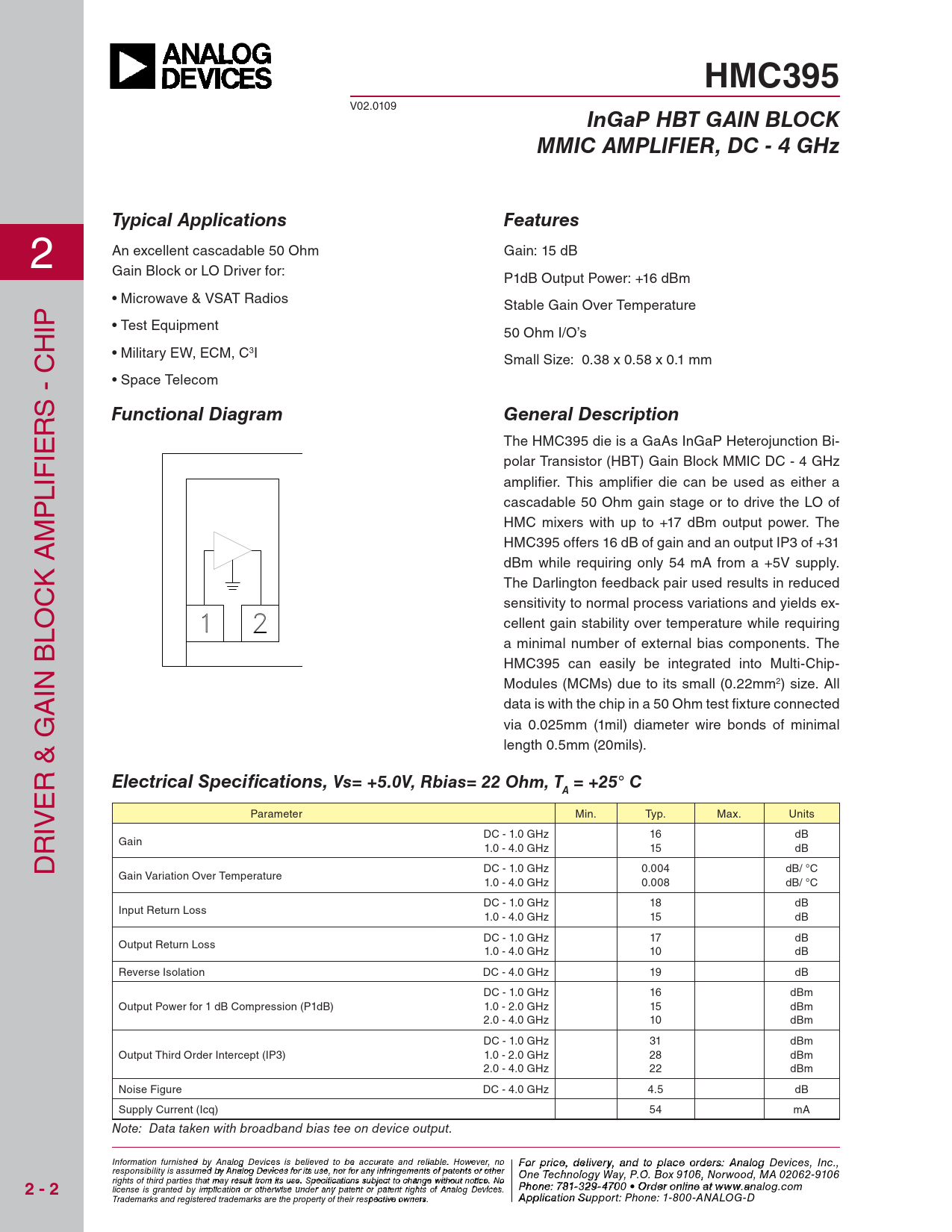

HMC395
V02.0109
InGaP HBT GAIN BLOCK MMIC AMPLIFIER, DC - 4 GHz Typical Applications Features
2 An excellent cascadable 50 Ohm Gain: 15 dB Gain Block or LO Driver for: P1dB Output Power: +16 dBm • Microwave & VSAT Radios Stable Gain Over Temperature IP • Test Equipment 50 Ohm I/O’s H • Military EW, ECM, C3I Small Size: 0.38 x 0.58 x 0.1 mm - C • Space Telecom S
Functional Diagram General Description
R IE The HMC395 die is a GaAs InGaP Heterojunction Bi- polar Transistor (HBT) Gain Block MMIC DC - 4 GHz IF L amplifi er. This amplifi er die can be used as either a P cascadable 50 Ohm gain stage or to drive the LO of M HMC mixers with up to +17 dBm output power. The HMC395 offers 16 dB of gain and an output IP3 of +31 dBm while requiring only 54 mA from a +5V supply. K A The Darlington feedback pair used results in reduced sensitivity to normal process variations and yields ex- OC cellent gain stability over temperature while requiring a minimal number of external bias components. The BL HMC395 can easily be integrated into Multi-Chip- IN Modules (MCMs) due to its small (0.22mm2) size. All A data is with the chip in a 50 Ohm test fi xture connected via 0.025mm (1mil) diameter wire bonds of minimal length 0.5mm (20mils). & G R
Electrical Specifi cations, Vs= +5.0V, Rbias= 22 Ohm, T = +25° C
E
A
Parameter Min. Typ. Max. Units IV DC - 1.0 GHz 16 dB R Gain 1.0 - 4.0 GHz 15 dB D DC - 1.0 GHz 0.004 dB/ °C Gain Variation Over Temperature 1.0 - 4.0 GHz 0.008 dB/ °C DC - 1.0 GHz 18 dB Input Return Loss 1.0 - 4.0 GHz 15 dB DC - 1.0 GHz 17 dB Output Return Loss 1.0 - 4.0 GHz 10 dB Reverse Isolation DC - 4.0 GHz 19 dB DC - 1.0 GHz 16 dBm Output Power for 1 dB Compression (P1dB) 1.0 - 2.0 GHz 15 dBm 2.0 - 4.0 GHz 10 dBm DC - 1.0 GHz 31 dBm Output Third Order Intercept (IP3) 1.0 - 2.0 GHz 28 dBm 2.0 - 4.0 GHz 22 dBm Noise Figure DC - 4.0 GHz 4.5 dB Supply Current (Icq) 54 mA Note: Data taken with broadband bias tee on device output. Information furnish F ed obr pri y Anal ce, de og Device li s vie s r beyli, a eve nd to pla d to be accura ce o te and rder reliabl s e , pl . Ho ease co wever, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other ntact Hittite Microwave Corporation: One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 rights of third parties that may result from its use. Specifications subject to change without notice. No
