–15V ELECTRICAL CH. ARA TERISTICS. VS =. 15V, VCM = 0V, VOUT = 0V, 0. C, unless otherwise noted. LT1213AC. LT1213C/LT1214C

–15V ELECTRICAL CH ARA TERISTICS VS = 15V, VCM = 0V, VOUT = 0V, 0 C, unless otherwise noted LT1213AC LT1213C/LT1214C

Línea de modelo para esta hoja de datos

Versión de texto del documento

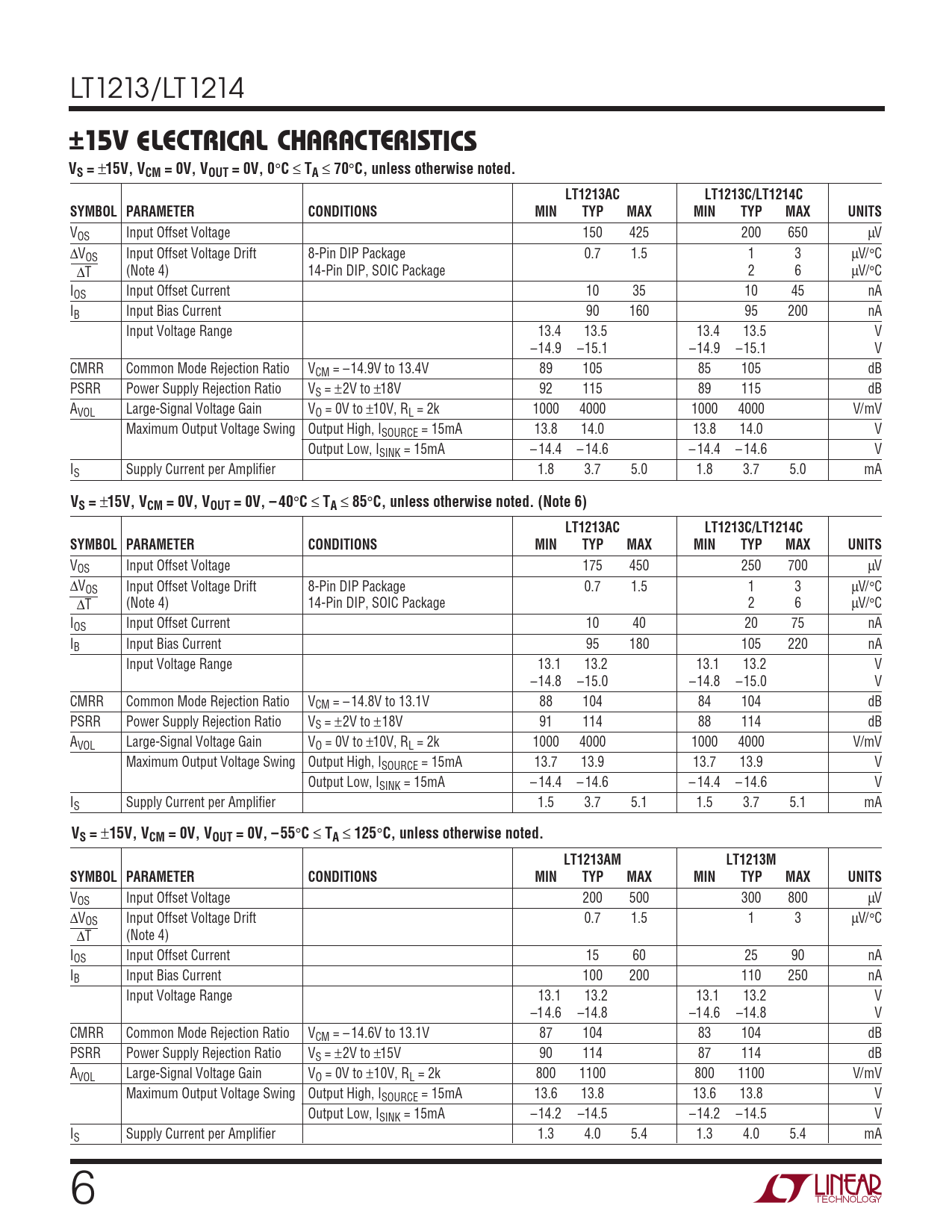

LT1213/LT1214
+ –15V ELECTRICAL CH C ARA TERISTICS VS =
±
15V, VCM = 0V, VOUT = 0V, 0
°
C

TA

70
°
C, unless otherwise noted. LT1213AC LT1213C/LT1214C SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
VOS Input Offset Voltage 150 425 200 650 µV ∆VOS Input Offset Voltage Drift 8-Pin DIP Package 0.7 1.5 1 3 µV/°C ∆T (Note 4) 14-Pin DIP, SOIC Package 2 6 µV/°C IOS Input Offset Current 10 35 10 45 nA IB Input Bias Current 90 160 95 200 nA Input Voltage Range 13.4 13.5 13.4 13.5 V –14.9 –15.1 –14.9 –15.1 V CMRR Common Mode Rejection Ratio VCM = –14.9V to 13.4V 89 105 85 105 dB PSRR Power Supply Rejection Ratio VS = ±2V to ±18V 92 115 89 115 dB AVOL Large-Signal Voltage Gain VO = 0V to ±10V, RL = 2k 1000 4000 1000 4000 V/mV Maximum Output Voltage Swing Output High, ISOURCE = 15mA 13.8 14.0 13.8 14.0 V Output Low, ISINK = 15mA – 14.4 – 14.6 – 14.4 – 14.6 V IS Supply Current per Amplifier 1.8 3.7 5.0 1.8 3.7 5.0 mA
VS =
±
15V, VCM = 0V, VOUT = 0V, – 40
°
C

TA

85
°
C, unless otherwise noted. (Note 6) LT1213AC LT1213C/LT1214C SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
VOS Input Offset Voltage 175 450 250 700 µV ∆VOS Input Offset Voltage Drift 8-Pin DIP Package 0.7 1.5 1 3 µV/°C ∆T (Note 4) 14-Pin DIP, SOIC Package 2 6 µV/°C IOS Input Offset Current 10 40 20 75 nA IB Input Bias Current 95 180 105 220 nA Input Voltage Range 13.1 13.2 13.1 13.2 V –14.8 –15.0 –14.8 –15.0 V CMRR Common Mode Rejection Ratio VCM = – 14.8V to 13.1V 88 104 84 104 dB PSRR Power Supply Rejection Ratio VS = ±2V to ±18V 91 114 88 114 dB AVOL Large-Signal Voltage Gain VO = 0V to ±10V, RL = 2k 1000 4000 1000 4000 V/mV Maximum Output Voltage Swing Output High, ISOURCE = 15mA 13.7 13.9 13.7 13.9 V Output Low, ISINK = 15mA – 14.4 – 14.6 – 14.4 – 14.6 V IS Supply Current per Amplifier 1.5 3.7 5.1 1.5 3.7 5.1 mA
VS =
±
15V, VCM = 0V, VOUT = 0V, – 55
°
C

TA

125
°
C, unless otherwise noted. LT1213AM LT1213M SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
VOS Input Offset Voltage 200 500 300 800 µV ∆VOS Input Offset Voltage Drift 0.7 1.5 1 3 µV/°C ∆T (Note 4) IOS Input Offset Current 15 60 25 90 nA IB Input Bias Current 100 200 110 250 nA Input Voltage Range 13.1 13.2 13.1 13.2 V –14.6 –14.8 –14.6 –14.8 V CMRR Common Mode Rejection Ratio VCM = – 14.6V to 13.1V 87 104 83 104 dB PSRR Power Supply Rejection Ratio VS = ±2V to ±15V 90 114 87 114 dB AVOL Large-Signal Voltage Gain VO = 0V to ±10V, RL = 2k 800 1100 800 1100 V/mV Maximum Output Voltage Swing Output High, ISOURCE = 15mA 13.6 13.8 13.6 13.8 V Output Low, ISINK = 15mA –14.2 –14.5 –14.2 –14.5 V IS Supply Current per Amplifier 1.3 4.0 5.4 1.3 4.0 5.4 mA 6
