3.3V ELECTRICAL CH. ARA TERISTICS. VS = 3.3V, VCM = 0.5V, VOUT = 0.5V, TA = 25. C, unless otherwise noted. (Note 8). LT1213AC
Línea de modelo para esta hoja de datos
Versión de texto del documento

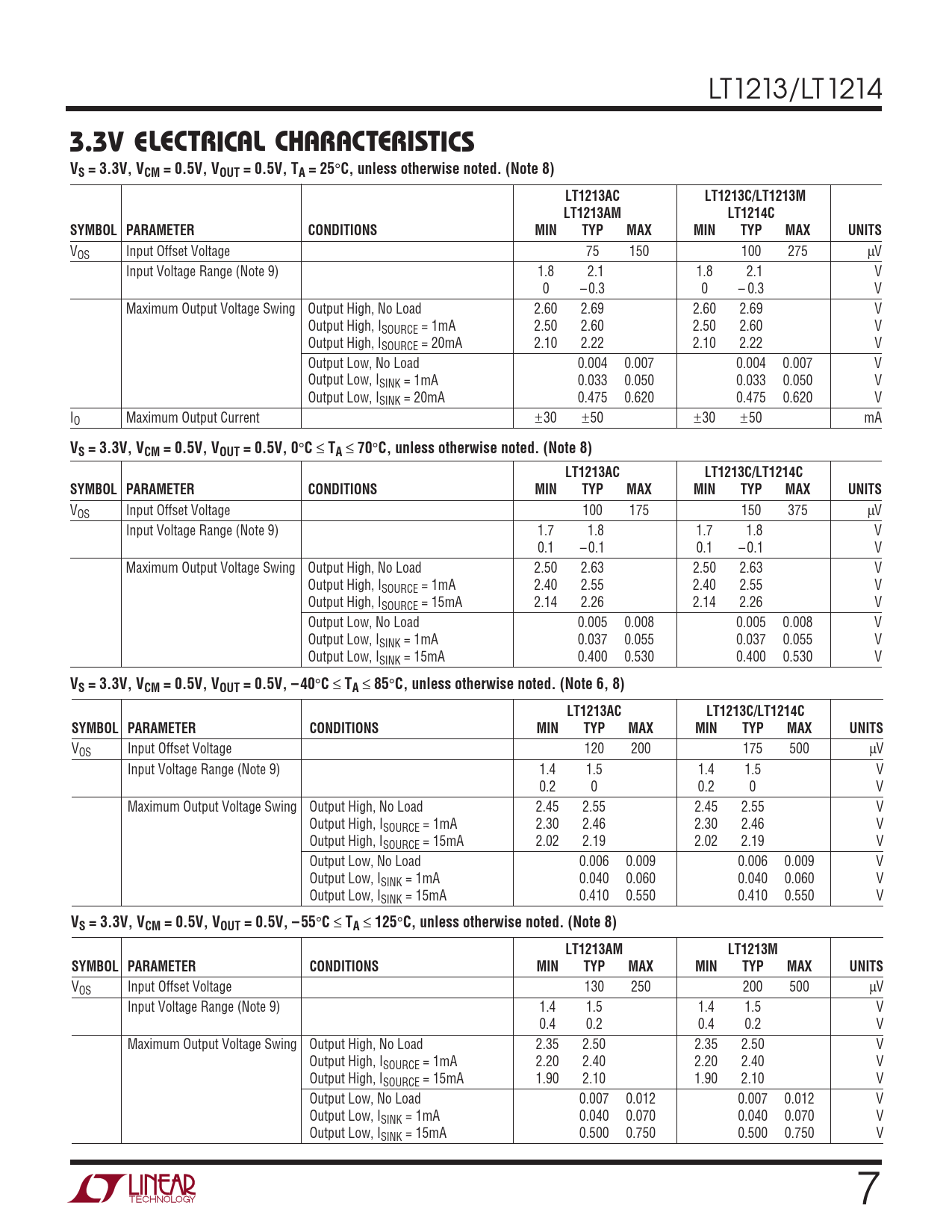

LT1213/LT1214
3.3V ELECTRICAL CH C ARA TERISTICS VS = 3.3V, VCM = 0.5V, VOUT = 0.5V, TA = 25
°
C, unless otherwise noted. (Note 8) LT1213AC LT1213C/LT1213M LT1213AM LT1214C SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
VOS Input Offset Voltage 75 150 100 275 µV Input Voltage Range (Note 9) 1.8 2.1 1.8 2.1 V 0 – 0.3 0 – 0.3 V Maximum Output Voltage Swing Output High, No Load 2.60 2.69 2.60 2.69 V Output High, ISOURCE = 1mA 2.50 2.60 2.50 2.60 V Output High, ISOURCE = 20mA 2.10 2.22 2.10 2.22 V Output Low, No Load 0.004 0.007 0.004 0.007 V Output Low, ISINK = 1mA 0.033 0.050 0.033 0.050 V Output Low, ISINK = 20mA 0.475 0.620 0.475 0.620 V IO Maximum Output Current ±30 ±50 ±30 ±50 mA
VS = 3.3V, VCM = 0.5V, VOUT = 0.5V, 0
°
C
≤
TA
≤
70
°
C, unless otherwise noted. (Note 8) LT1213AC LT1213C/LT1214C SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
VOS Input Offset Voltage 100 175 150 375 µV Input Voltage Range (Note 9) 1.7 1.8 1.7 1.8 V 0.1 – 0.1 0.1 – 0.1 V Maximum Output Voltage Swing Output High, No Load 2.50 2.63 2.50 2.63 V Output High, ISOURCE = 1mA 2.40 2.55 2.40 2.55 V Output High, ISOURCE = 15mA 2.14 2.26 2.14 2.26 V Output Low, No Load 0.005 0.008 0.005 0.008 V Output Low, ISINK = 1mA 0.037 0.055 0.037 0.055 V Output Low, ISINK = 15mA 0.400 0.530 0.400 0.530 V
VS = 3.3V, VCM = 0.5V, VOUT = 0.5V, – 40
°
C
≤
TA
≤
85
°
C, unless otherwise noted. (Note 6, 8) LT1213AC LT1213C/LT1214C SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
VOS Input Offset Voltage 120 200 175 500 µV Input Voltage Range (Note 9) 1.4 1.5 1.4 1.5 V 0.2 0 0.2 0 V Maximum Output Voltage Swing Output High, No Load 2.45 2.55 2.45 2.55 V Output High, ISOURCE = 1mA 2.30 2.46 2.30 2.46 V Output High, ISOURCE = 15mA 2.02 2.19 2.02 2.19 V Output Low, No Load 0.006 0.009 0.006 0.009 V Output Low, ISINK = 1mA 0.040 0.060 0.040 0.060 V Output Low, ISINK = 15mA 0.410 0.550 0.410 0.550 V
VS = 3.3V, VCM = 0.5V, VOUT = 0.5V, – 55
°
C
≤
TA
≤
125
°
C, unless otherwise noted. (Note 8) LT1213AM LT1213M SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
VOS Input Offset Voltage 130 250 200 500 µV Input Voltage Range (Note 9) 1.4 1.5 1.4 1.5 V 0.4 0.2 0.4 0.2 V Maximum Output Voltage Swing Output High, No Load 2.35 2.50 2.35 2.50 V Output High, ISOURCE = 1mA 2.20 2.40 2.20 2.40 V Output High, ISOURCE = 15mA 1.90 2.10 1.90 2.10 V Output Low, No Load 0.007 0.012 0.007 0.012 V Output Low, ISINK = 1mA 0.040 0.070 0.040 0.070 V Output Low, ISINK = 15mA 0.500 0.750 0.500 0.750 V 7
3.3V ELECTRICAL CH C ARA TERISTICS VS = 3.3V, VCM = 0.5V, VOUT = 0.5V, TA = 25
°
C, unless otherwise noted. (Note 8) LT1213AC LT1213C/LT1213M LT1213AM LT1214C SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
VOS Input Offset Voltage 75 150 100 275 µV Input Voltage Range (Note 9) 1.8 2.1 1.8 2.1 V 0 – 0.3 0 – 0.3 V Maximum Output Voltage Swing Output High, No Load 2.60 2.69 2.60 2.69 V Output High, ISOURCE = 1mA 2.50 2.60 2.50 2.60 V Output High, ISOURCE = 20mA 2.10 2.22 2.10 2.22 V Output Low, No Load 0.004 0.007 0.004 0.007 V Output Low, ISINK = 1mA 0.033 0.050 0.033 0.050 V Output Low, ISINK = 20mA 0.475 0.620 0.475 0.620 V IO Maximum Output Current ±30 ±50 ±30 ±50 mA
VS = 3.3V, VCM = 0.5V, VOUT = 0.5V, 0
°
C
≤
TA
≤
70
°
C, unless otherwise noted. (Note 8) LT1213AC LT1213C/LT1214C SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
VOS Input Offset Voltage 100 175 150 375 µV Input Voltage Range (Note 9) 1.7 1.8 1.7 1.8 V 0.1 – 0.1 0.1 – 0.1 V Maximum Output Voltage Swing Output High, No Load 2.50 2.63 2.50 2.63 V Output High, ISOURCE = 1mA 2.40 2.55 2.40 2.55 V Output High, ISOURCE = 15mA 2.14 2.26 2.14 2.26 V Output Low, No Load 0.005 0.008 0.005 0.008 V Output Low, ISINK = 1mA 0.037 0.055 0.037 0.055 V Output Low, ISINK = 15mA 0.400 0.530 0.400 0.530 V
VS = 3.3V, VCM = 0.5V, VOUT = 0.5V, – 40
°
C
≤
TA
≤
85
°
C, unless otherwise noted. (Note 6, 8) LT1213AC LT1213C/LT1214C SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
VOS Input Offset Voltage 120 200 175 500 µV Input Voltage Range (Note 9) 1.4 1.5 1.4 1.5 V 0.2 0 0.2 0 V Maximum Output Voltage Swing Output High, No Load 2.45 2.55 2.45 2.55 V Output High, ISOURCE = 1mA 2.30 2.46 2.30 2.46 V Output High, ISOURCE = 15mA 2.02 2.19 2.02 2.19 V Output Low, No Load 0.006 0.009 0.006 0.009 V Output Low, ISINK = 1mA 0.040 0.060 0.040 0.060 V Output Low, ISINK = 15mA 0.410 0.550 0.410 0.550 V
VS = 3.3V, VCM = 0.5V, VOUT = 0.5V, – 55
°
C
≤
TA
≤
125
°
C, unless otherwise noted. (Note 8) LT1213AM LT1213M SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
VOS Input Offset Voltage 130 250 200 500 µV Input Voltage Range (Note 9) 1.4 1.5 1.4 1.5 V 0.4 0.2 0.4 0.2 V Maximum Output Voltage Swing Output High, No Load 2.35 2.50 2.35 2.50 V Output High, ISOURCE = 1mA 2.20 2.40 2.20 2.40 V Output High, ISOURCE = 15mA 1.90 2.10 1.90 2.10 V Output Low, No Load 0.007 0.012 0.007 0.012 V Output Low, ISINK = 1mA 0.040 0.070 0.040 0.070 V Output Low, ISINK = 15mA 0.500 0.750 0.500 0.750 V 7
