Datasheet LT1213, LT1214 (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | 28MHz, 12V/µs, Single Supply Quad Precision Op Amps |
| Páginas / Página | 20 / 5 — 5V ELECTRICAL CH. ARA TERISTICS. VS = 5V, VCM = 0.5V, VOUT = 0.5V, – 55. … |
| Formato / tamaño de archivo | PDF / 401 Kb |
| Idioma del documento | Inglés |

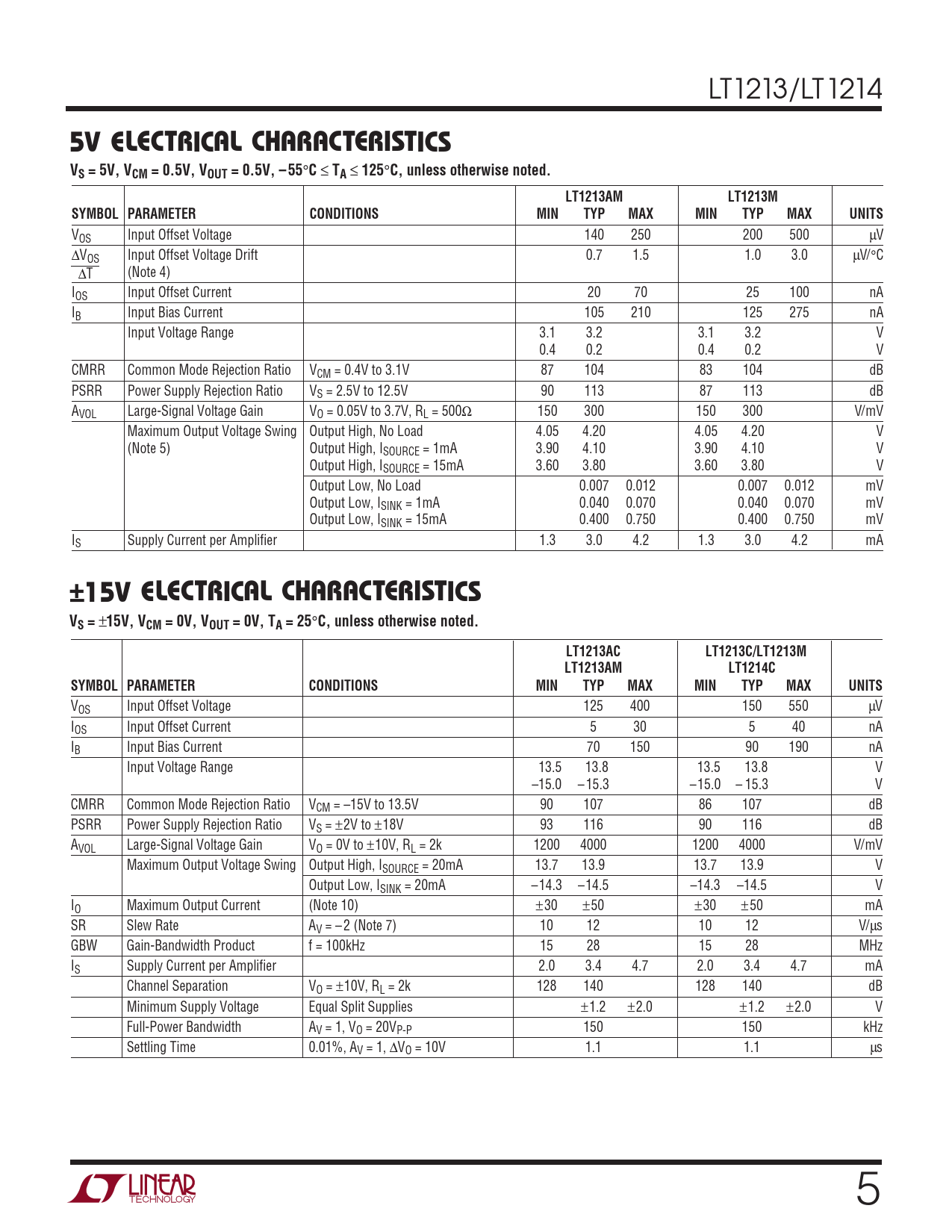

5V ELECTRICAL CH. ARA TERISTICS. VS = 5V, VCM = 0.5V, VOUT = 0.5V, – 55. 125. C, unless otherwise noted. LT1213AM. LT1213M
Línea de modelo para esta hoja de datos
Versión de texto del documento
LT1213/LT1214
5V ELECTRICAL CH C ARA TERISTICS VS = 5V, VCM = 0.5V, VOUT = 0.5V, – 55
°
C
≤
TA
≤
125
°
C, unless otherwise noted. LT1213AM LT1213M SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
VOS Input Offset Voltage 140 250 200 500 µV ∆VOS Input Offset Voltage Drift 0.7 1.5 1.0 3.0 µV/°C ∆T (Note 4) IOS Input Offset Current 20 70 25 100 nA IB Input Bias Current 105 210 125 275 nA Input Voltage Range 3.1 3.2 3.1 3.2 V 0.4 0.2 0.4 0.2 V CMRR Common Mode Rejection Ratio VCM = 0.4V to 3.1V 87 104 83 104 dB PSRR Power Supply Rejection Ratio VS = 2.5V to 12.5V 90 113 87 113 dB AVOL Large-Signal Voltage Gain VO = 0.05V to 3.7V, RL = 500Ω 150 300 150 300 V/mV Maximum Output Voltage Swing Output High, No Load 4.05 4.20 4.05 4.20 V (Note 5) Output High, ISOURCE = 1mA 3.90 4.10 3.90 4.10 V Output High, ISOURCE = 15mA 3.60 3.80 3.60 3.80 V Output Low, No Load 0.007 0.012 0.007 0.012 mV Output Low, ISINK = 1mA 0.040 0.070 0.040 0.070 mV Output Low, ISINK = 15mA 0.400 0.750 0.400 0.750 mV IS Supply Current per Amplifier 1.3 3.0 4.2 1.3 3.0 4.2 mA
