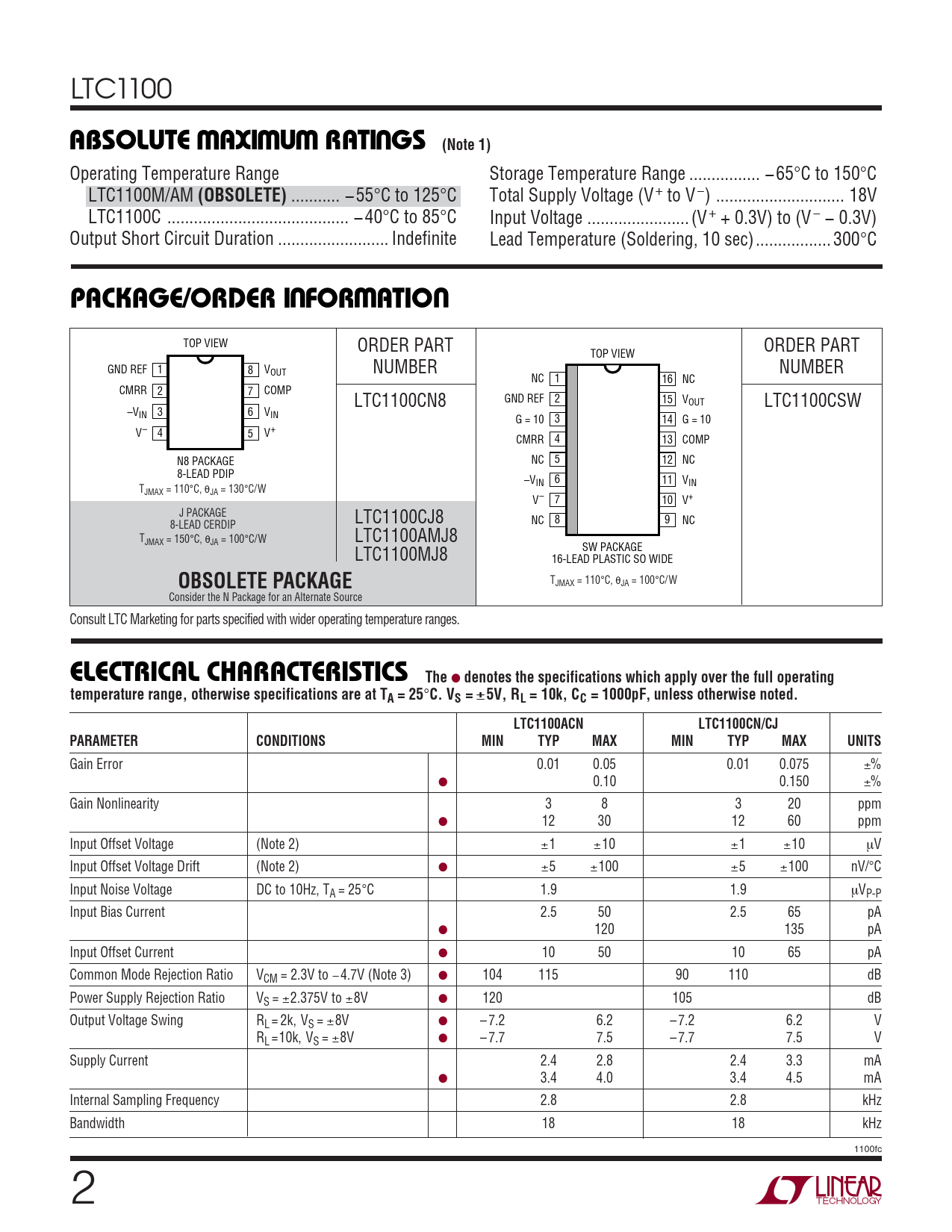

LTC1100
W W W U ABSOLUTE AXI U RATI GS (Note 1)
Operating Temperature Range Storage Temperature Range .. −65°C to 150°C LTC1100M/AM
(OBSOLETE)
... −55°C to 125°C Total Supply Voltage (V+ to V−) ... 18V LTC1100C ... −40°C to 85°C Input Voltage ... (V+ + 0.3V) to (V− − 0.3V) Output Short Circuit Duration ... Indefinite Lead Temperature (Soldering, 10 sec)... 300°C
U W U PACKAGE/ORDER I FOR ATIO
TOP VIEW ORDER PART ORDER PART TOP VIEW GND REF 1 8 VOUT NUMBER NUMBER NC 1 16 NC CMRR 2 7 COMP GND REF 2 15 V LTC1100CN8 OUT LTC1100CSW –V 3 IN 6 VIN G = 10 3 14 G = 10 V– 4 5 V+ CMRR 4 13 COMP N8 PACKAGE NC 5 12 NC 8-LEAD PDIP –V 6 11 IN VIN TJMAX = 110°C, θJA = 130°C/W V– 7 10 V+ J PACKAGE LTC1100CJ8 NC 8 9 NC 8-LEAD CERDIP T LTC1100AMJ8 JMAX = 150°C, θJA = 100°C/W SW PACKAGE LTC1100MJ8 16-LEAD PLASTIC SO WIDE TJMAX = 110°C, θJA = 100°C/W
OBSOLETE PACKAGE
Consider the N Package for an Alternate Source Consult LTC Marketing for parts specified with wider operating temperature ranges.
ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. VS =
±
5V, RL = 10k, CC = 1000pF, unless otherwise noted. LTC1100ACN LTC1100CN/CJ PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
Gain Error 0.01 0.05 0.01 0.075 ±% ● 0.10 0.150 ±% Gain Nonlinearity 3 8 3 20 ppm ● 12 30 12 60 ppm Input Offset Voltage (Note 2) ±1 ±10 ±1 ±10 µV Input Offset Voltage Drift (Note 2) ● ±5 ±100 ±5 ±100 nV/°C Input Noise Voltage DC to 10Hz, TA = 25°C 1.9 1.9 µVP-P Input Bias Current 2.5 50 2.5 65 pA ● 120 135 pA Input Offset Current ● 10 50 10 65 pA Common Mode Rejection Ratio VCM = 2.3V to −4.7V (Note 3) ● 104 115 90 110 dB Power Supply Rejection Ratio VS = ±2.375V to ±8V ● 120 105 dB Output Voltage Swing RL = 2k, VS = ±8V ● – 7.2 6.2 – 7.2 6.2 V RL =10k, VS = ±8V ● – 7.7 7.5 – 7.7 7.5 V Supply Current 2.4 2.8 2.4 3.3 mA ● 3.4 4.0 3.4 4.5 mA Internal Sampling Frequency 2.8 2.8 kHz Bandwidth 18 18 kHz 1100fc 2
