Datasheet ADR293-EP (Analog Devices) - 4
| Fabricante | Analog Devices |
| Descripción | Low Noise, Micropower 5.0 V Precision Voltage Reference |
| Páginas / Página | 12 / 4 — ADR293-EP. Enhanced Product. Table 3. Parameter. Symbol. Conditions. Min. … |
| Revisión | A |
| Formato / tamaño de archivo | PDF / 207 Kb |
| Idioma del documento | Inglés |

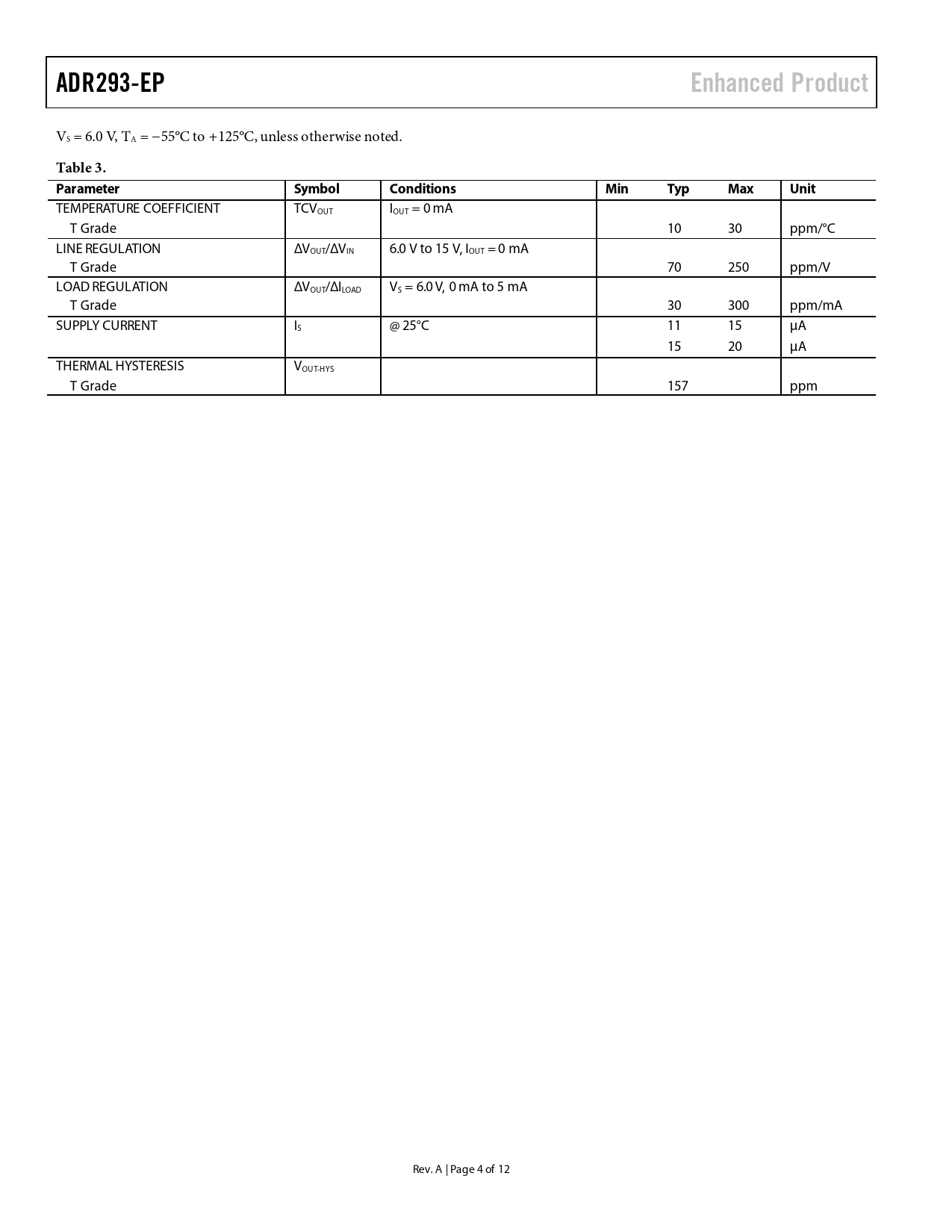

ADR293-EP. Enhanced Product. Table 3. Parameter. Symbol. Conditions. Min. Typ. Max. Unit
Línea de modelo para esta hoja de datos
Versión de texto del documento
ADR293-EP Enhanced Product
VS = 6.0 V, TA = −55°C to +125°C, unless otherwise noted.
Table 3. Parameter Symbol Conditions Min Typ Max Unit
TEMPERATURE COEFFICIENT TCVOUT IOUT = 0 mA T Grade 10 30 ppm/°C LINE REGULATION ΔVOUT/ΔVIN 6.0 V to 15 V, IOUT = 0 mA T Grade 70 250 ppm/V LOAD REGULATION ΔVOUT/ΔILOAD VS = 6.0 V, 0 mA to 5 mA T Grade 30 300 ppm/mA SUPPLY CURRENT IS @ 25°C 11 15 μA 15 20 μA THERMAL HYSTERESIS VOUT-HYS T Grade 157 ppm Rev. A | Page 4 of 12 Document Outline Features Enhanced Product Features Applications Pin Configuration General Description Revision History Specifications Electrical Specifications Absolute Maximum Ratings Thermal Resistance ESD Caution Typical Performance Characteristics Outline Dimensions Ordering Guide
