Datasheet ADR293-EP (Analog Devices) - 3
| Fabricante | Analog Devices |
| Descripción | Low Noise, Micropower 5.0 V Precision Voltage Reference |
| Páginas / Página | 12 / 3 — Enhanced Product. ADR293-EP. SPECIFICATIONS ELECTRICAL SPECIFICATIONS. … |
| Revisión | A |
| Formato / tamaño de archivo | PDF / 207 Kb |
| Idioma del documento | Inglés |
Enhanced Product. ADR293-EP. SPECIFICATIONS ELECTRICAL SPECIFICATIONS. Table 1. Parameter. Symbol. Conditions. Min. Typ. Max. Unit
Línea de modelo para esta hoja de datos
Versión de texto del documento

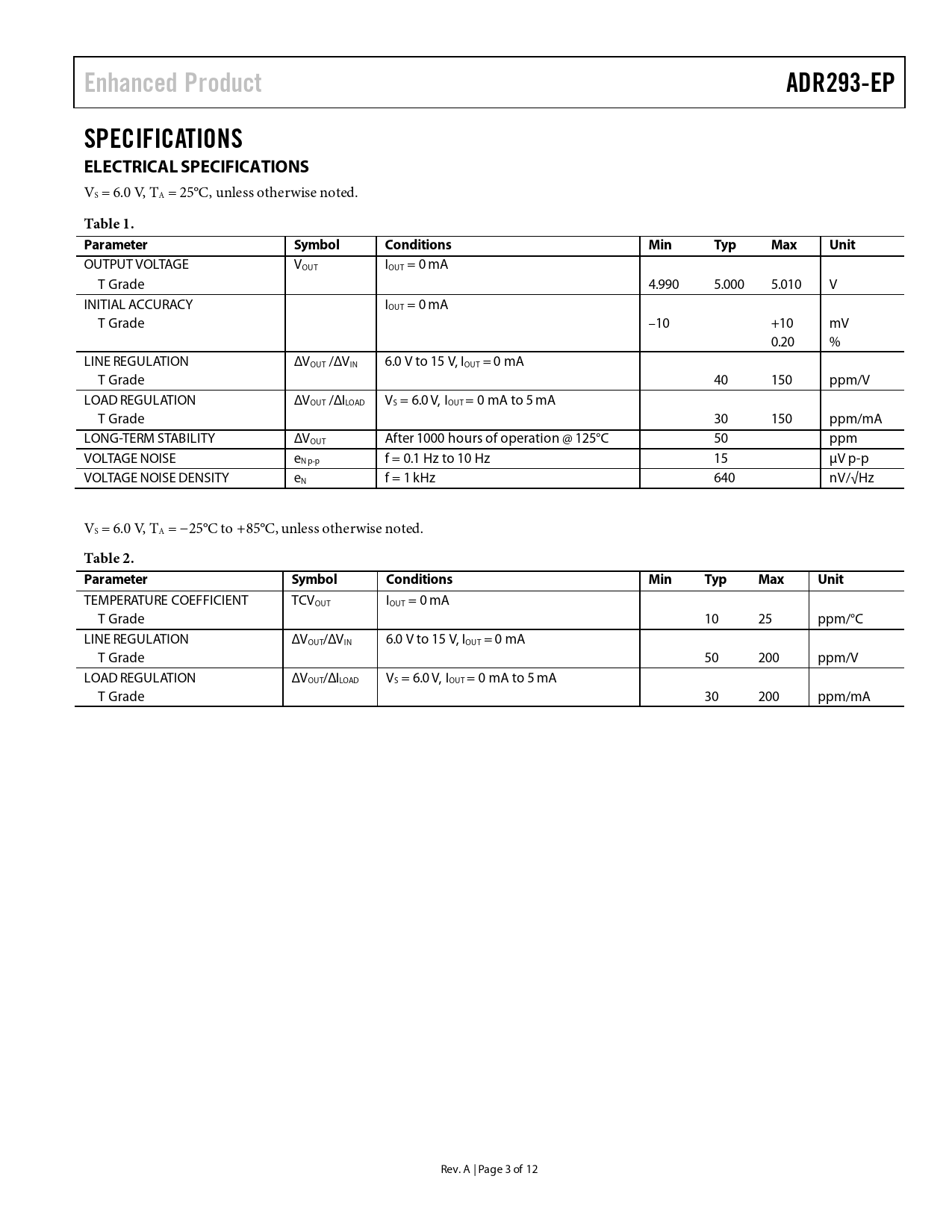

Enhanced Product ADR293-EP SPECIFICATIONS ELECTRICAL SPECIFICATIONS
VS = 6.0 V, TA = 25°C, unless otherwise noted.
Table 1. Parameter Symbol Conditions Min Typ Max Unit
OUTPUT VOLTAGE VOUT IOUT = 0 mA T Grade 4.990 5.000 5.010 V INITIAL ACCURACY IOUT = 0 mA T Grade –10 +10 mV 0.20 % LINE REGULATION ΔVOUT /ΔVIN 6.0 V to 15 V, IOUT = 0 mA T Grade 40 150 ppm/V LOAD REGULATION ΔVOUT /ΔILOAD VS = 6.0 V, IOUT = 0 mA to 5 mA T Grade 30 150 ppm/mA LONG-TERM STABILITY ΔVOUT After 1000 hours of operation @ 125°C 50 ppm VOLTAGE NOISE eN p-p f = 0.1 Hz to 10 Hz 15 μV p-p VOLTAGE NOISE DENSITY eN f = 1 kHz 640 nV/√Hz VS = 6.0 V, TA = −25°C to +85°C, unless otherwise noted.
Table 2. Parameter Symbol Conditions Min Typ Max Unit
TEMPERATURE COEFFICIENT TCVOUT IOUT = 0 mA T Grade 10 25 ppm/°C LINE REGULATION ΔVOUT/ΔVIN 6.0 V to 15 V, IOUT = 0 mA T Grade 50 200 ppm/V LOAD REGULATION ΔVOUT/ΔILOAD VS = 6.0 V, IOUT = 0 mA to 5 mA T Grade 30 200 ppm/mA Rev. A | Page 3 of 12 Document Outline Features Enhanced Product Features Applications Pin Configuration General Description Revision History Specifications Electrical Specifications Absolute Maximum Ratings Thermal Resistance ESD Caution Typical Performance Characteristics Outline Dimensions Ordering Guide
VS = 6.0 V, TA = 25°C, unless otherwise noted.
Table 1. Parameter Symbol Conditions Min Typ Max Unit
OUTPUT VOLTAGE VOUT IOUT = 0 mA T Grade 4.990 5.000 5.010 V INITIAL ACCURACY IOUT = 0 mA T Grade –10 +10 mV 0.20 % LINE REGULATION ΔVOUT /ΔVIN 6.0 V to 15 V, IOUT = 0 mA T Grade 40 150 ppm/V LOAD REGULATION ΔVOUT /ΔILOAD VS = 6.0 V, IOUT = 0 mA to 5 mA T Grade 30 150 ppm/mA LONG-TERM STABILITY ΔVOUT After 1000 hours of operation @ 125°C 50 ppm VOLTAGE NOISE eN p-p f = 0.1 Hz to 10 Hz 15 μV p-p VOLTAGE NOISE DENSITY eN f = 1 kHz 640 nV/√Hz VS = 6.0 V, TA = −25°C to +85°C, unless otherwise noted.
Table 2. Parameter Symbol Conditions Min Typ Max Unit
TEMPERATURE COEFFICIENT TCVOUT IOUT = 0 mA T Grade 10 25 ppm/°C LINE REGULATION ΔVOUT/ΔVIN 6.0 V to 15 V, IOUT = 0 mA T Grade 50 200 ppm/V LOAD REGULATION ΔVOUT/ΔILOAD VS = 6.0 V, IOUT = 0 mA to 5 mA T Grade 30 200 ppm/mA Rev. A | Page 3 of 12 Document Outline Features Enhanced Product Features Applications Pin Configuration General Description Revision History Specifications Electrical Specifications Absolute Maximum Ratings Thermal Resistance ESD Caution Typical Performance Characteristics Outline Dimensions Ordering Guide
