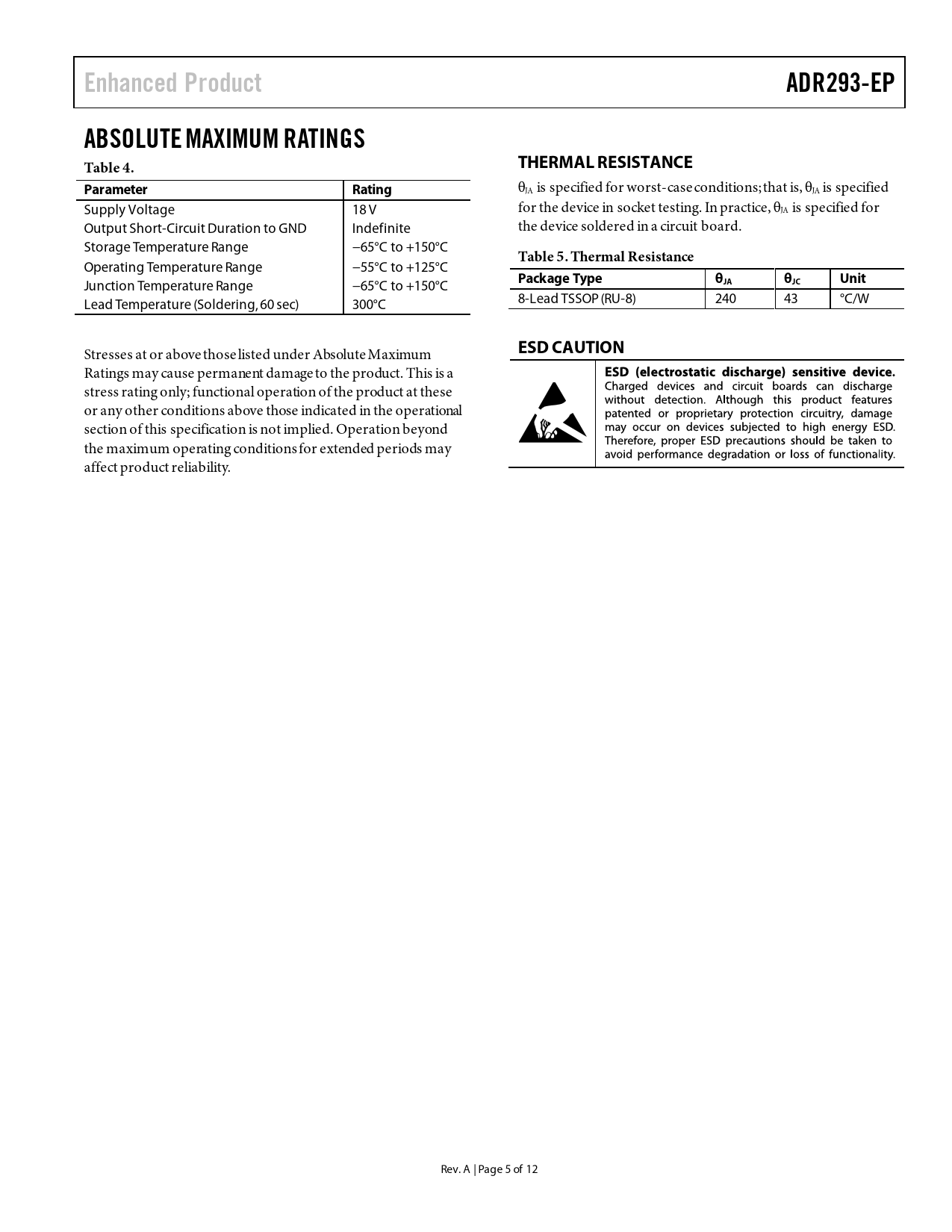

Enhanced Product. ADR293-EP. ABSOLUTE MAXIMUM RATINGS Table 4. THERMAL RESISTANCE. Parameter. Rating. Table 5. Thermal Resistance
Línea de modelo para esta hoja de datos
Versión de texto del documento
Enhanced Product ADR293-EP ABSOLUTE MAXIMUM RATINGS Table 4. THERMAL RESISTANCE Parameter Rating
θJA is specified for worst-case conditions; that is, θJA is specified Supply Voltage 18 V for the device in socket testing. In practice, θJA is specified for Output Short-Circuit Duration to GND Indefinite the device soldered in a circuit board. Storage Temperature Range −65°C to +150°C
Table 5. Thermal Resistance
Operating Temperature Range −55°C to +125°C Junction Temperature Range −65°C to +150°C
Package Type θJA θJC Unit
Lead Temperature (Soldering, 60 sec) 300°C 8-Lead TSSOP (RU-8) 240 43 °C/W Stresses at or above those listed under Absolute Maximum
ESD CAUTION
Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. A | Page 5 of 12 Document Outline Features Enhanced Product Features Applications Pin Configuration General Description Revision History Specifications Electrical Specifications Absolute Maximum Ratings Thermal Resistance ESD Caution Typical Performance Characteristics Outline Dimensions Ordering Guide
