Typical applicaTions. Boosted Output Current. with No Current Limit. with Current Limit. Handling Higher Load Currents
Línea de modelo para esta hoja de datos
Versión de texto del documento
LT1236LS8

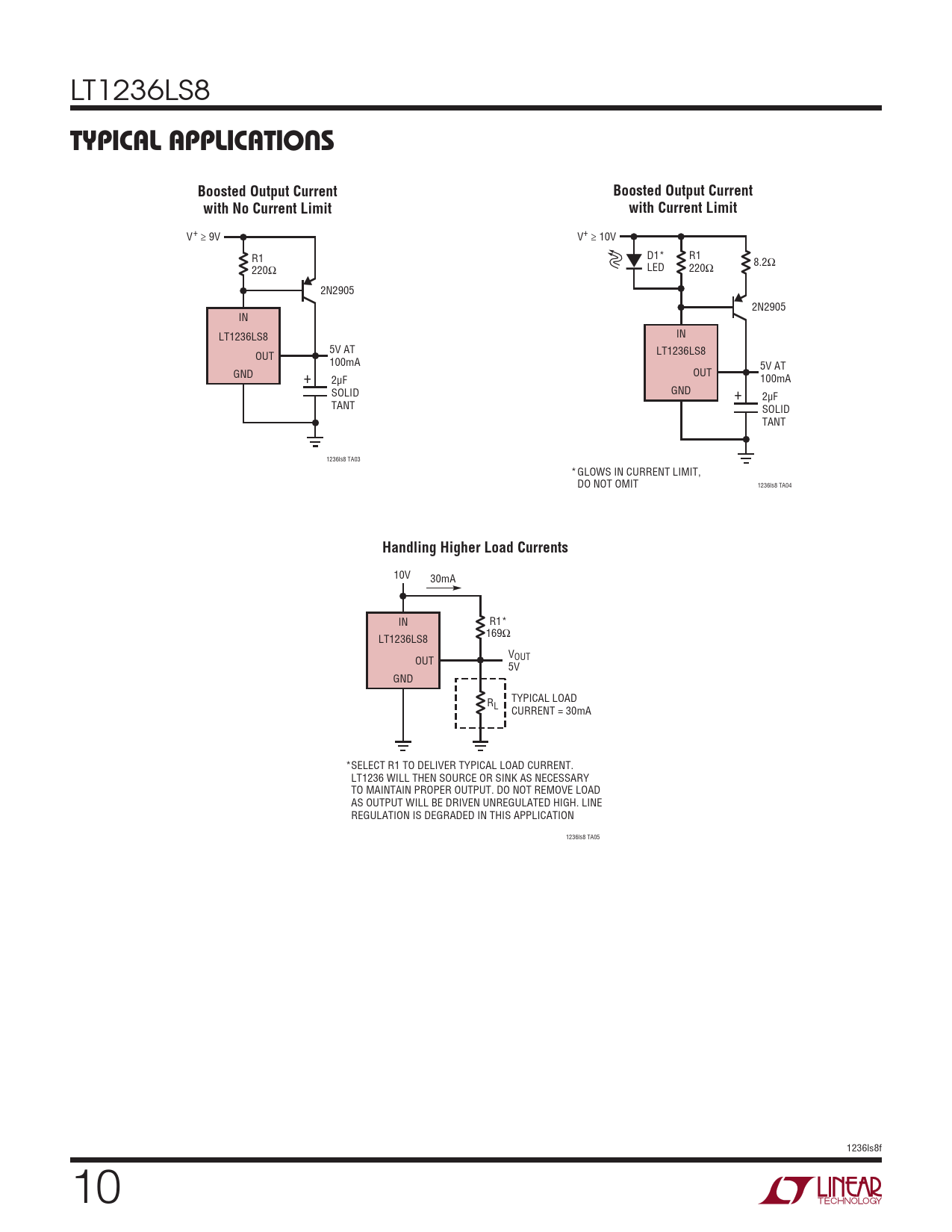

Typical applicaTions Boosted Output Current Boosted Output Current with No Current Limit with Current Limit
V+ ≥ 9V V+ ≥ 10V R1 D1* R1 8.2Ω 220Ω LED 220Ω 2N2905 2N2905 IN LT1236LS8 IN 5V AT OUT LT1236LS8 100mA 5V AT GND + OUT 2µF 100mA SOLID GND + 2µF TANT SOLID TANT 1236ls8 TA03 *GLOWS IN CURRENT LIMIT, DO NOT OMIT 1236ls8 TA04
Handling Higher Load Currents
10V 30mA IN R1* LT1236LS8 169Ω V OUT OUT 5V GND R TYPICAL LOAD L CURRENT = 30mA SELECT R1 TO DELIVER TYPICAL LOAD CURRENT. *LT1236 WILL THEN SOURCE OR SINK AS NECESSARY TO MAINTAIN PROPER OUTPUT. DO NOT REMOVE LOAD AS OUTPUT WILL BE DRIVEN UNREGULATED HIGH. LINE REGULATION IS DEGRADED IN THIS APPLICATION 1236ls8 TA05 1236ls8f 10 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Typical Applications Package Description Typical Application Related Parts
