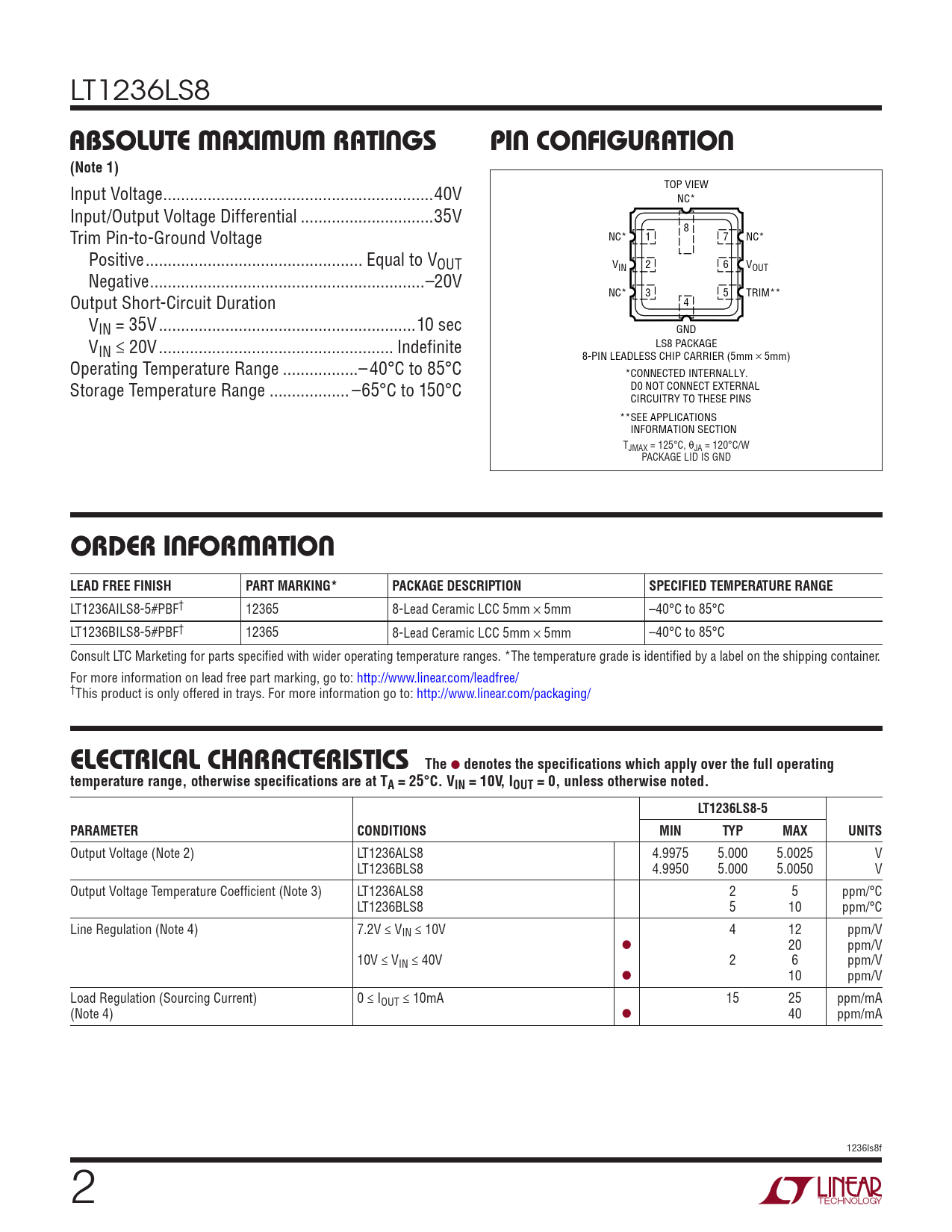

LT1236LS8
absoluTe MaxiMuM raTings pin conFiguraTion (Note 1)
Input Voltage ...40V TOP VIEW NC* Input/Output Voltage Differential ..35V Trim Pin-to-Ground Voltage 8 NC* 1 7 NC* Positive ... Equal to VOUT VIN 2 6 VOUT Negative ..–20V Output Short-Circuit Duration NC* 3 5 TRIM** 4 VIN = 35V ..10 sec GND VIN ≤ 20V ... Indefinite LS8 PACKAGE 8-PIN LEADLESS CHIP CARRIER (5mm × 5mm) Operating Temperature Range ...–40°C to 85°C CONNECTED INTERNALLY. * Storage Temperature Range .. –65°C to 150°C D0 NOT CONNECT EXTERNAL CIRCUITRY TO THESE PINS SEE APPLICATIONS **INFORMATION SECTION TJMAX = 125°C, θJA = 120°C/W PACKAGE LID IS GND
orDer inForMaTion LEAD FREE FINISH PART MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LT1236AILS8-5#PBF† 12365 8-Lead Ceramic LCC 5mm × 5mm –40°C to 85°C LT1236BILS8-5#PBF† 12365 8-Lead Ceramic LCC 5mm × 5mm –40°C to 85°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ †This product is only offered in trays. For more information go to: http://www.linear.com/packaging/
