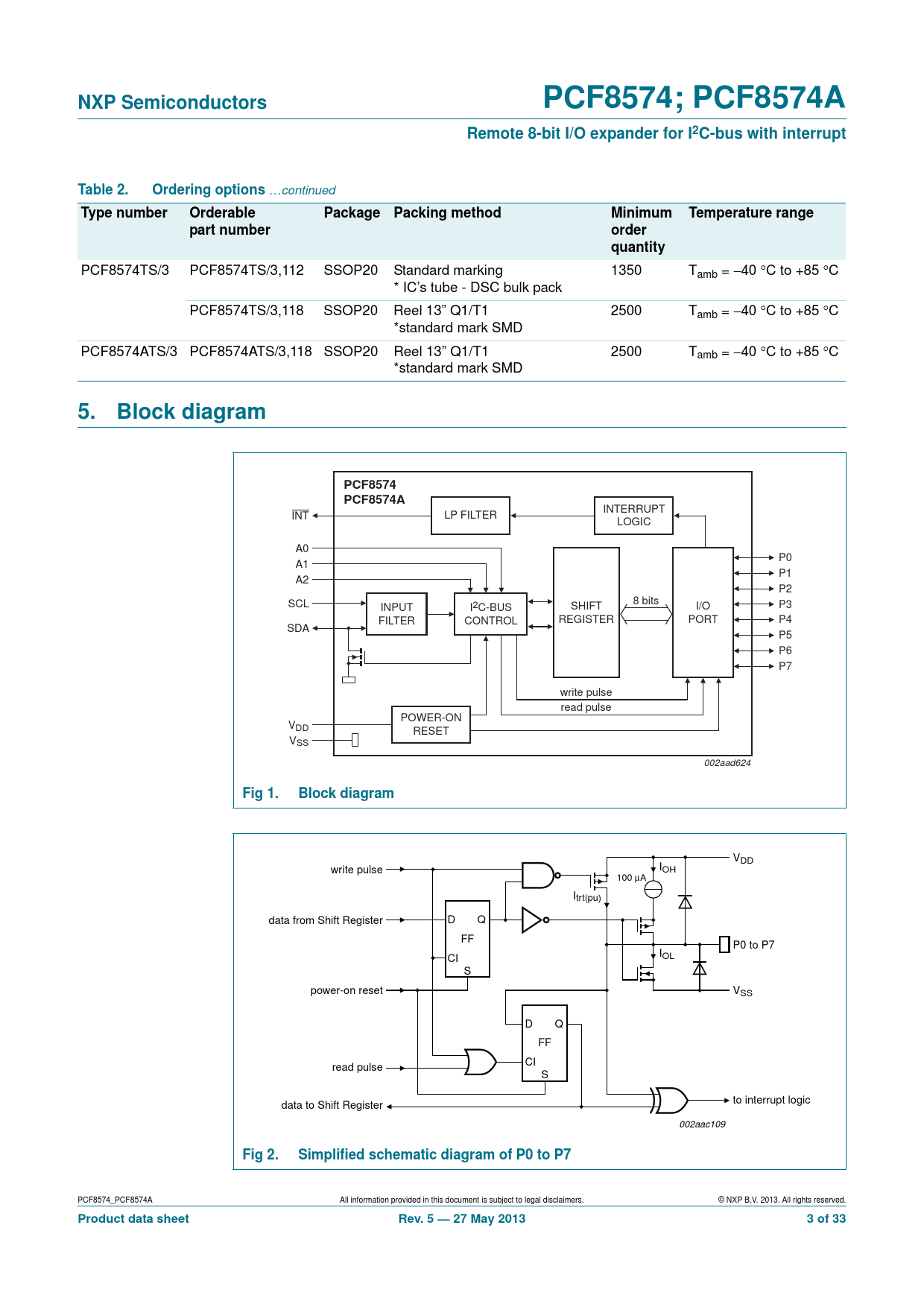

NXP Semiconductors PCF8574; PCF8574A Remote 8-bit I/O expander for I2C-bus with interrupt Table 2. Ordering options
…continued
Type number Orderable Package Packing method Minimum Temperature range part number order quantity
PCF8574TS/3 PCF8574TS/3,112 SSOP20 Standard marking 1350 Tamb = 40 C to +85 C * IC’s tube - DSC bulk pack PCF8574TS/3,118 SSOP20 Reel 13” Q1/T1 2500 Tamb = 40 C to +85 C *standard mark SMD PCF8574ATS/3 PCF8574ATS/3,118 SSOP20 Reel 13” Q1/T1 2500 Tamb = 40 C to +85 C *standard mark SMD
5. Block diagram PCF8574 PCF8574A
INTERRUPT INT LP FILTER LOGIC A0 P0 A1 P1 A2 P2 SCL 8 bits INPUT I2C-BUS SHIFT I/O P3 FILTER CONTROL REGISTER PORT P4 SDA P5 P6 P7 write pulse read pulse POWER-ON VDD RESET VSS 002aad624
Fig 1. Block diagram
VDD write pulse IOH 100 μA Itrt(pu) data from Shift Register D Q FF P0 to P7 CI IOL S power-on reset VSS D Q FF read pulse CI S to interrupt logic data to Shift Register 002aac109
Fig 2. Simplified schematic diagram of P0 to P7
