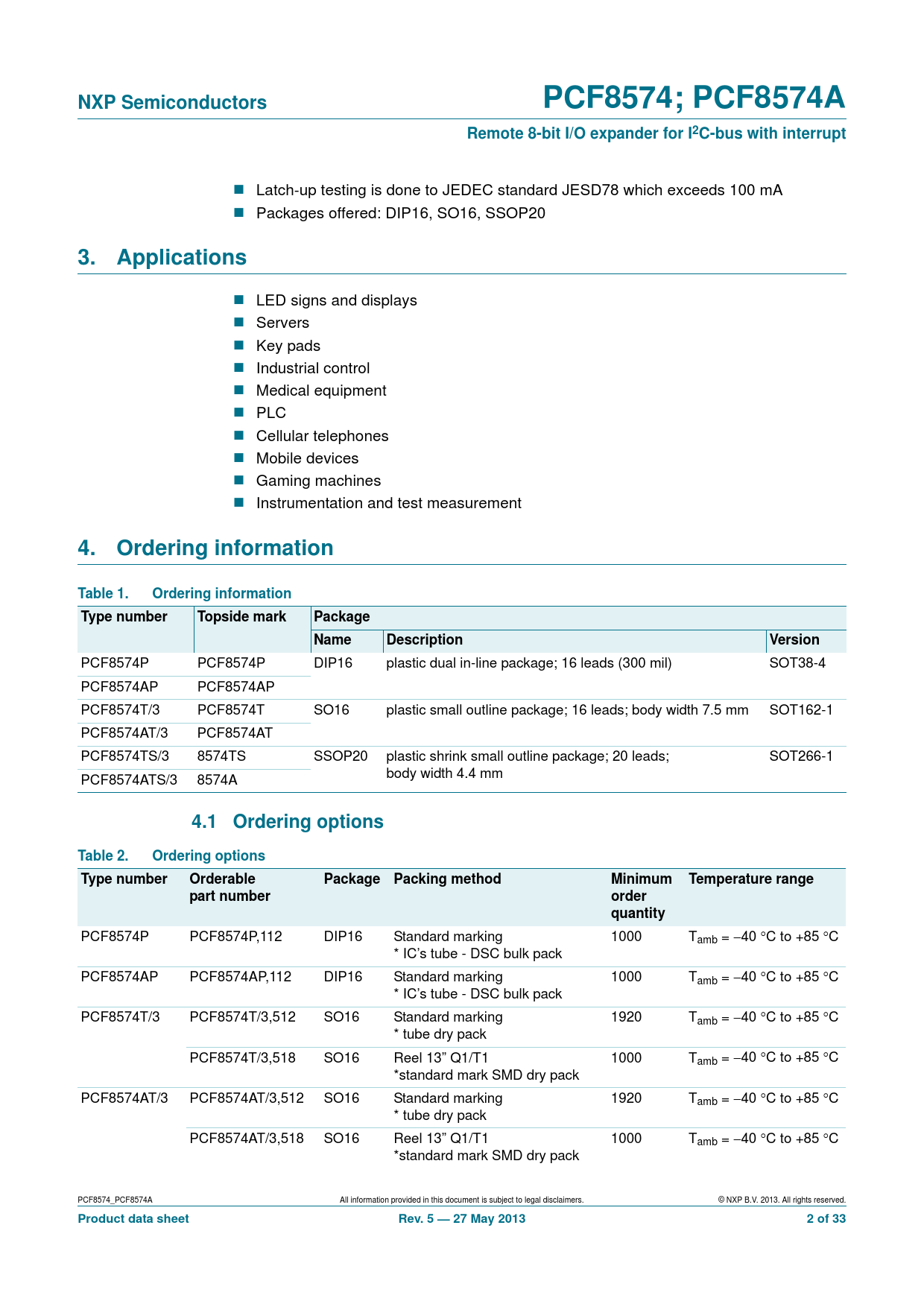

Datasheet PCF8574, PCF8574A (NXP) - 2

NXP Semiconductors PCF8574; PCF8574A Remote 8-bit I/O expander for I2C-bus with interrupt
Latch-up testing is done to JEDEC standard JESD78 which exceeds 100 mA Packages offered: DIP16, SO16, SSOP20
3. Applications
LED signs and displays Servers Key pads Industrial control Medical equipment PLC Cellular telephones Mobile devices Gaming machines Instrumentation and test measurement
4. Ordering information Table 1. Ordering information Type number Topside mark Package Name Description Version
PCF8574P PCF8574P DIP16 plastic dual in-line package; 16 leads (300 mil) SOT38-4 PCF8574AP PCF8574AP PCF8574T/3 PCF8574T SO16 plastic small outline package; 16 leads; body width 7.5 mm SOT162-1 PCF8574AT/3 PCF8574AT PCF8574TS/3 8574TS SSOP20 plastic shrink small outline package; 20 leads; SOT266-1 body width 4.4 mm PCF8574ATS/3 8574A
4.1 Ordering options Table 2. Ordering options Type number Orderable Package Packing method Minimum Temperature range part number order quantity
PCF8574P PCF8574P,112 DIP16 Standard marking 1000 Tamb = 40 C to +85 C * IC’s tube - DSC bulk pack PCF8574AP PCF8574AP,112 DIP16 Standard marking 1000 Tamb = 40 C to +85 C * IC’s tube - DSC bulk pack PCF8574T/3 PCF8574T/3,512 SO16 Standard marking 1920 Tamb = 40 C to +85 C * tube dry pack PCF8574T/3,518 SO16 Reel 13” Q1/T1 1000 Tamb = 40 C to +85 C *standard mark SMD dry pack PCF8574AT/3 PCF8574AT/3,512 SO16 Standard marking 1920 Tamb = 40 C to +85 C * tube dry pack PCF8574AT/3,518 SO16 Reel 13” Q1/T1 1000 Tamb = 40 C to +85 C *standard mark SMD dry pack PCF8574_PCF8574A All information provided in this document is subject to legal disclaimers. © NXP B.V. 2013. All rights reserved.
Product data sheet Rev. 5 — 27 May 2013 2 of 33
