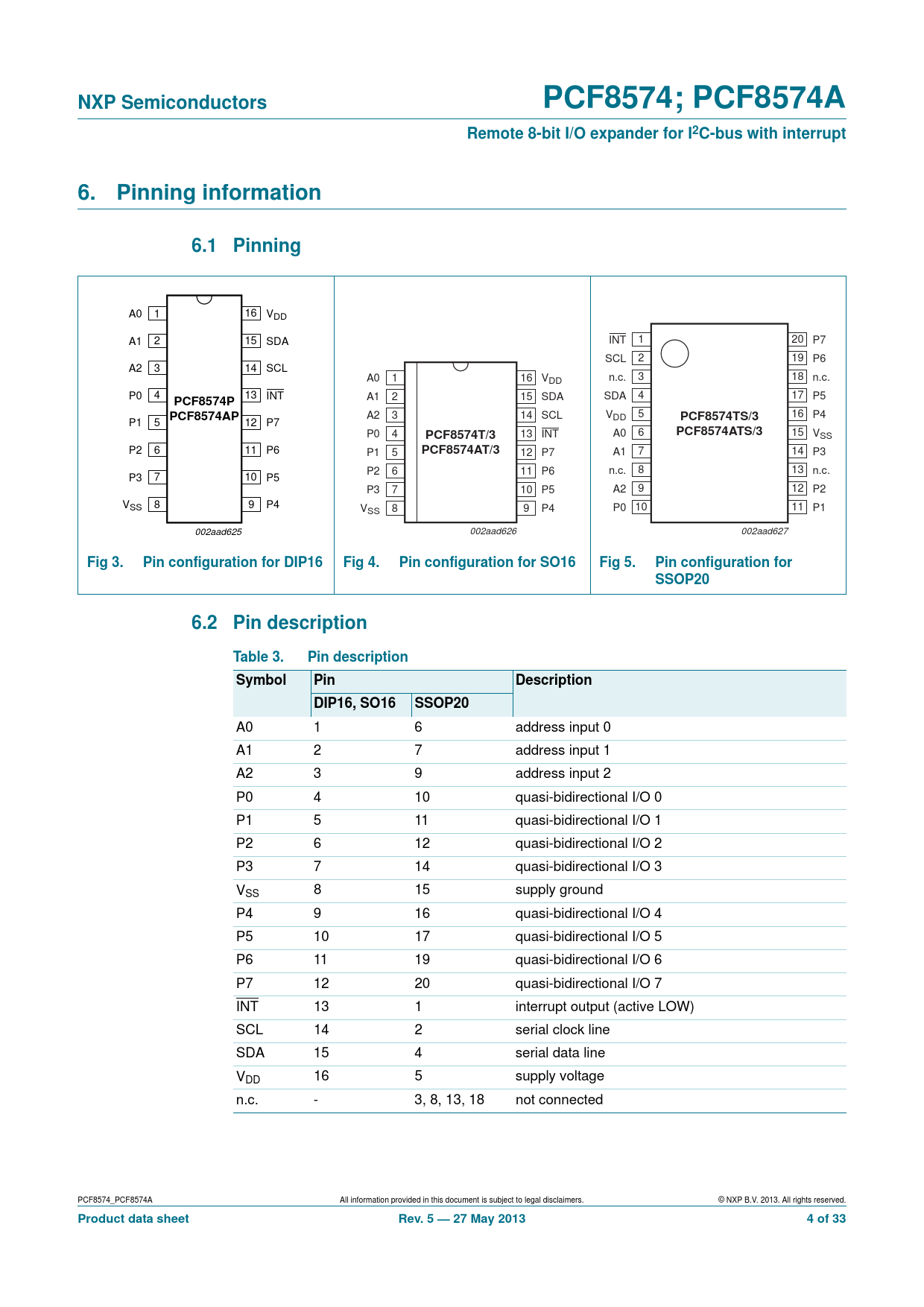

NXP Semiconductors. PCF8574; PCF8574A. Remote 8-bit I/O expander for I2C-bus with interrupt. 6. Pinning. information. 6.1 Pinning
Línea de modelo para esta hoja de datos
- PCF8574T PCF8574T,112 PCF8574T,118 PCF8574T/3,112 PCF8574T/3,118 PCF8574T/3,512 PCF8574T/3,518 PCF8574TS PCF8574TS/3,112 PCF8574TS/3,118 PCF8574TS/F3,112 PCF8574TS/F3,118 PCF8574TS/F3,512 PCF8574TS/F3,518
Versión de texto del documento
NXP Semiconductors PCF8574; PCF8574A Remote 8-bit I/O expander for I2C-bus with interrupt 6. Pinning information 6.1 Pinning
A0 1 16 VDD A1 2 15 SDA INT 1 20 P7 SCL 2 19 P6 A2 3 14 SCL A0 1 16 VDD n.c. 3 18 n.c. P0 4 13 INT SDA 4 17 P5
PCF8574P
A1 2 15 SDA
PCF8574AP
A2 3 14 SCL V 5 DD
PCF8574TS/3
16 P4 P1 5 12 P7 P0 4
PCF8574T/3
13 INT A0 6
PCF8574ATS/3
15 VSS P2 6 11 P6 P1 5
PCF8574AT/3
12 P7 A1 7 14 P3 P2 6 11 P6 n.c. 8 13 n.c. P3 7 10 P5 P3 7 10 P5 A2 9 12 P2 VSS 8 9 P4 VSS 8 9 P4 P0 10 11 P1 002aad625 002aad626 002aad627
Fig 3. Pin configuration for DIP16 Fig 4. Pin configuration for SO16 Fig 5. Pin configuration for SSOP20 6.2 Pin description Table 3. Pin description Symbol Pin Description DIP16, SO16 SSOP20
A0 1 6 address input 0 A1 2 7 address input 1 A2 3 9 address input 2 P0 4 10 quasi-bidirectional I/O 0 P1 5 11 quasi-bidirectional I/O 1 P2 6 12 quasi-bidirectional I/O 2 P3 7 14 quasi-bidirectional I/O 3 VSS 8 15 supply ground P4 9 16 quasi-bidirectional I/O 4 P5 10 17 quasi-bidirectional I/O 5 P6 11 19 quasi-bidirectional I/O 6 P7 12 20 quasi-bidirectional I/O 7 INT 13 1 interrupt output (active LOW) SCL 14 2 serial clock line SDA 15 4 serial data line VDD 16 5 supply voltage n.c. - 3, 8, 13, 18 not connected PCF8574_PCF8574A All information provided in this document is subject to legal disclaimers. © NXP B.V. 2013. All rights reserved.
Product data sheet Rev. 5 — 27 May 2013 4 of 33
