Datasheet GBPC6005, GBPC601, GBPC602, GBPC604, GBPC606, GBPC608, GBPC610 (Vishay) - 2
| Fabricante | Vishay |
| Descripción | Glass Passivated Single-Phase Bridge Rectifier |
| Páginas / Página | 4 / 2 — GBPC6005, GBPC601, GBPC602, GBPC604, GBPC606, GBPC608, GBPC610. … |
| Formato / tamaño de archivo | PDF / 84 Kb |
| Idioma del documento | Inglés |
GBPC6005, GBPC601, GBPC602, GBPC604, GBPC606, GBPC608, GBPC610. ELECTRICAL CHARACTERISTICS. TEST. GBPC. PARAMETER. SYMBOL. UNIT
Línea de modelo para esta hoja de datos
Versión de texto del documento

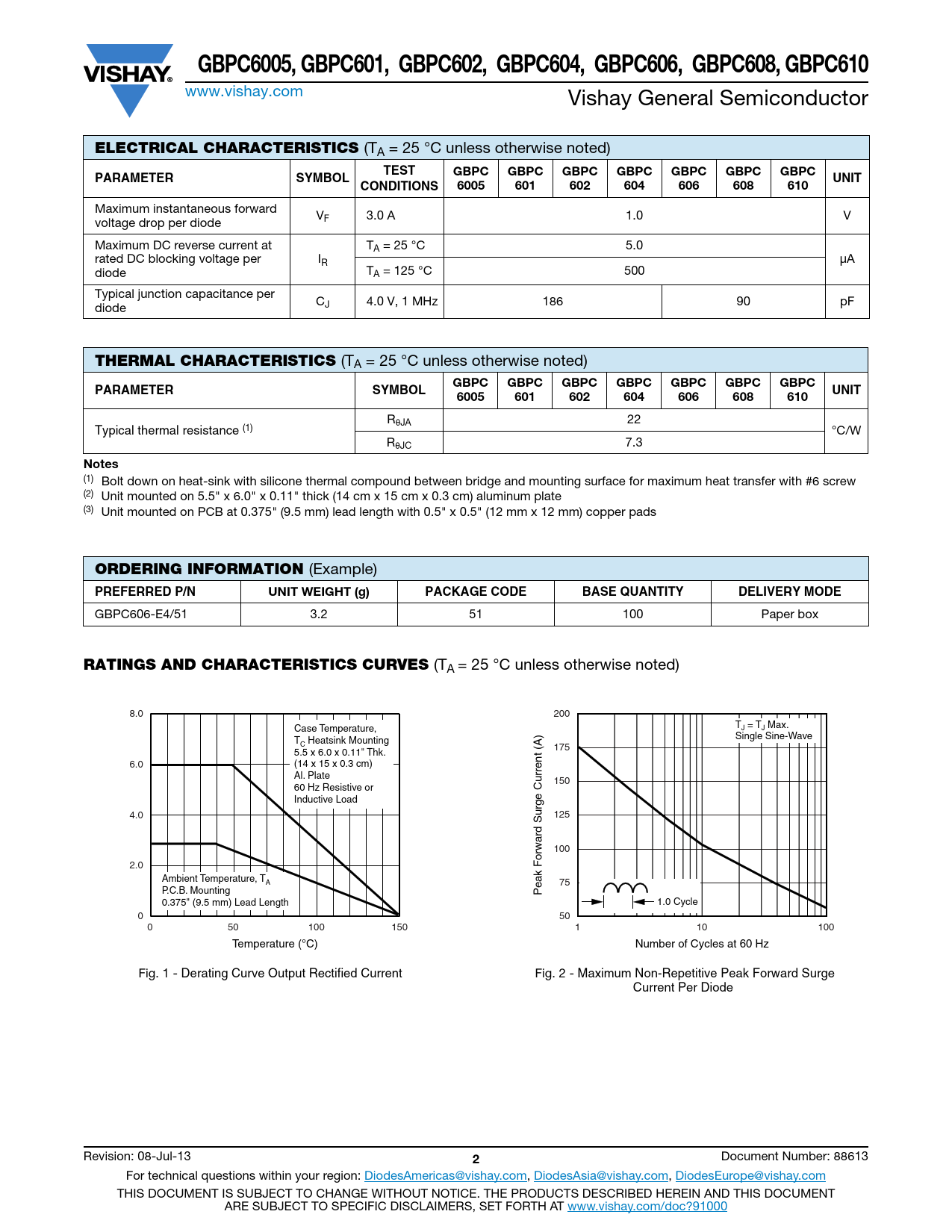

GBPC6005, GBPC601, GBPC602, GBPC604, GBPC606, GBPC608, GBPC610
www.vishay.com Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS
(TA = 25 °C unless otherwise noted)
TEST GBPC GBPC GBPC GBPC GBPC GBPC GBPC PARAMETER SYMBOL UNIT CONDITIONS 6005 601 602 604 606 608 610
Maximum instantaneous forward V voltage drop per diode F 3.0 A 1.0 V Maximum DC reverse current at TA = 25 °C 5.0 rated DC blocking voltage per IR μA diode TA = 125 °C 500 Typical junction capacitance per C diode J 4.0 V, 1 MHz 186 90 pF
THERMAL CHARACTERISTICS
(TA = 25 °C unless otherwise noted)
GBPC GBPC GBPC GBPC GBPC GBPC GBPC PARAMETER SYMBOL UNIT 6005 601 602 604 606 608 610
RJA 22 Typical thermal resistance (1) °C/W RJC 7.3
Notes
(1) Bolt down on heat-sink with silicone thermal compound between bridge and mounting surface for maximum heat transfer with #6 screw (2) Unit mounted on 5.5" x 6.0" x 0.11" thick (14 cm x 15 cm x 0.3 cm) aluminum plate (3) Unit mounted on PCB at 0.375" (9.5 mm) lead length with 0.5" x 0.5" (12 mm x 12 mm) copper pads
ORDERING INFORMATION
(Example)
PREFERRED P/N UNIT WEIGHT (g) PACKAGE CODE BASE QUANTITY DELIVERY MODE
GBPC606-E4/51 3.2 51 100 Paper box
RATINGS AND CHARACTERISTICS CURVES
(TA = 25 °C unless otherwise noted) 8.0 200 Case Temperature, T = T Max. J J T Heatsink Mounting Single Sine-Wave C 175 5.5 x 6.0 x 0.11" Thk. 6.0 (14 x 15 x 0.3 cm) Al. Plate rrent (A) u 150 60 Hz Resistive or Inductive Load rge C 4.0 u 125 ard S 100 rw o 2.0 F k Ambient Temperature, T a A 75 P.C.B. Mounting Pe 0.375" (9.5 mm) Lead Length 1.0 Cycle 0 50 0 50 100 150 1 10 100 Temperature (°C) Number of Cycles at 60 Hz Fig. 1 - Derating Curve Output Rectified Current Fig. 2 - Maximum Non-Repetitive Peak Forward Surge Current Per Diode Revision: 08-Jul-13
2
Document Number: 88613 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
www.vishay.com Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS
(TA = 25 °C unless otherwise noted)
TEST GBPC GBPC GBPC GBPC GBPC GBPC GBPC PARAMETER SYMBOL UNIT CONDITIONS 6005 601 602 604 606 608 610
Maximum instantaneous forward V voltage drop per diode F 3.0 A 1.0 V Maximum DC reverse current at TA = 25 °C 5.0 rated DC blocking voltage per IR μA diode TA = 125 °C 500 Typical junction capacitance per C diode J 4.0 V, 1 MHz 186 90 pF
THERMAL CHARACTERISTICS
(TA = 25 °C unless otherwise noted)
GBPC GBPC GBPC GBPC GBPC GBPC GBPC PARAMETER SYMBOL UNIT 6005 601 602 604 606 608 610
RJA 22 Typical thermal resistance (1) °C/W RJC 7.3
Notes
(1) Bolt down on heat-sink with silicone thermal compound between bridge and mounting surface for maximum heat transfer with #6 screw (2) Unit mounted on 5.5" x 6.0" x 0.11" thick (14 cm x 15 cm x 0.3 cm) aluminum plate (3) Unit mounted on PCB at 0.375" (9.5 mm) lead length with 0.5" x 0.5" (12 mm x 12 mm) copper pads
ORDERING INFORMATION
(Example)
PREFERRED P/N UNIT WEIGHT (g) PACKAGE CODE BASE QUANTITY DELIVERY MODE
GBPC606-E4/51 3.2 51 100 Paper box
RATINGS AND CHARACTERISTICS CURVES
(TA = 25 °C unless otherwise noted) 8.0 200 Case Temperature, T = T Max. J J T Heatsink Mounting Single Sine-Wave C 175 5.5 x 6.0 x 0.11" Thk. 6.0 (14 x 15 x 0.3 cm) Al. Plate rrent (A) u 150 60 Hz Resistive or Inductive Load rge C 4.0 u 125 ard S 100 rw o 2.0 F k Ambient Temperature, T a A 75 P.C.B. Mounting Pe 0.375" (9.5 mm) Lead Length 1.0 Cycle 0 50 0 50 100 150 1 10 100 Temperature (°C) Number of Cycles at 60 Hz Fig. 1 - Derating Curve Output Rectified Current Fig. 2 - Maximum Non-Repetitive Peak Forward Surge Current Per Diode Revision: 08-Jul-13
2
Document Number: 88613 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
