Datasheet GBPC6005, GBPC601, GBPC602, GBPC604, GBPC606, GBPC608, GBPC610 (Vishay)
| Fabricante | Vishay |
| Descripción | Glass Passivated Single-Phase Bridge Rectifier |
| Páginas / Página | 4 / 1 — GBPC6005, GBPC601, GBPC602, GBPC604, GBPC606, GBPC608, GBPC610. Glass … |
| Formato / tamaño de archivo | PDF / 84 Kb |
| Idioma del documento | Inglés |
GBPC6005, GBPC601, GBPC602, GBPC604, GBPC606, GBPC608, GBPC610. Glass Passivated Single-Phase Bridge Rectifier. FEATURES
Línea de modelo para esta hoja de datos
Versión de texto del documento

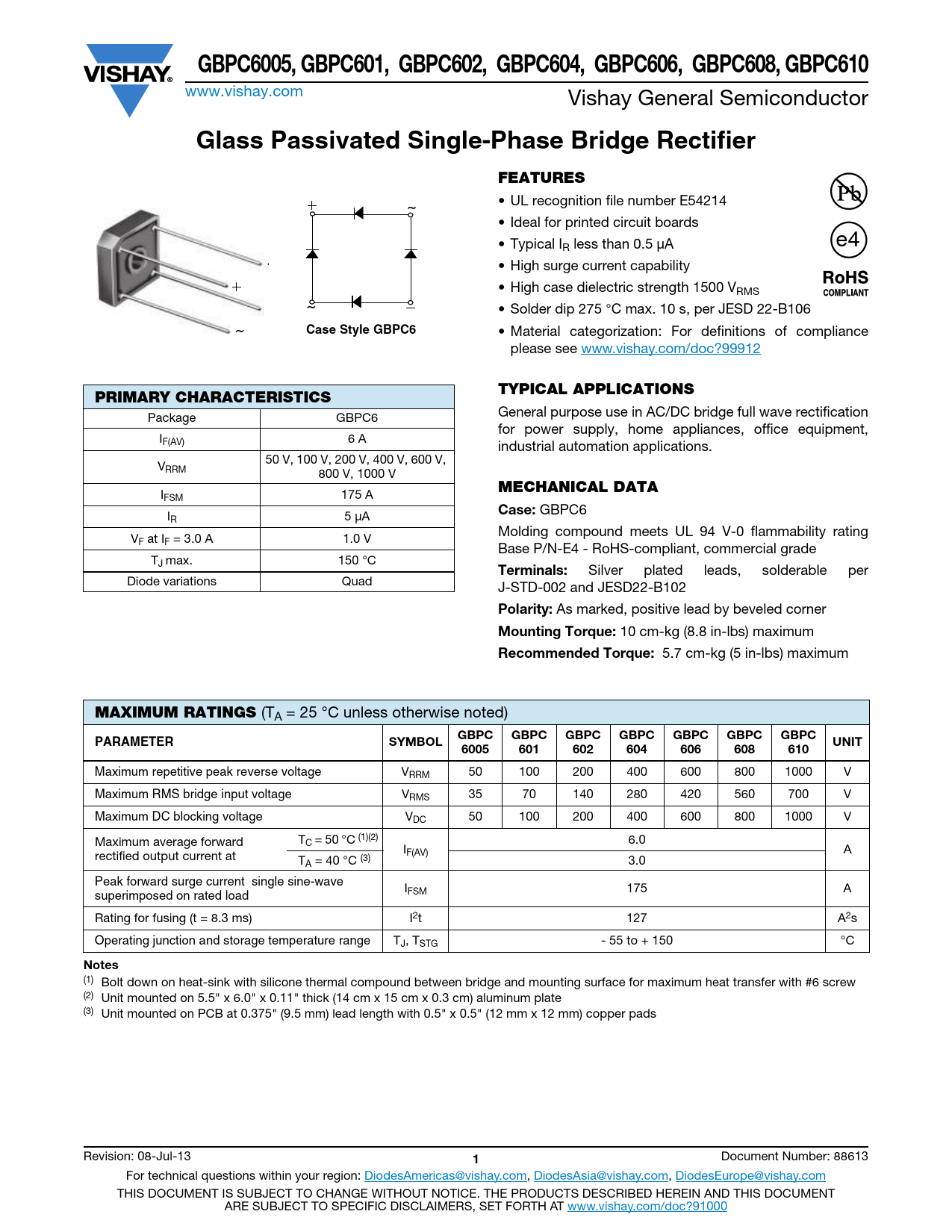

GBPC6005, GBPC601, GBPC602, GBPC604, GBPC606, GBPC608, GBPC610
www.vishay.com Vishay General Semiconductor
Glass Passivated Single-Phase Bridge Rectifier FEATURES
• UL recognition file number E54214 ~ • Ideal for printed circuit boards • Typical I e4 R less than 0.5 μA ~ • High surge current capability • High case dielectric strength 1500 VRMS ~ • Solder dip 275 °C max. 10 s, per JESD 22-B106 ~
Case Style GBPC6
• Material categorization: For definitions of compliance please see www.vishay.com/doc?99912
TYPICAL APPLICATIONS PRIMARY CHARACTERISTICS
General purpose use in AC/DC bridge full wave rectification Package GBPC6 for power supply, home appliances, office equipment, IF(AV) 6 A industrial automation applications. 50 V, 100 V, 200 V, 400 V, 600 V, VRRM 800 V, 1000 V
MECHANICAL DATA
IFSM 175 A
Case:
GBPC6 IR 5 μA Molding compound meets UL 94 V-0 flammability rating VF at IF = 3.0 A 1.0 V Base P/N-E4 - RoHS-compliant, commercial grade TJ max. 150 °C
Terminals:
Silver plated leads, solderable per Diode variations Quad J-STD-002 and JESD22-B102
Polarity:
As marked, positive lead by beveled corner
Mounting Torque:
10 cm-kg (8.8 in-lbs) maximum
Recommended Torque:
5.7 cm-kg (5 in-lbs) maximum
MAXIMUM RATINGS
(TA = 25 °C unless otherwise noted)
GBPC GBPC GBPC GBPC GBPC GBPC GBPC PARAMETER SYMBOL UNIT 6005 601 602 604 606 608 610
Maximum repetitive peak reverse voltage VRRM 50 100 200 400 600 800 1000 V Maximum RMS bridge input voltage VRMS 35 70 140 280 420 560 700 V Maximum DC blocking voltage VDC 50 100 200 400 600 800 1000 V Maximum average forward TC = 50 °C (1)(2) 6.0 I A rectified output current at F(AV) TA = 40 °C (3) 3.0 Peak forward surge current single sine-wave I superimposed on rated load FSM 175 A Rating for fusing (t = 8.3 ms) I2t 127 A2s Operating junction and storage temperature range TJ, TSTG - 55 to + 150 °C
Notes
(1) Bolt down on heat-sink with silicone thermal compound between bridge and mounting surface for maximum heat transfer with #6 screw (2) Unit mounted on 5.5" x 6.0" x 0.11" thick (14 cm x 15 cm x 0.3 cm) aluminum plate (3) Unit mounted on PCB at 0.375" (9.5 mm) lead length with 0.5" x 0.5" (12 mm x 12 mm) copper pads Revision: 08-Jul-13
1
Document Number: 88613 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
