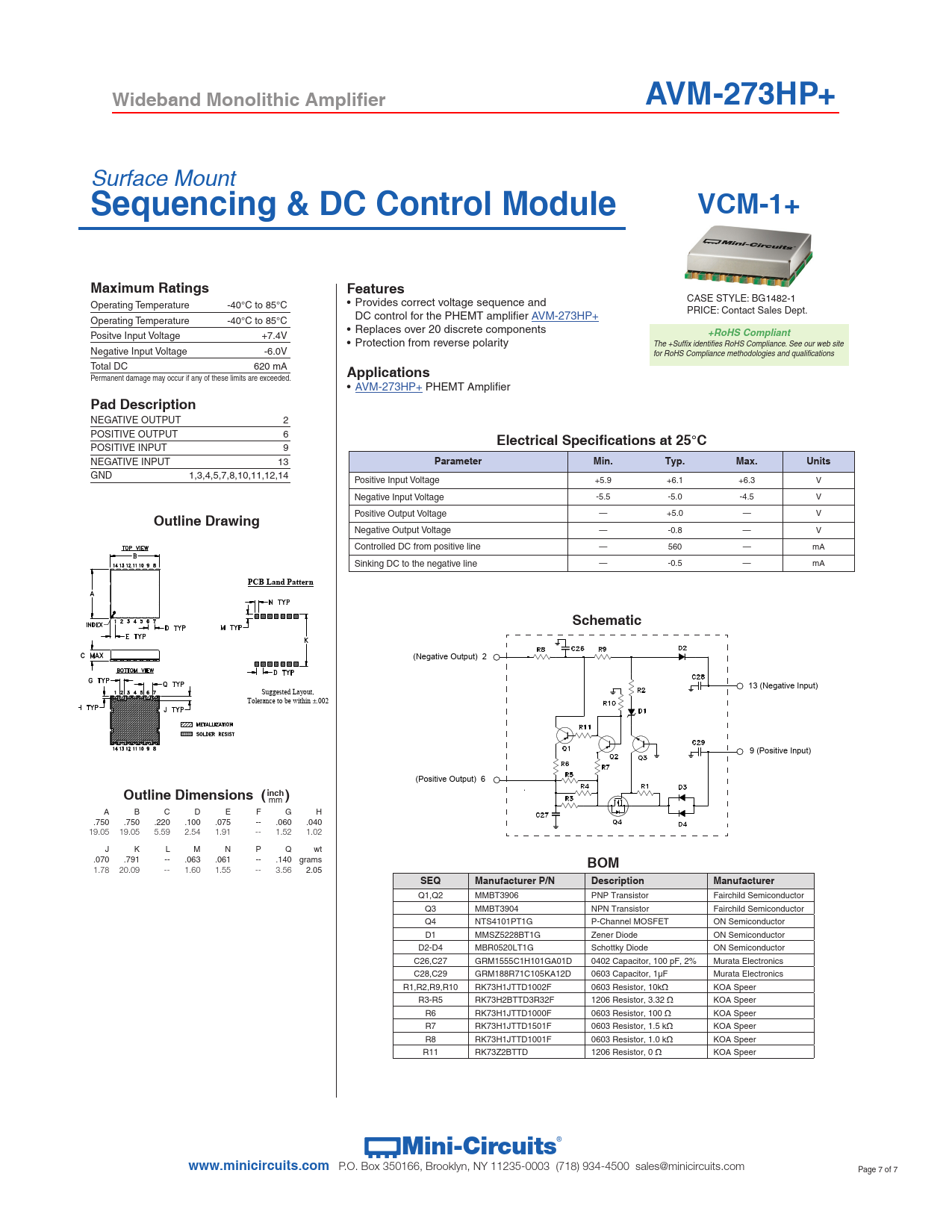

Wideband Monolithic Amplifier AVM-273HP+
Surface Mount
Sequencing & DC Control Module VCM-1+ Maximum Ratings Features
CASE STYLE: BG1482-1 Operating Temperature -40°C to 85°C • Provides correct voltage sequence and PRICE: Contact Sales Dept. Operating Temperature -40°C to 85°C DC control for the PHEMT amplifi er AVM-273HP+ • Replaces over 20 discrete components Positve Input Voltage +7.4V
+RoHS Compliant
• Protection from reverse polarity The +Suffix identifies RoHS Compliance. See our web site Negative Input Voltage -6.0V for RoHS Compliance methodologies and qualifications Total DC 620 mA Permanent damage may occur if any of these limits are exceeded.
Applications
• AVM-273HP+ PHEMT Amplifi er
Pad Description
NEGATIVE OUTPUT 2 POSITIVE OUTPUT 6
Electrical Specifi cations at 25°C
POSITIVE INPUT 9 NEGATIVE INPUT 13
Parameter Min. Typ. Max. Units
GND 1,3,4,5,7,8,10,11,12,14 Positive Input Voltage +5.9 +6.1 +6.3 V Negative Input Voltage -5.5 -5.0 -4.5 V Positive Output Voltage — +5.0 — V
Outline Drawing
Negative Output Voltage — -0.8 — V Controlled DC from positive line — 560 — mA Sinking DC to the negative line — -0.5 — mA
PCB Land Pattern Schematic
(Negative Output) 2 13 (Negative Input) Suggested Layout, Suggested Layout, Tolerance to be within ±.002 Tolerance to be within ±.002 9 (Positive Input) (Positive Output) 6
Outline Dimensions ( ) inch
mm A B C D E F G H .750 .750 .220 .100 .075 -- .060 .040 19.05 19.05 5.59 2.54 1.91 -- 1.52 1.02 J K L M N P Q wt .070 .791 -- .063 .061 -- .140 grams 1.78 20.09 -- 1.60 1.55 -- 3.56 2.05
BOM SEQ Manufacturer P/N Description Manufacturer
Q1,Q2 MMBT3906 PNP Transistor Fairchild Semiconductor Q3 MMBT3904 NPN Transistor Fairchild Semiconductor Q4 NTS4101PT1G P-Channel MOSFET ON Semiconductor D1 MMSZ5228BT1G Zener Diode ON Semiconductor D2-D4 MBR0520LT1G Schottky Diode ON Semiconductor C26,C27 GRM1555C1H101GA01D 0402 Capacitor, 100 pF, 2% Murata Electronics C28,C29 GRM188R71C105KA12D 0603 Capacitor, 1µF Murata Electronics R1,R2,R9,R10 RK73H1JTTD1002F 0603 Resistor, 10kΩ KOA Speer R3-R5 RK73H2BTTD3R32F 1206 Resistor, 3.32 Ω KOA Speer R6 RK73H1JTTD1000F 0603 Resistor, 100 Ω KOA Speer R7 RK73H1JTTD1501F 0603 Resistor, 1.5 kΩ KOA Speer R8 RK73H1JTTD1001F 0603 Resistor, 1.0 kΩ KOA Speer R11 RK73Z2BTTD 1206 Resistor, 0 Ω KOA Speer Notes A. Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document. B. Electrical specifications and performance data contained in this specification document ar Notes e based on Mini-Circuit’s applicable established test performance criteria and measurement instructions. C. The parts cover A. ed by this specification document are subject to Mini-Cir Performance and quality attributes and conditions not expr cuits standard limited warranty and terms and conditions (collectively essly stated in this specification document ar , “Standard Terms”); Purchasers of this part ar e intended to be excluded and do not form a part of this specification document. e entitled to the rights and benefits contained ther B. ein. For a full statement of the Standard Terms and the exclusive rights and r Electrical specifications and performance data contained in this specification document ar emedies ther e based on Mini-Circuit’ eunder, please visit Mini-Circuits’ website at www.minicir s applicable established test performance criteria and measurcuits.com/MCLStor ement instructions. e/terms.jsp C. The parts covered by this specification document are subject to Mini-Cir to the rights and benefits contained therein. For a full statement of the Standard T
Mini-Cir
cuits standar erms and the exclusive rights and r
cuits
d limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled ® emedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp REV. A M148291
www.minicircuits.com Mini-Circuits
® P.O. Box 350166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com VCM-1+ Page 7 of 7
