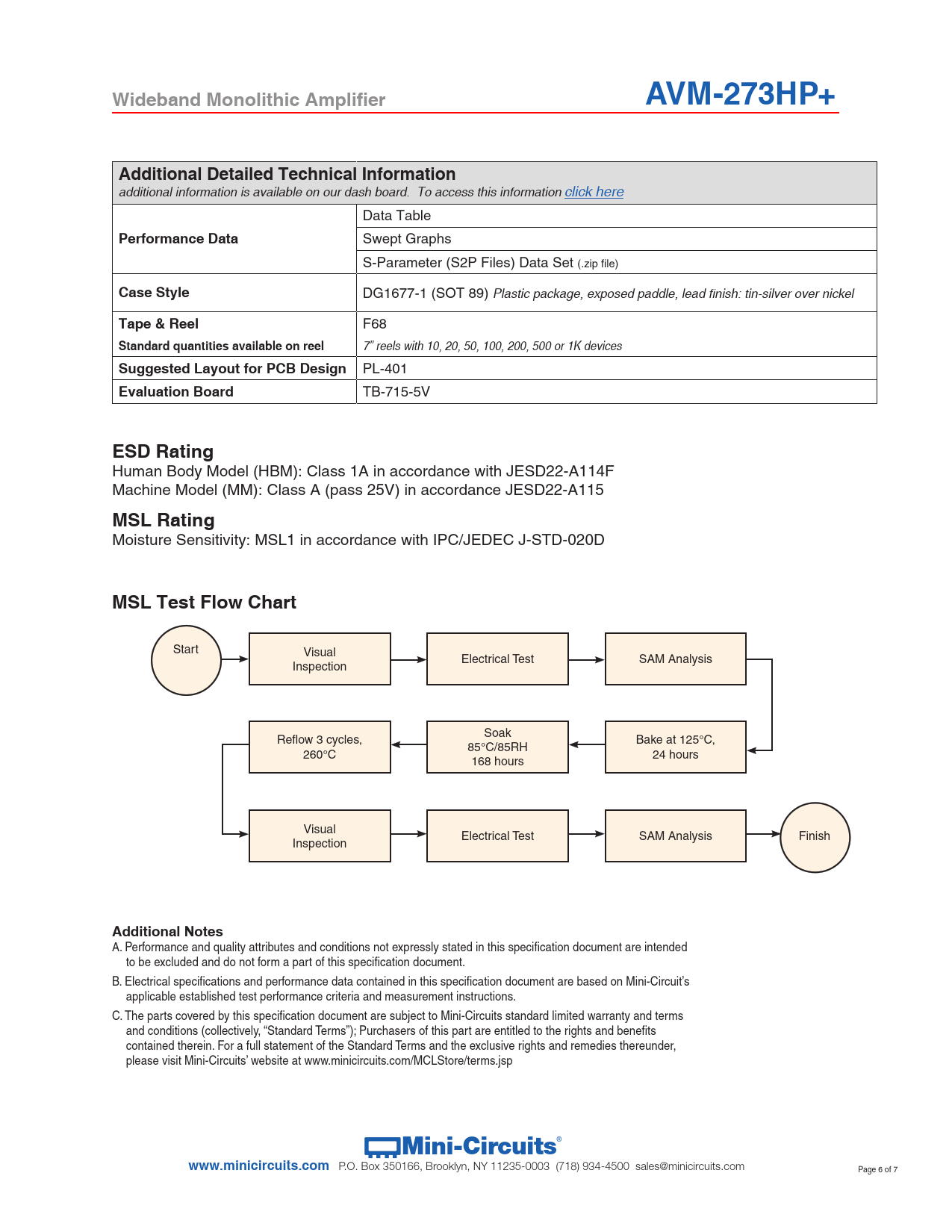

Wideband Monolithic Amplifier AVM-273HP+ Additional Detailed Technical Information
additional information is available on our dash board. To access this information click here Data Table
Performance Data
Swept Graphs S-Parameter (S2P Files) Data Set (.zip file)
Case Style
DG1677-1 (SOT 89) Plastic package, exposed paddle, lead finish: tin-silver over nickel
Tape & Reel
F68
Standard quantities available on reel
7” reels with 10, 20, 50, 100, 200, 500 or 1K devices
Suggested Layout for PCB Design
PL-401
Evaluation Board
TB-715-5V
ESD Rating
Human Body Model (HBM): Class 1A in accordance with JESD22-A114F Machine Model (MM): Class A (pass 25V) in accordance JESD22-A115
MSL Rating
Moisture Sensitivity: MSL1 in accordance with IPC/JEDEC J-STD-020D
MSL Test Flow Chart
Start Visual Electrical Test SAM Analysis Inspection Soak Reflow 3 cycles, Bake at 125°C, 85°C/85RH 260°C 24 hours 168 hours Visual Electrical Test SAM Analysis Finish Inspection
Additional Notes
A. Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document. B. Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions. C. The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp Notes A. Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document. B. Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions. C. The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp
