MMIC Amplifier AVM-273HP+

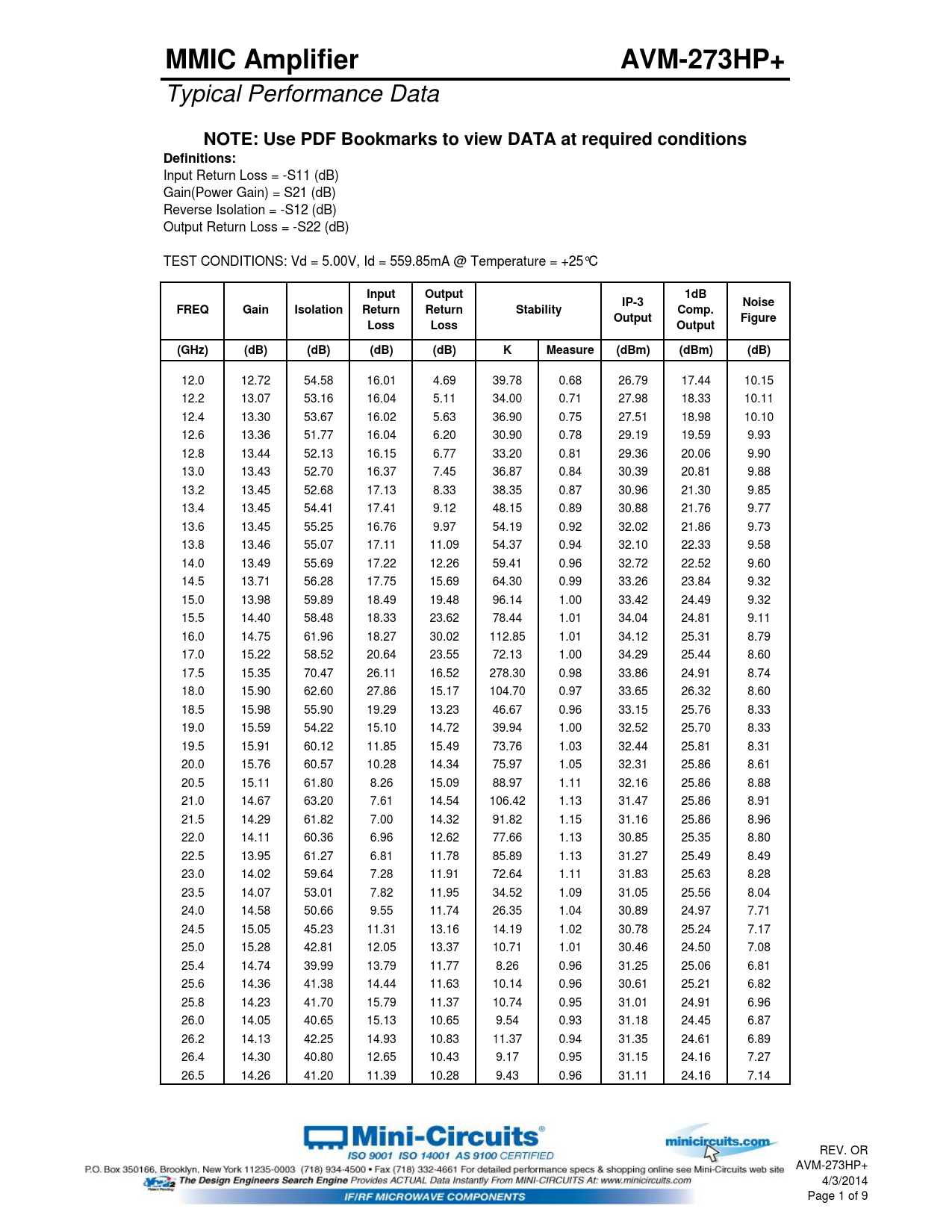

Typical Performance Data
NOTE: Use PDF Bookmarks to view DATA at required conditions Definitions:
Input Return Loss = -S11 (dB) Gain(Power Gain) = S21 (dB) Reverse Isolation = -S12 (dB) Output Return Loss = -S22 (dB) TEST CONDITIONS: Vd = 5.00V, Id = 559.85mA @ Temperature = +25°C
Input Output 1dB IP-3 Noise FREQ Gain Isolation Return Return Stability Comp. Output Figure Loss Loss Output (GHz) (dB) (dB) (dB) (dB) K Measure (dBm) (dBm) (dB)
12.0 12.72 54.58 16.01 4.69 39.78 0.68 26.79 17.44 10.15 12.2 13.07 53.16 16.04 5.11 34.00 0.71 27.98 18.33 10.11 12.4 13.30 53.67 16.02 5.63 36.90 0.75 27.51 18.98 10.10 12.6 13.36 51.77 16.04 6.20 30.90 0.78 29.19 19.59 9.93 12.8 13.44 52.13 16.15 6.77 33.20 0.81 29.36 20.06 9.90 13.0 13.43 52.70 16.37 7.45 36.87 0.84 30.39 20.81 9.88 13.2 13.45 52.68 17.13 8.33 38.35 0.87 30.96 21.30 9.85 13.4 13.45 54.41 17.41 9.12 48.15 0.89 30.88 21.76 9.77 13.6 13.45 55.25 16.76 9.97 54.19 0.92 32.02 21.86 9.73 13.8 13.46 55.07 17.11 11.09 54.37 0.94 32.10 22.33 9.58 14.0 13.49 55.69 17.22 12.26 59.41 0.96 32.72 22.52 9.60 14.5 13.71 56.28 17.75 15.69 64.30 0.99 33.26 23.84 9.32 15.0 13.98 59.89 18.49 19.48 96.14 1.00 33.42 24.49 9.32 15.5 14.40 58.48 18.33 23.62 78.44 1.01 34.04 24.81 9.11 16.0 14.75 61.96 18.27 30.02 112.85 1.01 34.12 25.31 8.79 17.0 15.22 58.52 20.64 23.55 72.13 1.00 34.29 25.44 8.60 17.5 15.35 70.47 26.11 16.52 278.30 0.98 33.86 24.91 8.74 18.0 15.90 62.60 27.86 15.17 104.70 0.97 33.65 26.32 8.60 18.5 15.98 55.90 19.29 13.23 46.67 0.96 33.15 25.76 8.33 19.0 15.59 54.22 15.10 14.72 39.94 1.00 32.52 25.70 8.33 19.5 15.91 60.12 11.85 15.49 73.76 1.03 32.44 25.81 8.31 20.0 15.76 60.57 10.28 14.34 75.97 1.05 32.31 25.86 8.61 20.5 15.11 61.80 8.26 15.09 88.97 1.11 32.16 25.86 8.88 21.0 14.67 63.20 7.61 14.54 106.42 1.13 31.47 25.86 8.91 21.5 14.29 61.82 7.00 14.32 91.82 1.15 31.16 25.86 8.96 22.0 14.11 60.36 6.96 12.62 77.66 1.13 30.85 25.35 8.80 22.5 13.95 61.27 6.81 11.78 85.89 1.13 31.27 25.49 8.49 23.0 14.02 59.64 7.28 11.91 72.64 1.11 31.83 25.63 8.28 23.5 14.07 53.01 7.82 11.95 34.52 1.09 31.05 25.56 8.04 24.0 14.58 50.66 9.55 11.74 26.35 1.04 30.89 24.97 7.71 24.5 15.05 45.23 11.31 13.16 14.19 1.02 30.78 25.24 7.17 25.0 15.28 42.81 12.05 13.37 10.71 1.01 30.46 24.50 7.08 25.4 14.74 39.99 13.79 11.77 8.26 0.96 31.25 25.06 6.81 25.6 14.36 41.38 14.44 11.63 10.14 0.96 30.61 25.21 6.82 25.8 14.23 41.70 15.79 11.37 10.74 0.95 31.01 24.91 6.96 26.0 14.05 40.65 15.13 10.65 9.54 0.93 31.18 24.45 6.87 26.2 14.13 42.25 14.93 10.83 11.37 0.94 31.35 24.61 6.89 26.4 14.30 40.80 12.65 10.43 9.17 0.95 31.15 24.16 7.27 26.5 14.26 41.20 11.39 10.28 9.43 0.96 31.11 24.16 7.14 REV. OR AVM-273HP+ 4/3/2014 Page 1 of 9 Document Outline AVM-273HP+ Data Sheet View Data View Graphs Case Style PCB Layout Eval Board Enviromental Ratings
