Datasheet AD8363 (Analog Devices) - 8
| Fabricante | Analog Devices |
| Descripción | 50 Hz TO 6 GHz 50 dB TruPwr™ Detector |
| Páginas / Página | 30 / 8 — Data Sheet. AD8363. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. Rating. … |
| Revisión | B |
| Formato / tamaño de archivo | PDF / 1.8 Mb |
| Idioma del documento | Inglés |

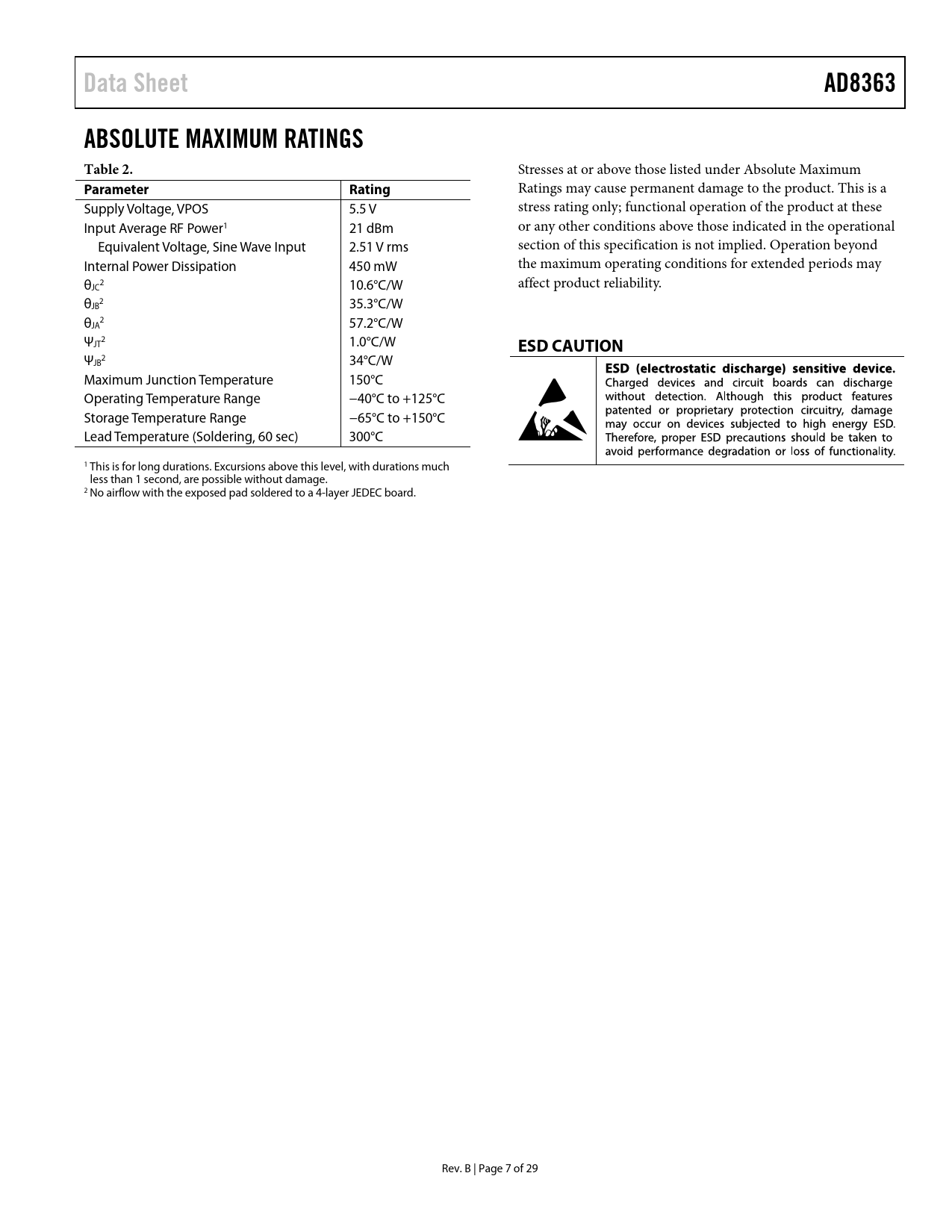

Data Sheet. AD8363. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. Rating. ESD CAUTION
Versión de texto del documento
Data Sheet AD8363 ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a Supply Voltage, VPOS 5.5 V stress rating only; functional operation of the product at these Input Average RF Power1 21 dBm or any other conditions above those indicated in the operational Equivalent Voltage, Sine Wave Input 2.51 V rms section of this specification is not implied. Operation beyond Internal Power Dissipation 450 mW the maximum operating conditions for extended periods may θ 2 JC 10.6°C/W affect product reliability. θ 2 JB 35.3°C/W θ 2 JA 57.2°C/W Ψ 2 JT 1.0°C/W
ESD CAUTION
Ψ 2 JB 34°C/W Maximum Junction Temperature 150°C Operating Temperature Range −40°C to +125°C Storage Temperature Range −65°C to +150°C Lead Temperature (Soldering, 60 sec) 300°C 1 This is for long durations. Excursions above this level, with durations much less than 1 second, are possible without damage. 2 No airflow with the exposed pad soldered to a 4-layer JEDEC board. Rev. B | Page 7 of 29 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION SQUARE LAW DETECTOR AND AMPLITUDE TARGET RF INPUT INTERFACE CHOICE OF RF INPUT PIN SMALL SIGNAL LOOP RESPONSE TEMPERATURE SENSOR INTERFACE VREF INTERFACE TEMPERATURE COMPENSATION INTERFACE POWER-DOWN INTERFACE VSET INTERFACE OUTPUT INTERFACE VTGT INTERFACE MEASUREMENT MODE BASIC CONNECTIONS SYSTEM CALIBRATION AND ERROR CALCULATION OPERATION TO 125°C OUTPUT VOLTAGE SCALING OFFSET COMPENSATION, MINIMUM CLPF, AND MAXIMUM CHPF CAPACITANCE VALUES CHOOSING A VALUE FOR CLPF RF PULSE RESPONSE AND VTGT CONTROLLER MODE BASIC CONNECTIONS CONSTANT OUTPUT POWER OPERATION DESCRIPTION OF RF CHARACTERIZATION EVALUATION AND CHARACTERIZATION CIRCUIT BOARD LAYOUTS ASSEMBLY DRAWINGS OUTLINE DIMENSIONS ORDERING GUIDE
