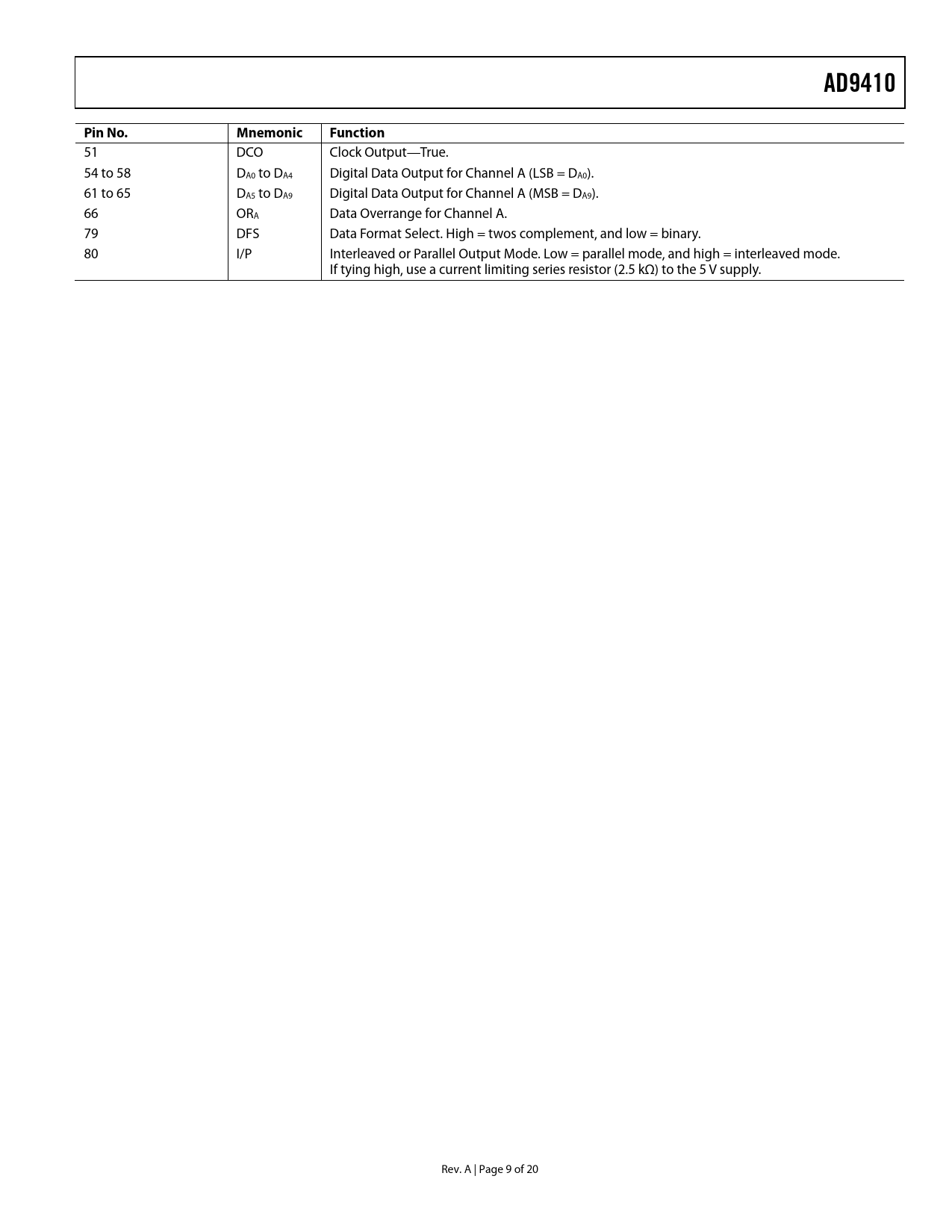

AD9410 Pin No. Mnemonic Function
51 DCO Clock Output—True. 54 to 58 DA0 to DA4 Digital Data Output for Channel A (LSB = DA0). 61 to 65 DA5 to DA9 Digital Data Output for Channel A (MSB = DA9). 66 ORA Data Overrange for Channel A. 79 DFS Data Format Select. High = twos complement, and low = binary. 80 I/P Interleaved or Parallel Output Mode. Low = parallel mode, and high = interleaved mode. If tying high, use a current limiting series resistor (2.5 kΩ) to the 5 V supply. Rev. A | Page 9 of 20 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DC SPECIFICATIONS SWITCHING SPECIFICATIONS DIGITAL SPECIFICATIONS AC SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS EXPLAINATION OF TEST LEVELS Test Level ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TERMINOLOGY EQUIVALENT CIRCUITS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION USING THE AD9410 Clock Input ANALOG INPUT DIGITAL OUTPUTS CLOCK OUTPUTS (DCO, ) VOLTAGE REFERENCE TIMING DATA SYNC (DS) OUTLINE DIMENSIONS ORDERING GUIDE
