AD9410. ABSOLUTE MAXIMUM RATINGS. Table 5. Parameter Rating. EXPLAINATION OF TEST LEVELS. Test Level. ESD CAUTION
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 8

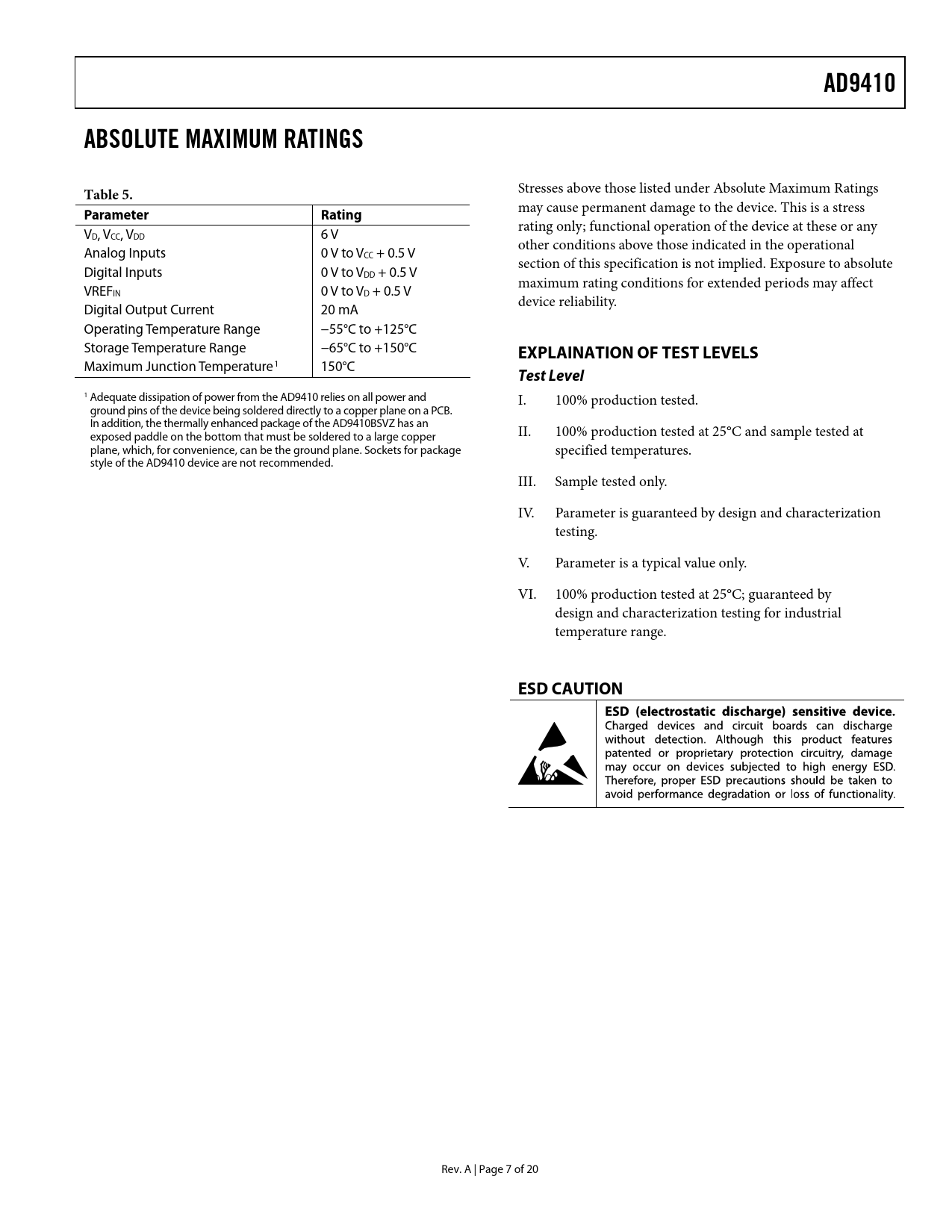

AD9410 ABSOLUTE MAXIMUM RATINGS Table 5.
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress
Parameter Rating
rating only; functional operation of the device at these or any VD, VCC, VDD 6 V other conditions above those indicated in the operational Analog Inputs 0 V to VCC + 0.5 V section of this specification is not implied. Exposure to absolute Digital Inputs 0 V to VDD + 0.5 V maximum rating conditions for extended periods may affect VREFIN 0 V to VD + 0.5 V device reliability. Digital Output Current 20 mA Operating Temperature Range −55°C to +125°C Storage Temperature Range −65°C to +150°C
EXPLAINATION OF TEST LEVELS
Maximum Junction Temperature1 150°C
Test Level
1 Adequate dissipation of power from the AD9410 relies on all power and I. 100% production tested. ground pins of the device being soldered directly to a copper plane on a PCB. In addition, the thermally enhanced package of the AD9410BSVZ has an exposed paddle on the bottom that must be soldered to a large copper II. 100% production tested at 25°C and sample tested at plane, which, for convenience, can be the ground plane. Sockets for package specified temperatures. style of the AD9410 device are not recommended. III. Sample tested only. IV. Parameter is guaranteed by design and characterization testing. V. Parameter is a typical value only. VI. 100% production tested at 25°C; guaranteed by design and characterization testing for industrial temperature range.
ESD CAUTION
