The. denotes the specifications which apply over the full operating
Línea de modelo para esta hoja de datos
Versión de texto del documento

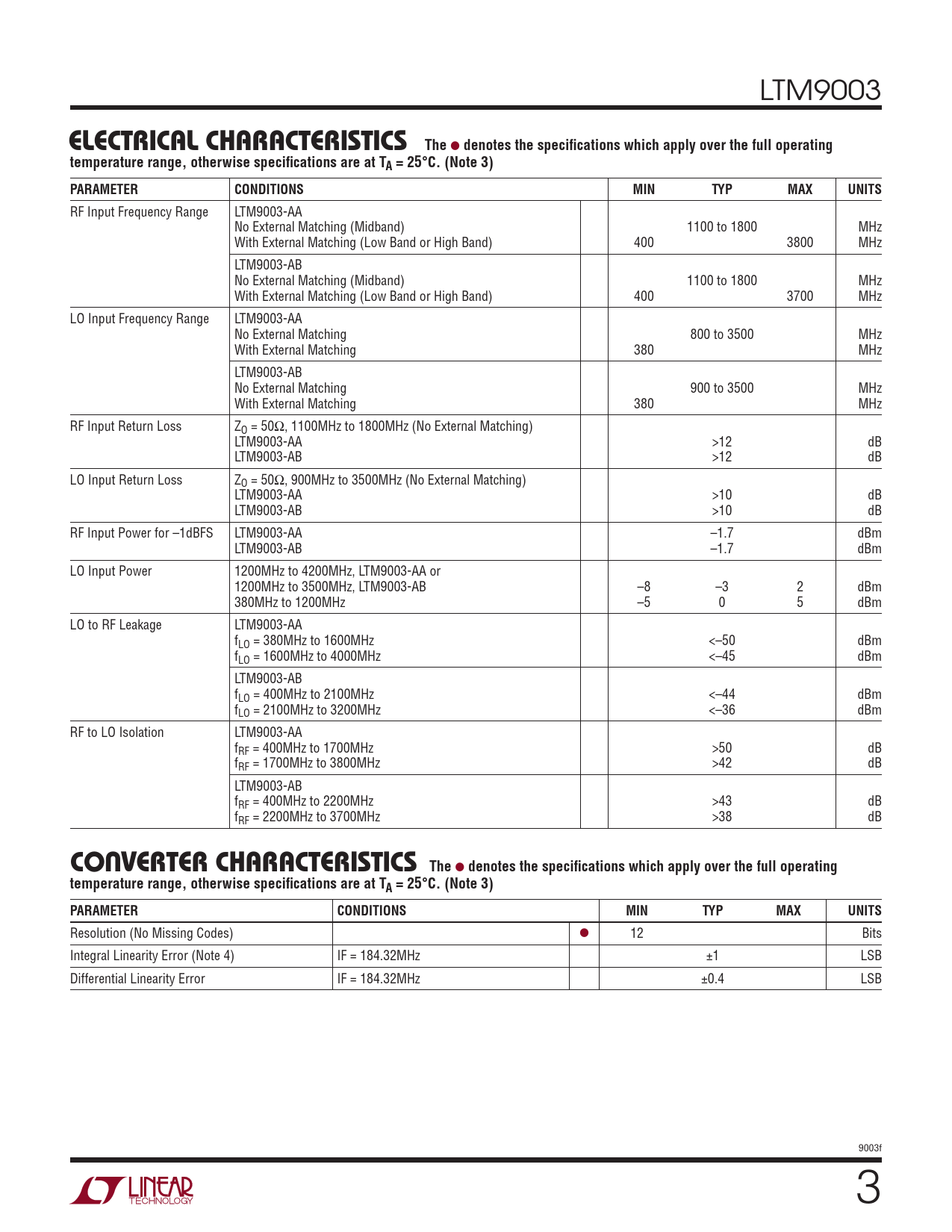

LTM9003 e
lecTrical characTerisTics
The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 3) PARAMETER CONDITIONS MIN TYP MAX UNITS
RF Input Frequency Range LTM9003-AA No External Matching (Midband) 1100 to 1800 MHz With External Matching (Low Band or High Band) 400 3800 MHz LTM9003-AB No External Matching (Midband) 1100 to 1800 MHz With External Matching (Low Band or High Band) 400 3700 MHz LO Input Frequency Range LTM9003-AA No External Matching 800 to 3500 MHz With External Matching 380 MHz LTM9003-AB No External Matching 900 to 3500 MHz With External Matching 380 MHz RF Input Return Loss ZO = 50Ω, 1100MHz to 1800MHz (No External Matching) LTM9003-AA >12 dB LTM9003-AB >12 dB LO Input Return Loss ZO = 50Ω, 900MHz to 3500MHz (No External Matching) LTM9003-AA >10 dB LTM9003-AB >10 dB RF Input Power for –1dBFS LTM9003-AA –1.7 dBm LTM9003-AB –1.7 dBm LO Input Power 1200MHz to 4200MHz, LTM9003-AA or 1200MHz to 3500MHz, LTM9003-AB –8 –3 2 dBm 380MHz to 1200MHz –5 0 5 dBm LO to RF Leakage LTM9003-AA fLO = 380MHz to 1600MHz <–50 dBm fLO = 1600MHz to 4000MHz <–45 dBm LTM9003-AB fLO = 400MHz to 2100MHz <–44 dBm fLO = 2100MHz to 3200MHz <–36 dBm RF to LO Isolation LTM9003-AA fRF = 400MHz to 1700MHz >50 dB fRF = 1700MHz to 3800MHz >42 dB LTM9003-AB fRF = 400MHz to 2200MHz >43 dB fRF = 2200MHz to 3700MHz >38 dB c
onverTer characTerisTics
The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 3) PARAMETER CONDITIONS MIN TYP MAX UNITS
Resolution (No Missing Codes) l 12 Bits Integral Linearity Error (Note 4) IF = 184.32MHz ±1 LSB Differential Linearity Error IF = 184.32MHz ±0.4 LSB 9003f Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Converter Characteristics Filter Characteristics Dynamic Accuracy Digital Inputs and Outputs Power Requirements Timing Characteristics Timing Diagram Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Package Description Related Parts
