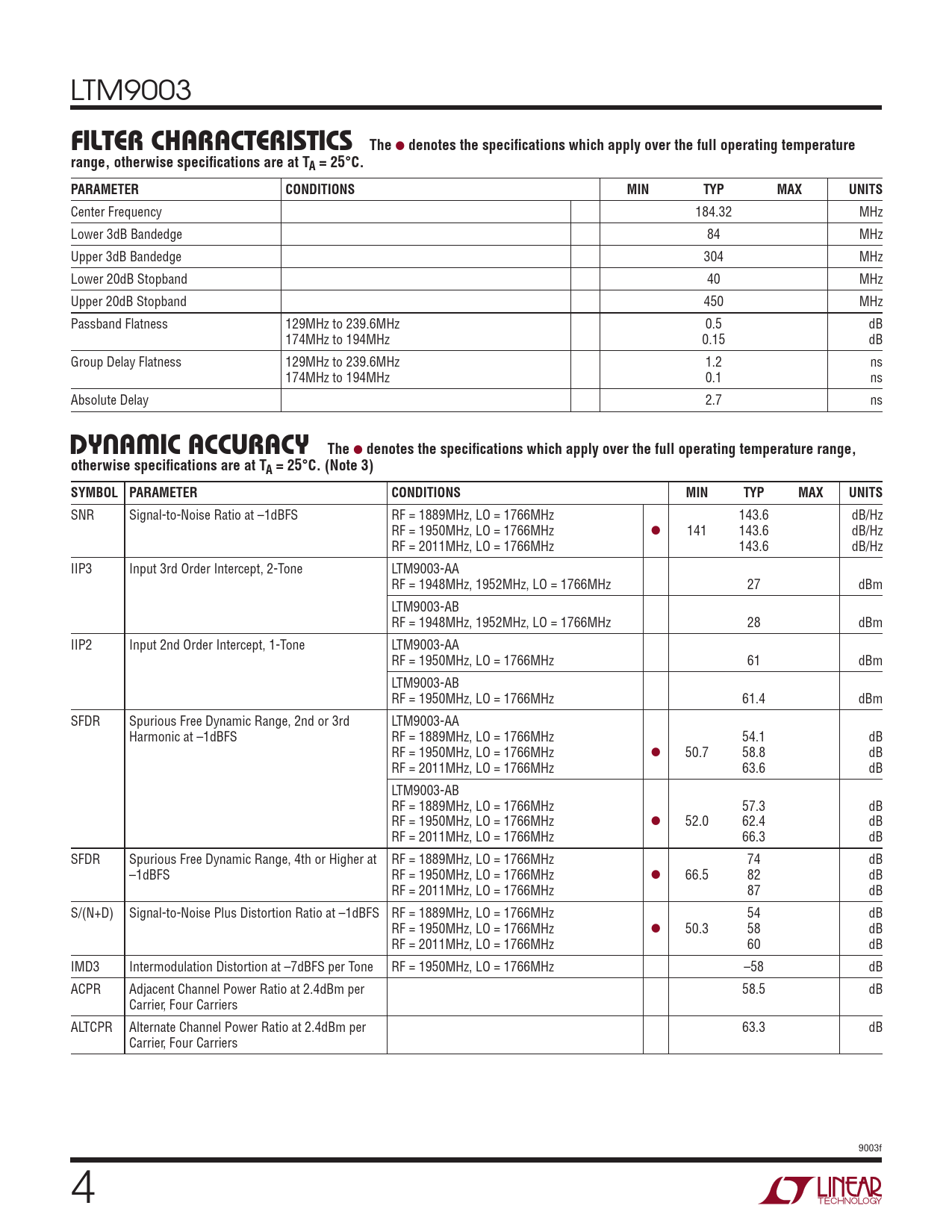

LTM9003 F ilTer characTerisTics
The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. PARAMETER CONDITIONS MIN TYP MAX UNITS
Center Frequency 184.32 MHz Lower 3dB Bandedge 84 MHz Upper 3dB Bandedge 304 MHz Lower 20dB Stopband 40 MHz Upper 20dB Stopband 450 MHz Passband Flatness 129MHz to 239.6MHz 0.5 dB 174MHz to 194MHz 0.15 dB Group Delay Flatness 129MHz to 239.6MHz 1.2 ns 174MHz to 194MHz 0.1 ns Absolute Delay 2.7 ns D ynaMic accuracy
The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 3) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
SNR Signal-to-Noise Ratio at –1dBFS RF = 1889MHz, LO = 1766MHz 143.6 dB/Hz RF = 1950MHz, LO = 1766MHz l 141 143.6 dB/Hz RF = 2011MHz, LO = 1766MHz 143.6 dB/Hz IIP3 Input 3rd Order Intercept, 2-Tone LTM9003-AA RF = 1948MHz, 1952MHz, LO = 1766MHz 27 dBm LTM9003-AB RF = 1948MHz, 1952MHz, LO = 1766MHz 28 dBm IIP2 Input 2nd Order Intercept, 1-Tone LTM9003-AA RF = 1950MHz, LO = 1766MHz 61 dBm LTM9003-AB RF = 1950MHz, LO = 1766MHz 61.4 dBm SFDR Spurious Free Dynamic Range, 2nd or 3rd LTM9003-AA Harmonic at –1dBFS RF = 1889MHz, LO = 1766MHz 54.1 dB RF = 1950MHz, LO = 1766MHz l 50.7 58.8 dB RF = 2011MHz, LO = 1766MHz 63.6 dB LTM9003-AB RF = 1889MHz, LO = 1766MHz 57.3 dB RF = 1950MHz, LO = 1766MHz l 52.0 62.4 dB RF = 2011MHz, LO = 1766MHz 66.3 dB SFDR Spurious Free Dynamic Range, 4th or Higher at RF = 1889MHz, LO = 1766MHz 74 dB –1dBFS RF = 1950MHz, LO = 1766MHz l 66.5 82 dB RF = 2011MHz, LO = 1766MHz 87 dB S/(N+D) Signal-to-Noise Plus Distortion Ratio at –1dBFS RF = 1889MHz, LO = 1766MHz 54 dB RF = 1950MHz, LO = 1766MHz l 50.3 58 dB RF = 2011MHz, LO = 1766MHz 60 dB IMD3 Intermodulation Distortion at –7dBFS per Tone RF = 1950MHz, LO = 1766MHz –58 dB ACPR Adjacent Channel Power Ratio at 2.4dBm per 58.5 dB Carrier, Four Carriers ALTCPR Alternate Channel Power Ratio at 2.4dBm per 63.3 dB Carrier, Four Carriers 9003f Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Converter Characteristics Filter Characteristics Dynamic Accuracy Digital Inputs and Outputs Power Requirements Timing Characteristics Timing Diagram Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Package Description Related Parts
