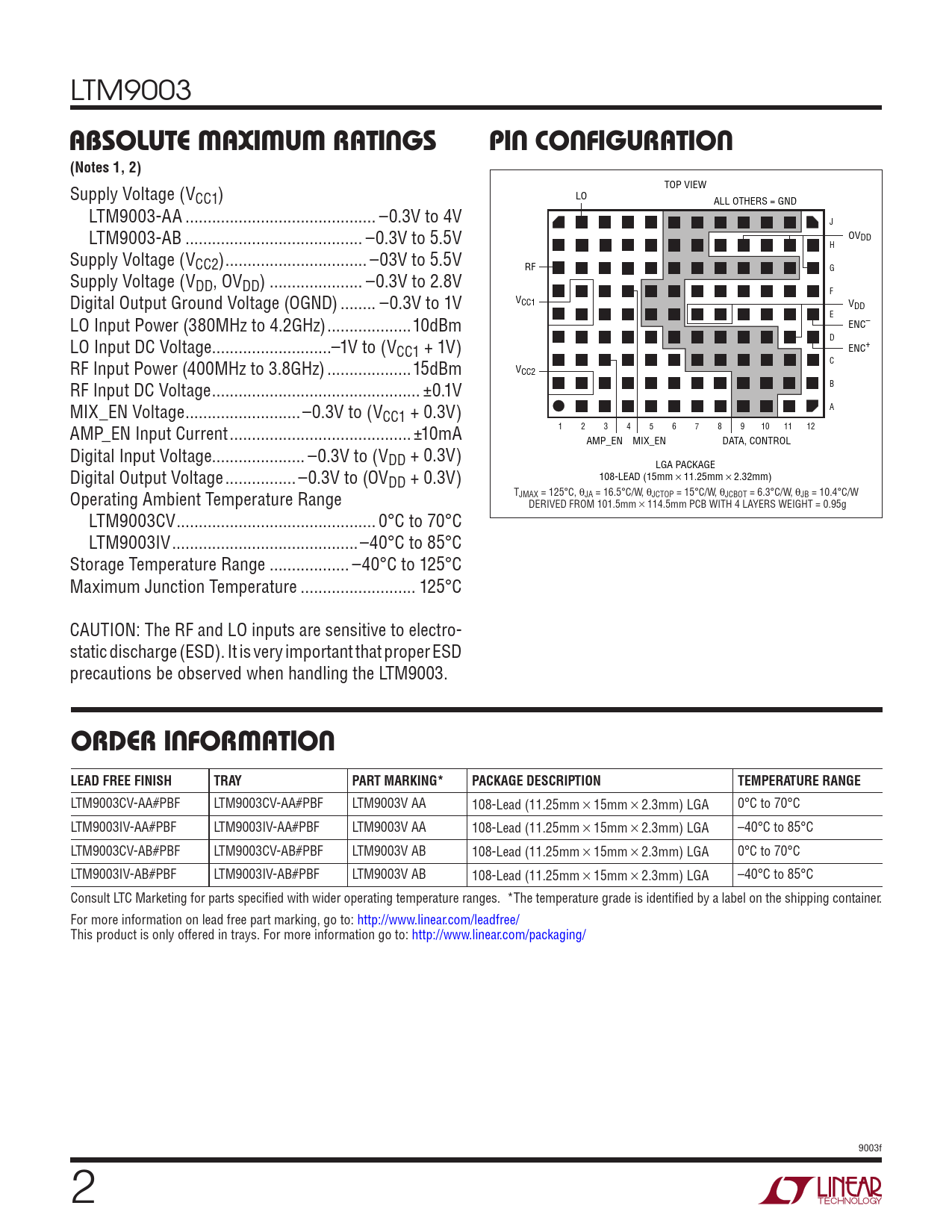

LTM9003 absoluTe MaxiMuM raTings pin conFiguraTion
(Notes 1, 2)
Supply Voltage (V TOP VIEW CC1) LO ALL OTHERS = GND LTM9003-AA ... –0.3V to 4V J LTM9003-AB .. –0.3V to 5.5V OVDD H Supply Voltage (VCC2) .. –03V to 5.5V RF G Supply Voltage (VDD, OVDD) ... –0.3V to 2.8V Digital Output Ground Voltage (OGND) .. –0.3V to 1V F VCC1 VDD LO Input Power (380MHz to 4.2GHz) ...10dBm E ENC– LO Input DC Voltage...–1V to (V D CC1 + 1V) ENC+ RF Input Power (400MHz to 3.8GHz) ...15dBm C VCC2 RF Input DC Voltage ... ±0.1V B MIX_EN Voltage ..–0.3V to (V A CC1 + 0.3V) AMP_EN Input Current ...±10mA 1 2 3 4 5 6 7 8 9 10 11 12 AMP_EN MIX_EN DATA, CONTROL Digital Input Voltage... –0.3V to (VDD + 0.3V) LGA PACKAGE Digital Output Voltage ..–0.3V to (OVDD + 0.3V) 108-LEAD (15mm s 11.25mm s 2.32mm) Operating Ambient Temperature Range TJMAX = 125°C, θJA = 16.5°C/W, θJCTOP = 15°C/W, θJCBOT = 6.3°C/W, θJB = 10.4°C/W DERIVED FROM 101.5mm × 114.5mm PCB WITH 4 LAYERS WEIGHT = 0.95g LTM9003CV ... 0°C to 70°C LTM9003IV ..–40°C to 85°C Storage Temperature Range .. –40°C to 125°C Maximum Junction Temperature .. 125°C CAUTION: The RF and LO inputs are sensitive to electro- static discharge (ESD). It is very important that proper ESD precautions be observed when handling the LTM9003. orDer inForMaTion
LEAD FREE FINISH TRAY PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTM9003CV-AA#PBF LTM9003CV-AA#PBF LTM9003V AA 108-Lead (11.25mm × 15mm × 2.3mm) LGA 0°C to 70°C LTM9003IV-AA#PBF LTM9003IV-AA#PBF LTM9003V AA 108-Lead (11.25mm × 15mm × 2.3mm) LGA –40°C to 85°C LTM9003CV-AB#PBF LTM9003CV-AB#PBF LTM9003V AB 108-Lead (11.25mm × 15mm × 2.3mm) LGA 0°C to 70°C LTM9003IV-AB#PBF LTM9003IV-AB#PBF LTM9003V AB 108-Lead (11.25mm × 15mm × 2.3mm) LGA –40°C to 85°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ This product is only offered in trays. For more information go to: http://www.linear.com/packaging/ 9003f Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Converter Characteristics Filter Characteristics Dynamic Accuracy Digital Inputs and Outputs Power Requirements Timing Characteristics Timing Diagram Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Package Description Related Parts
