Datasheet ATtiny13A. Appendix B. Specification at 125°C (Microchip) - 8
| Fabricante | Microchip |
| Descripción | 8-bit AVR Microcontroller with 1K Bytes In-System Programmable Flash |
| Páginas / Página | 38 / 8 — Figure 2-4. 2.2. Current Consumption in Idle Mode. Figure 2-5. ATtiny13A |
| Formato / tamaño de archivo | PDF / 1.7 Mb |
| Idioma del documento | Inglés |
Figure 2-4. 2.2. Current Consumption in Idle Mode. Figure 2-5. ATtiny13A
Línea de modelo para esta hoja de datos
Versión de texto del documento
Figure 2-4.

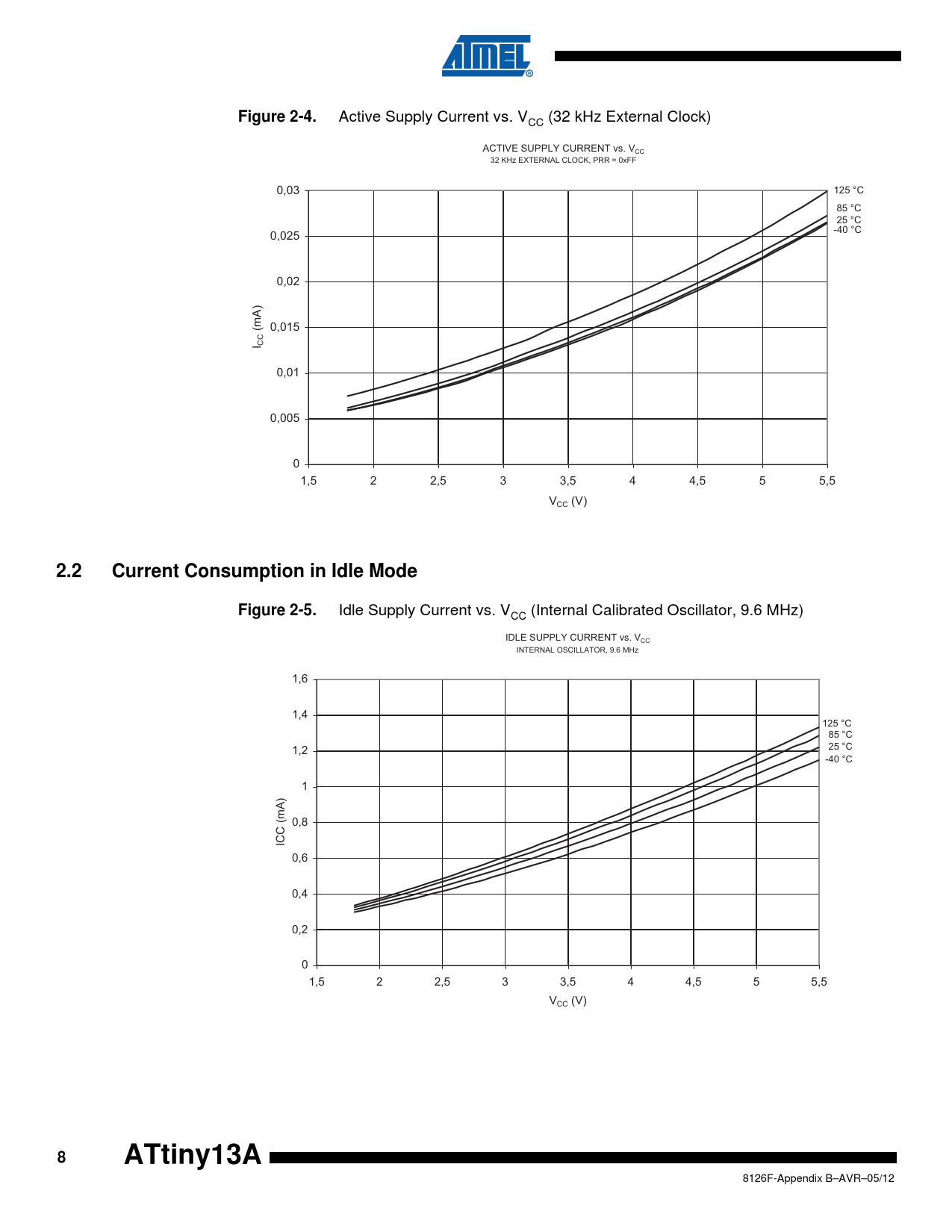

Active Supply Current vs. V (32 kHz External Clock) CC ACTIVE SUPPLY CURRENT vs. VCC 32 KHz EXTERNAL CLOCK, PRR = 0xFF 0,03 125 °C 85 °C 25 °C -40 °C 0,025 0,02 0,015 (mA) I CC 0,01 0,005 0 1,5 2 2,5 3 3,5 4 4,5 5 5,5 VCC (V)
2.2 Current Consumption in Idle Mode Figure 2-5.
Idle Supply Current vs. V (Internal Calibrated Oscillator, 9.6 MHz) CC IDLE SUPPLY CURRENT vs. VCC INTERNAL OSCILLATOR, 9.6 MHz 1,6 1,4 125 °C 85 °C 25 °C 1,2 -40 °C 1 0,8 ICC (mA) 0,6 0,4 0,2 0 1,5 2 2,5 3 3,5 4 4,5 5 5,5 VCC (V)
