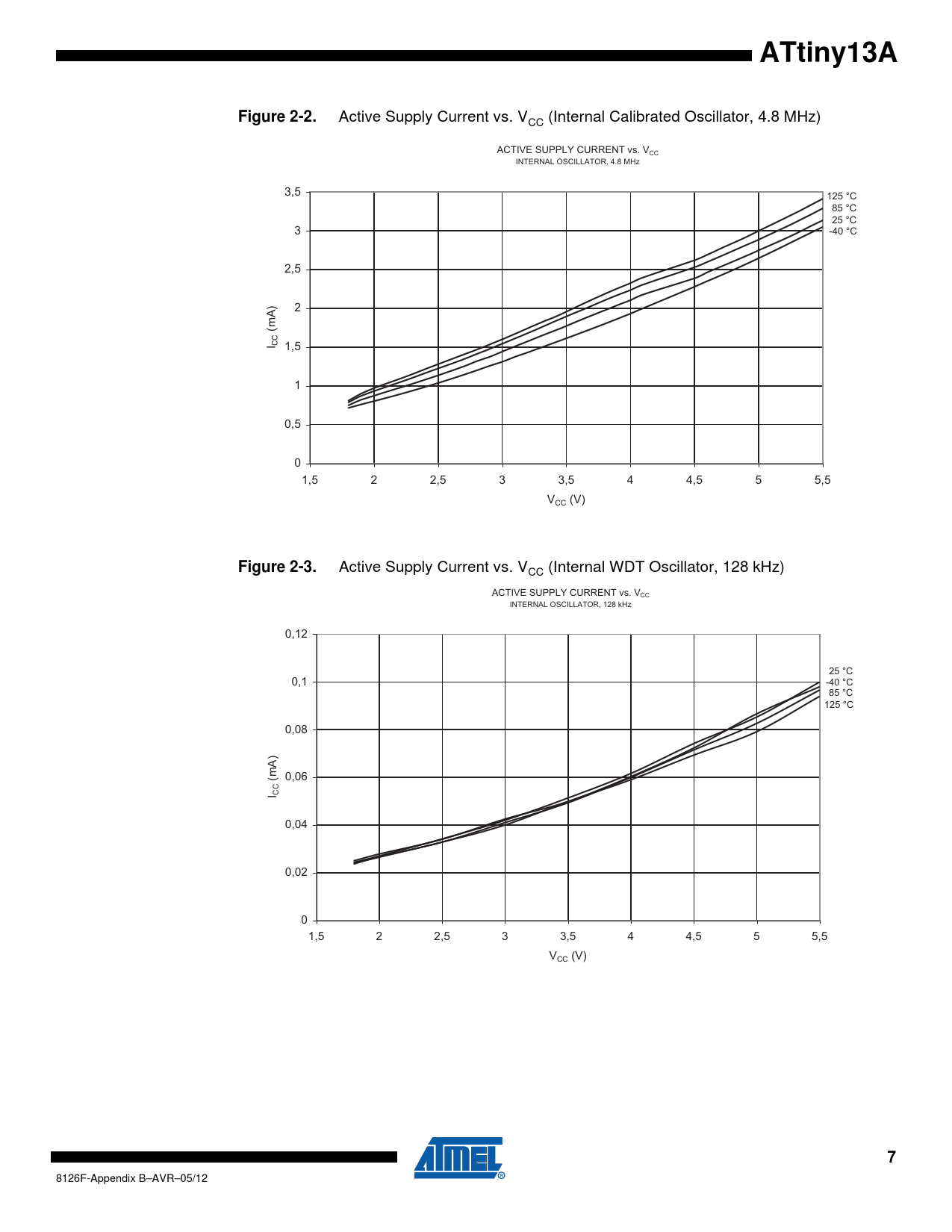

ATtiny13A Figure 2-2.
Active Supply Current vs. V (Internal Calibrated Oscillator, 4.8 MHz) CC ACTIVE SUPPLY CURRENT vs. VCC INTERNAL OSCILLATOR, 4.8 MHz 3,5 125 °C 85 °C 25 °C 3 -40 °C 2,5 2 (mA) I CC 1,5 1 0,5 0 1,5 2 2,5 3 3,5 4 4,5 5 5,5 VCC (V)
Figure 2-3.
Active Supply Current vs. V (Internal WDT Oscillator, 128 kHz) CC ACTIVE SUPPLY CURRENT vs. VCC INTERNAL OSCILLATOR, 128 kHz 0,12 25 °C 0,1 -40 °C 85 °C 125 °C 0,08 0,06 (mA) I CC 0,04 0,02 0 1,5 2 2,5 3 3,5 4 4,5 5 5,5 VCC (V)
