Datasheet ATtiny13A. Appendix B. Specification at 125°C (Microchip) - 9
| Fabricante | Microchip |
| Descripción | 8-bit AVR Microcontroller with 1K Bytes In-System Programmable Flash |
| Páginas / Página | 38 / 9 — ATtiny13A. Figure 2-6. Figure 2-7 |
| Formato / tamaño de archivo | PDF / 1.7 Mb |
| Idioma del documento | Inglés |
ATtiny13A. Figure 2-6. Figure 2-7
Línea de modelo para esta hoja de datos
Versión de texto del documento

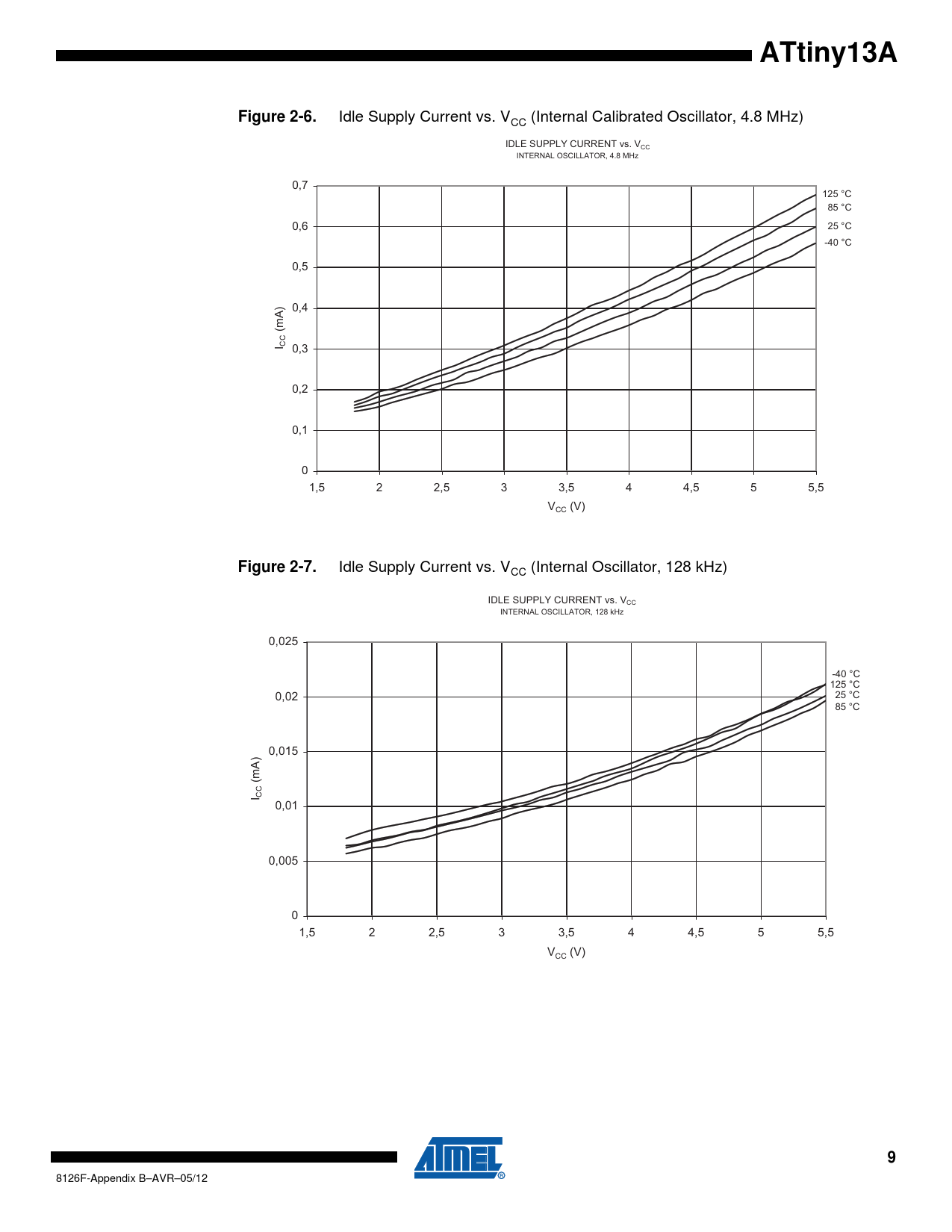

ATtiny13A Figure 2-6.
Idle Supply Current vs. V (Internal Calibrated Oscillator, 4.8 MHz) CC IDLE SUPPLY CURRENT vs. VCC INTERNAL OSCILLATOR, 4.8 MHz 0,7 125 °C 85 °C 0,6 25 °C -40 °C 0,5 0,4 (mA) I CC 0,3 0,2 0,1 0 1,5 2 2,5 3 3,5 4 4,5 5 5,5 VCC (V)
Figure 2-7.
Idle Supply Current vs. V (Internal Oscillator, 128 kHz) CC IDLE SUPPLY CURRENT vs. VCC INTERNAL OSCILLATOR, 128 kHz 0,025 -40 °C 125 °C 25 °C 0,02 85 °C 0,015 (mA) I CC 0,01 0,005 0 1,5 2 2,5 3 3,5 4 4,5 5 5,5 VCC (V)
9
8126F-Appendix B–AVR–05/12 Document Outline Appendix B – ATtiny13A Specification at 125°C 1. Electrical Characteristics 1.1 Absolute Maximum Ratings* 1.2 DC Characteristics 1.3 Clock Characteristics 1.3.1 Accuracy of Calibrated Internal Oscillator 1.4 System and Reset Characteristics 1.4.1 Enhanced Power-On Reset 1.5 ADC Characteristics 1.6 Analog Comparator Characteristics 1.7 Serial Programming Characteristics 2. Typical Characteristics 2.1 Current Consumption in Active Mode 2.2 Current Consumption in Idle Mode 2.3 Current Consumption in Power-down Mode 2.4 Current Consumption of Peripheral Units 2.5 Pull-up Resistors 2.6 Output Driver Strength (Low Power Pins) 2.7 Output Driver Strength (Regular Pins) 2.8 Input Thresholds and Hysteresis (for I/O Ports) 2.9 BOD, Bandgap and Reset 2.10 Internal Oscillator Speed 3. Ordering Information 4. Revision History
