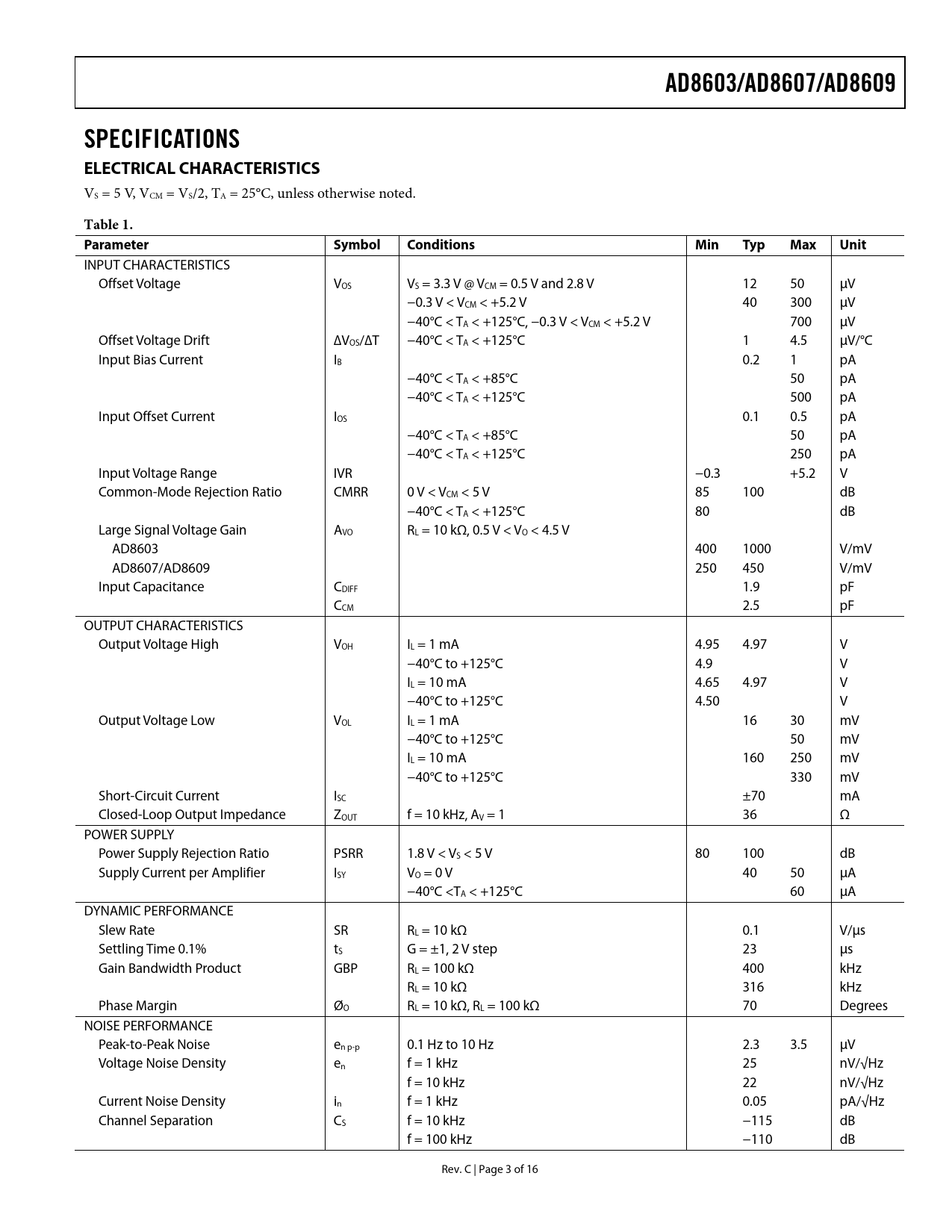

AD8603/AD8607/AD8609. SPECIFICATIONS ELECTRICAL CHARACTERISTICS. Table 1. Parameter. Symbol. Conditions. Min. Typ. Max. Unit

AD8603/AD8607/AD8609 SPECIFICATIONS ELECTRICAL CHARACTERISTICS Table 1 Parameter Symbol Conditions Min Typ Max Unit

Línea de modelo para esta hoja de datos

Versión de texto del documento

AD8603/AD8607/AD8609 SPECIFICATIONS ELECTRICAL CHARACTERISTICS
VS = 5 V, VCM = VS/2, TA = 25°C, unless otherwise noted.
Table 1. Parameter Symbol Conditions Min Typ Max Unit
INPUT CHARACTERISTICS Offset Voltage VOS VS = 3.3 V @ VCM = 0.5 V and 2.8 V 12 50 μV −0.3 V < VCM < +5.2 V 40 300 μV −40°C < TA < +125°C, −0.3 V < VCM < +5.2 V 700 μV Offset Voltage Drift ∆VOS/∆T −40°C < TA < +125°C 1 4.5 μV/°C Input Bias Current IB 0.2 1 pA −40°C < TA < +85°C 50 pA −40°C < TA < +125°C 500 pA Input Offset Current IOS 0.1 0.5 pA −40°C < TA < +85°C 50 pA −40°C < TA < +125°C 250 pA Input Voltage Range IVR −0.3 +5.2 V Common-Mode Rejection Ratio CMRR 0 V < VCM < 5 V 85 100 dB −40°C < TA < +125°C 80 dB Large Signal Voltage Gain AVO RL = 10 kΩ, 0.5 V < VO < 4.5 V AD8603 400 1000 V/mV AD8607/AD8609 250 450 V/mV Input Capacitance CDIFF 1.9 pF CCM 2.5 pF OUTPUT CHARACTERISTICS Output Voltage High VOH IL = 1 mA 4.95 4.97 V −40°C to +125°C 4.9 V IL = 10 mA 4.65 4.97 V −40°C to +125°C 4.50 V Output Voltage Low VOL IL = 1 mA 16 30 mV −40°C to +125°C 50 mV IL = 10 mA 160 250 mV −40°C to +125°C 330 mV Short-Circuit Current ISC ±70 mA Closed-Loop Output Impedance ZOUT f = 10 kHz, AV = 1 36 Ω POWER SUPPLY Power Supply Rejection Ratio PSRR 1.8 V < VS < 5 V 80 100 dB Supply Current per Amplifier ISY VO = 0 V 40 50 μA −40°C <TA < +125°C 60 μA DYNAMIC PERFORMANCE Slew Rate SR RL = 10 kΩ 0.1 V/μs Settling Time 0.1% tS G = ±1, 2 V step 23 μs Gain Bandwidth Product GBP RL = 100 kΩ 400 kHz RL = 10 kΩ 316 kHz Phase Margin ØO RL = 10 kΩ, RL = 100 kΩ 70 Degrees NOISE PERFORMANCE Peak-to-Peak Noise en p-p 0.1 Hz to 10 Hz 2.3 3.5 μV Voltage Noise Density en f = 1 kHz 25 nV/√Hz f = 10 kHz 22 nV/√Hz Current Noise Density in f = 1 kHz 0.05 pA/√Hz Channel Separation CS f = 10 kHz −115 dB f = 100 kHz −110 dB Rev. C | Page 3 of 16 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION PIN CONFIGURATIONS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS NO PHASE REVERSAL INPUT OVERVOLTAGE PROTECTION DRIVING CAPACITIVE LOADS PROXIMITY SENSORS COMPOSITE AMPLIFIERS BATTERY-POWERED APPLICATIONS PHOTODIODES OUTLINE DIMENSIONS ORDERING GUIDE
