AD8603/AD8607/AD8609. ABSOLUTE MAXIMUM RATINGS. Table 4. Package Characteristics Package Type. θ 1. θJC Unit. Table 3
Línea de modelo para esta hoja de datos
Versión de texto del documento

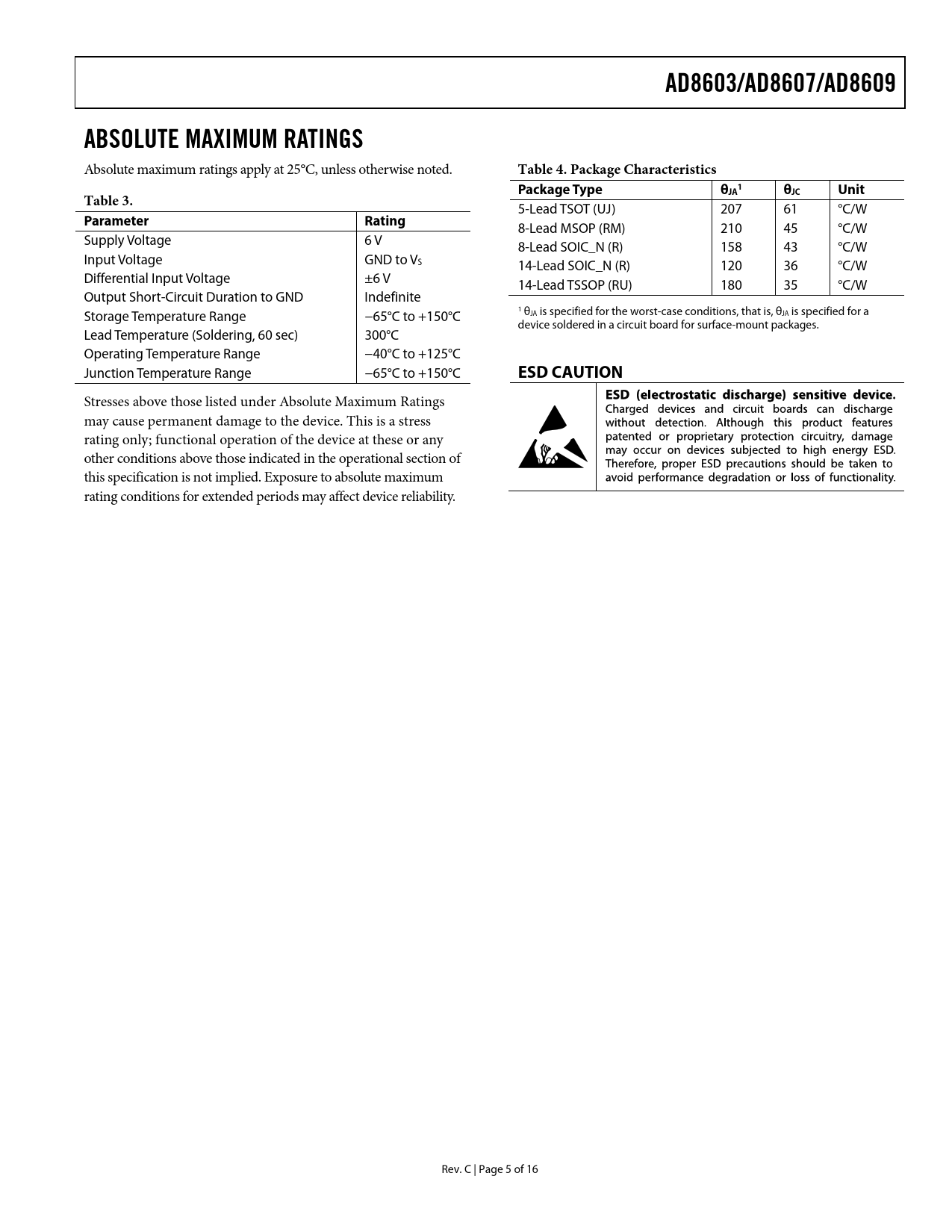

AD8603/AD8607/AD8609 ABSOLUTE MAXIMUM RATINGS
Absolute maximum ratings apply at 25°C, unless otherwise noted.
Table 4. Package Characteristics Package Type θ 1 JA θJC Unit Table 3.
5-Lead TSOT (UJ) 207 61 °C/W
Parameter Rating
8-Lead MSOP (RM) 210 45 °C/W Supply Voltage 6 V 8-Lead SOIC_N (R) 158 43 °C/W Input Voltage GND to VS 14-Lead SOIC_N (R) 120 36 °C/W Differential Input Voltage ±6 V 14-Lead TSSOP (RU) 180 35 °C/W Output Short-Circuit Duration to GND Indefinite 1 Storage Temperature Range −65°C to +150°C θJA is specified for the worst-case conditions, that is, θJA is specified for a device soldered in a circuit board for surface-mount packages. Lead Temperature (Soldering, 60 sec) 300°C Operating Temperature Range −40°C to +125°C Junction Temperature Range −65°C to +150°C
ESD CAUTION
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. C | Page 5 of 16 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION PIN CONFIGURATIONS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS NO PHASE REVERSAL INPUT OVERVOLTAGE PROTECTION DRIVING CAPACITIVE LOADS PROXIMITY SENSORS COMPOSITE AMPLIFIERS BATTERY-POWERED APPLICATIONS PHOTODIODES OUTLINE DIMENSIONS ORDERING GUIDE
