Datasheet EL7515 (Renesas) - 9
| Fabricante | Renesas |
| Descripción | High Frequency PWM Step-Up Regulator |
| Páginas / Página | 9 / 9 — Mini SO Package Family (MSOP). MDP0043. 0.25 M C A B. MINI SO PACKAGE … |
| Formato / tamaño de archivo | PDF / 564 Kb |
| Idioma del documento | Inglés |
Mini SO Package Family (MSOP). MDP0043. 0.25 M C A B. MINI SO PACKAGE FAMILY. (N/2)+1. MILLIMETERS. SYMBOL. MSOP8. MSOP10. TOLERANCE. NOTES
Línea de modelo para esta hoja de datos
Versión de texto del documento
EL7515

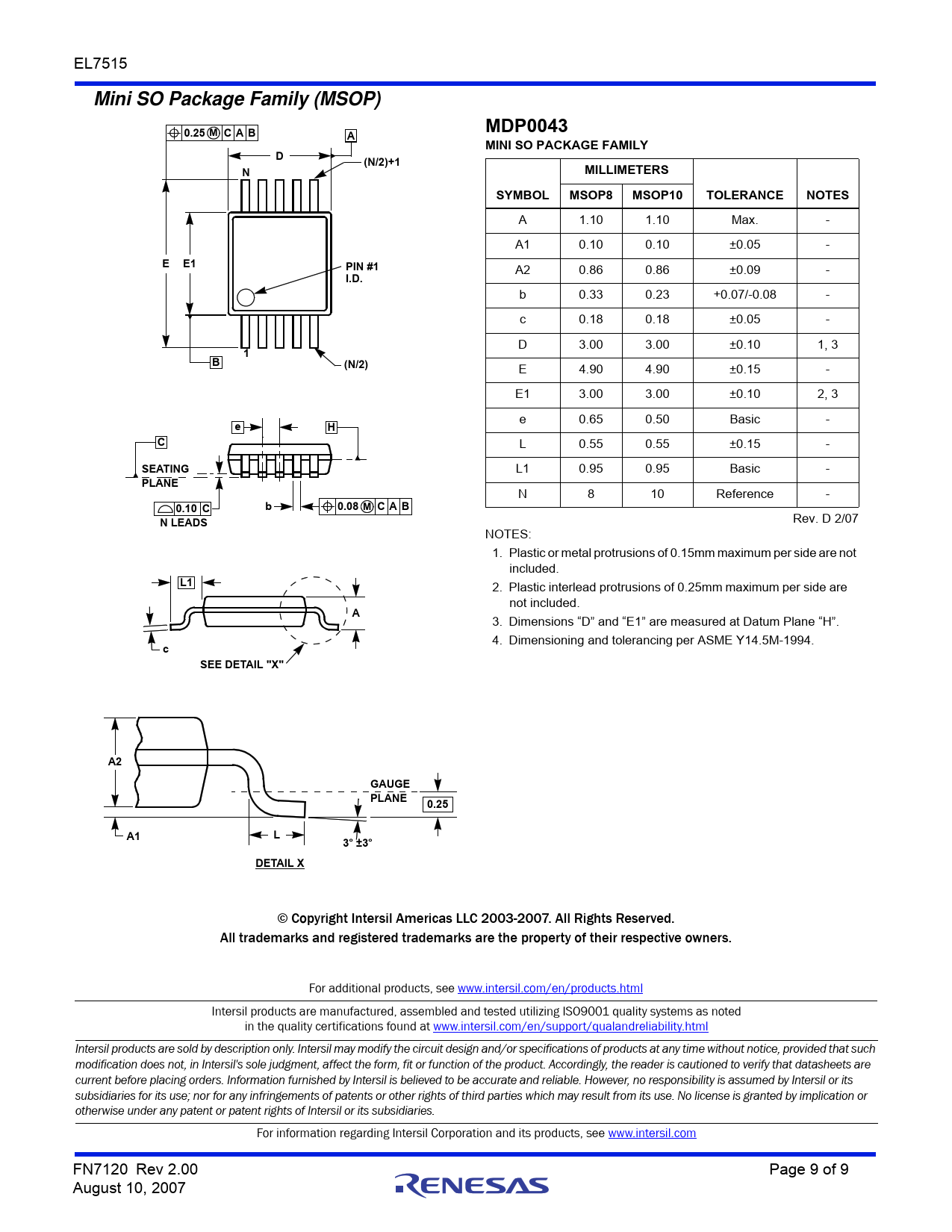

Mini SO Package Family (MSOP) MDP0043 0.25 M C A B A MINI SO PACKAGE FAMILY D (N/2)+1 N MILLIMETERS SYMBOL MSOP8 MSOP10 TOLERANCE NOTES
A 1.10 1.10 Max. - A1 0.10 0.10 ±0.05 -
E E1 PIN #1
A2 0.86 0.86 ±0.09 -
I.D.
b 0.33 0.23 +0.07/-0.08 - c 0.18 0.18 ±0.05 - D 3.00 3.00 ±0.10 1, 3
1 B (N/2)
E 4.90 4.90 ±0.15 - E1 3.00 3.00 ±0.10 2, 3 e 0.65 0.50 Basic -
e H C
L 0.55 0.55 ±0.15 -
SEATING
L1 0.95 0.95 Basic -
PLANE
N 8 10 Reference -
0.10 C b 0.08 M C A B N LEADS
Rev. D 2/07 NOTES: 1. Plastic or metal protrusions of 0.15mm maximum per side are not included.
L1
2. Plastic interlead protrusions of 0.25mm maximum per side are not included.
A
3. Dimensions “D” and “E1” are measured at Datum Plane “H”. 4. Dimensioning and tolerancing per ASME Y14.5M-1994.
c SEE DETAIL "X" A2 GAUGE PLANE 0.25 A1 L 3° ±3° DETAIL X
© Copyright Intersil Americas LLC 2003-2007. All Rights Reserved. All trademarks and registered trademarks are the property of their respective owners. For additional products, see www.intersil.com/en/products.html Intersil products are manufactured, assembled and tested utilizing ISO9001 quality systems as noted in the quality certifications found at www.intersil.com/en/support/qualandreliability.html Intersil products are sold by description only. Intersil may modify the circuit design and/or specifications of products at any time without notice, provided that such modification does not, in Intersil's sole judgment, affect the form, fit or function of the product. Accordingly, the reader is cautioned to verify that datasheets are current before placing orders. Information furnished by Intersil is believed to be accurate and reliable. However, no responsibility is assumed by Intersil or its subsidiaries for its use; nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of Intersil or its subsidiaries. For information regarding Intersil Corporation and its products, see www.intersil.com FN7120 Rev 2.00 Page 9 of 9 August 10, 2007
