Datasheet BRT21, BRT22, BRT23 (Vishay) - 8
| Fabricante | Vishay |
| Descripción | Optocoupler, Phototriac Output, Zero Crossing |
| Páginas / Página | 9 / 8 — BRT21, BRT22, BRT23. SOLDER PROFILES. HANDLING AND STORAGE CONDITIONS |
| Formato / tamaño de archivo | PDF / 203 Kb |
| Idioma del documento | Inglés |

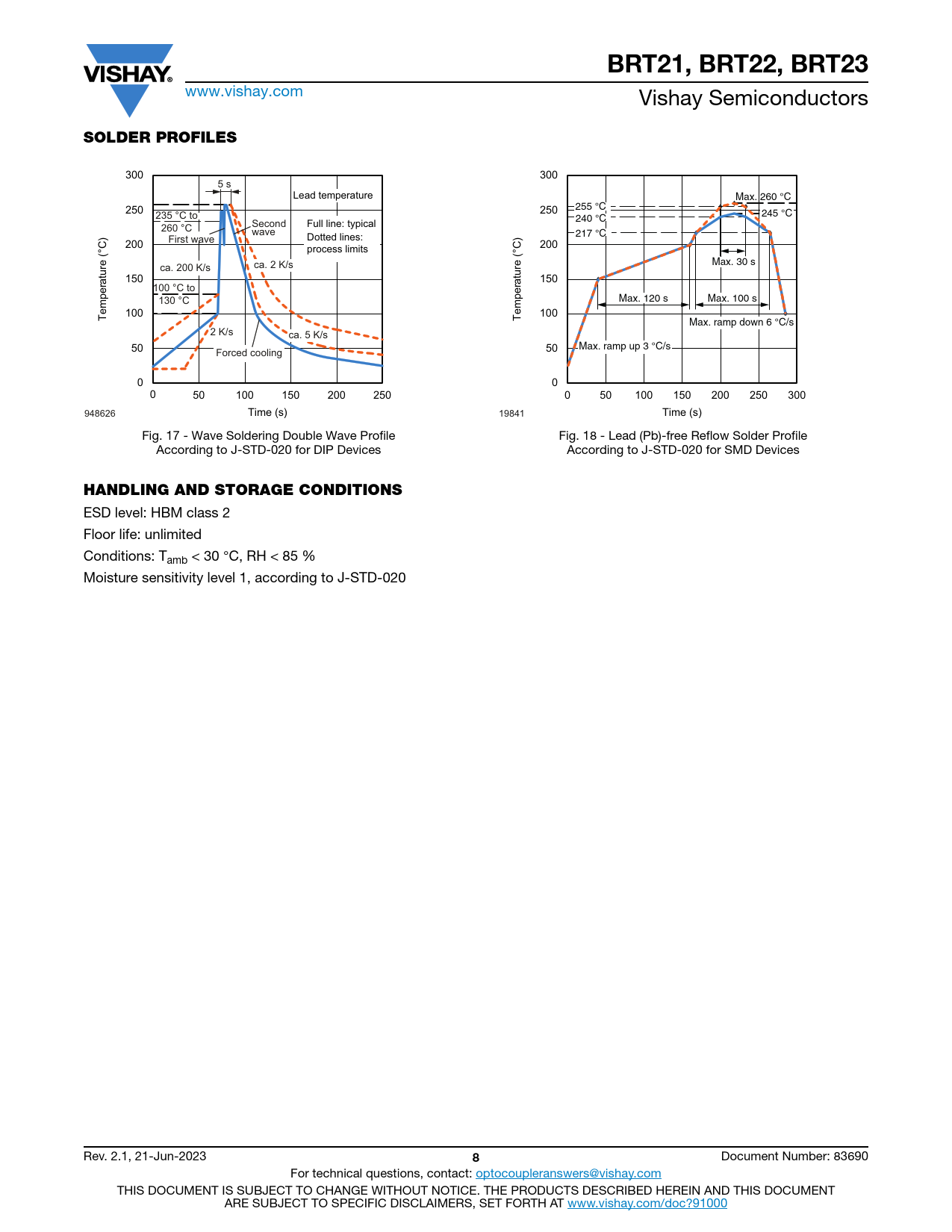

BRT21, BRT22, BRT23. SOLDER PROFILES. HANDLING AND STORAGE CONDITIONS
Línea de modelo para esta hoja de datos
Versión de texto del documento
BRT21, BRT22, BRT23
www.vishay.com Vishay Semiconductors
SOLDER PROFILES
Axis Title Axis Title 300 10000 300 10000 5 s Lead temperature Max. 260 °C 250 255 °C 250 235 °C to 245 °C 240 °C Second Full line: typical 260 °C wave 217 °C First wave Dotted lines: 200 1000 200 1000 process limits ca. 2 K/s Max. 30 s ine ca. 200 K/s ne ne ine ne ne 150 150 100 °C to 1st li 2nd l 2nd li 1st li 2nd l 2nd li 130 °C Max. 120 s Max. 100 s 100 100 Temperature (°C) 100 100 Temperature (°C) Max. ramp down 6 °C/s 2 K/s ca. 5 K/s 50 50 Max. ramp up 3 °C/s Forced cooling 0 10 0 10 0 50 100 150 200 250 0 50 100 150 200 250 300 948626 Time (s) 19841 Time (s) Fig. 17 - Wave Soldering Double Wave Profile Fig. 18 - Lead (Pb)-free Reflow Solder Profile According to J-STD-020 for DIP Devices According to J-STD-020 for SMD Devices
HANDLING AND STORAGE CONDITIONS
ESD level: HBM class 2 Floor life: unlimited Conditions: Tamb < 30 °C, RH < 85 % Moisture sensitivity level 1, according to J-STD-020 Rev. 2.1, 21-Jun-2023
8
