Datasheet ADRF5030 (Analog Devices) - 7

link to page 8 link to page 8 link to page 8 link to page 8 link to page 8 link to page 8 link to page 8 Data Sheet

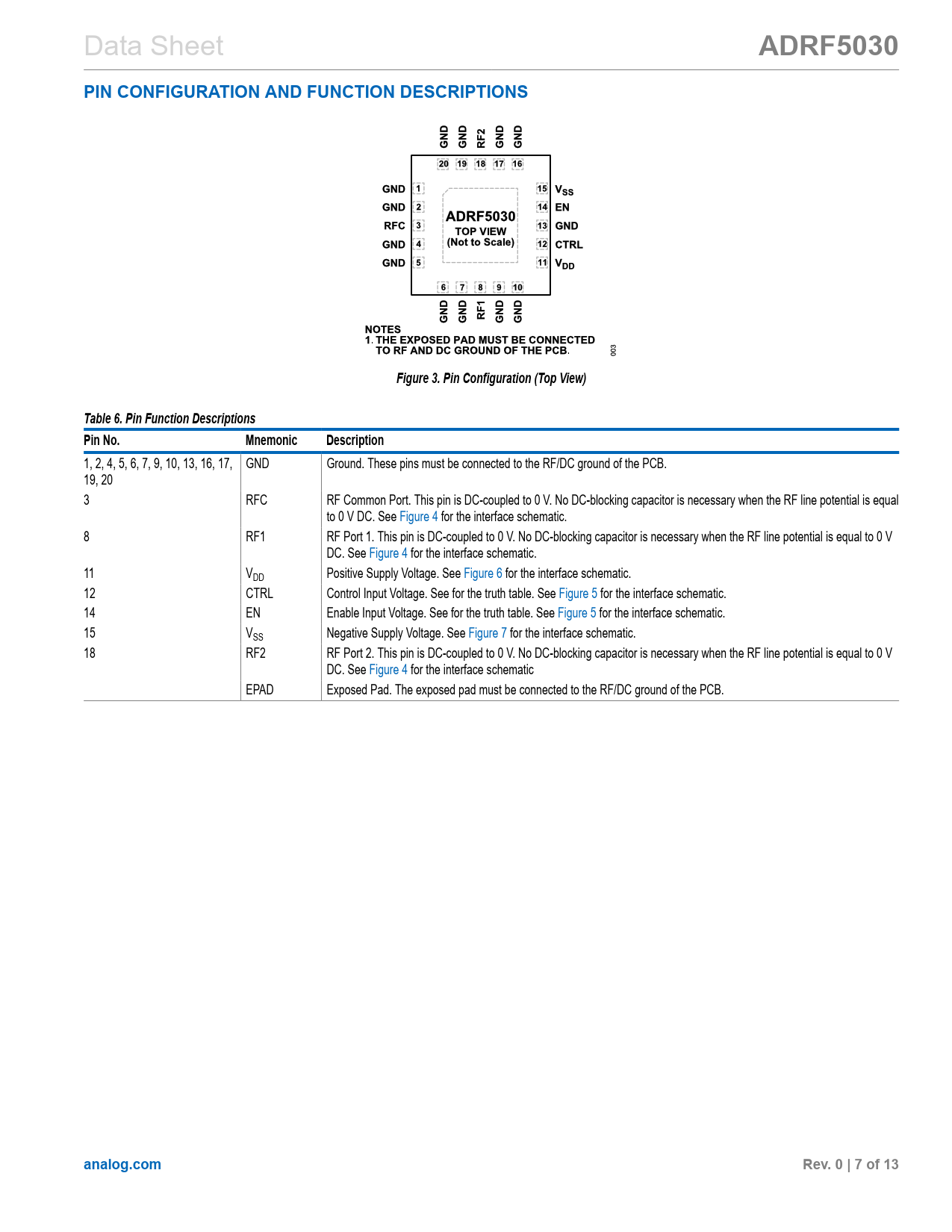

ADRF5030 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS Figure 3. Pin Configuration (Top View) Table 6. Pin Function Descriptions Pin No. Mnemonic Description
1, 2, 4, 5, 6, 7, 9, 10, 13, 16, 17, GND Ground. These pins must be connected to the RF/DC ground of the PCB. 19, 20 3 RFC RF Common Port. This pin is DC-coupled to 0 V. No DC-blocking capacitor is necessary when the RF line potential is equal to 0 V DC. See Figure 4 for the interface schematic. 8 RF1 RF Port 1. This pin is DC-coupled to 0 V. No DC-blocking capacitor is necessary when the RF line potential is equal to 0 V DC. See Figure 4 for the interface schematic. 11 VDD Positive Supply Voltage. See Figure 6 for the interface schematic. 12 CTRL Control Input Voltage. See for the truth table. See Figure 5 for the interface schematic. 14 EN Enable Input Voltage. See for the truth table. See Figure 5 for the interface schematic. 15 VSS Negative Supply Voltage. See Figure 7 for the interface schematic. 18 RF2 RF Port 2. This pin is DC-coupled to 0 V. No DC-blocking capacitor is necessary when the RF line potential is equal to 0 V DC. See Figure 4 for the interface schematic EPAD Exposed Pad. The exposed pad must be connected to the RF/DC ground of the PCB.
analog.com Rev. 0 | 7 of 13
