Datasheet ADRF5030 (Analog Devices) - 3
| Fabricante | Analog Devices |
| Descripción | 100 MHz to 20 GHz, Non-Reflective, Silicon SPDT Switch |
| Páginas / Página | 13 / 3 — ADRF5030. SPECIFICATIONS. Table 1. Electrical Characteristics. Parameter. … |
| Formato / tamaño de archivo | PDF / 752 Kb |
| Idioma del documento | Inglés |

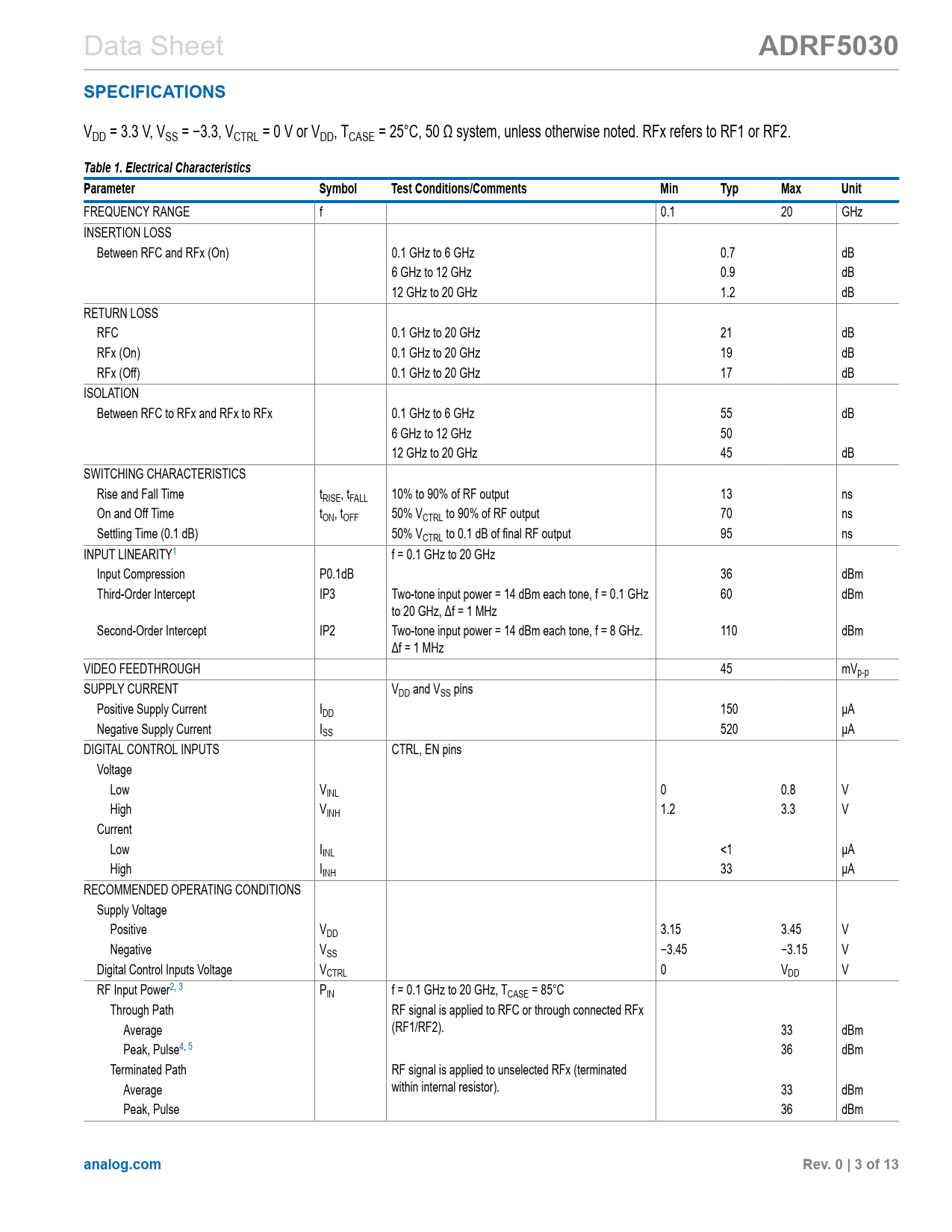

ADRF5030. SPECIFICATIONS. Table 1. Electrical Characteristics. Parameter. Symbol. Test Conditions/Comments. Min. Typ. Max. Unit. analog.com
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 4 link to page 4 link to page 4 link to page 4 link to page 4 Data Sheet
ADRF5030 SPECIFICATIONS
VDD = 3.3 V, VSS = −3.3, VCTRL = 0 V or VDD, TCASE = 25°C, 50 Ω system, unless otherwise noted. RFx refers to RF1 or RF2.
Table 1. Electrical Characteristics Parameter Symbol Test Conditions/Comments Min Typ Max Unit
FREQUENCY RANGE f 0.1 20 GHz INSERTION LOSS Between RFC and RFx (On) 0.1 GHz to 6 GHz 0.7 dB 6 GHz to 12 GHz 0.9 dB 12 GHz to 20 GHz 1.2 dB RETURN LOSS RFC 0.1 GHz to 20 GHz 21 dB RFx (On) 0.1 GHz to 20 GHz 19 dB RFx (Off) 0.1 GHz to 20 GHz 17 dB ISOLATION Between RFC to RFx and RFx to RFx 0.1 GHz to 6 GHz 55 dB 6 GHz to 12 GHz 50 12 GHz to 20 GHz 45 dB SWITCHING CHARACTERISTICS Rise and Fall Time tRISE, tFALL 10% to 90% of RF output 13 ns On and Off Time tON, tOFF 50% VCTRL to 90% of RF output 70 ns Settling Time (0.1 dB) 50% VCTRL to 0.1 dB of final RF output 95 ns INPUT LINEARITY1 f = 0.1 GHz to 20 GHz Input Compression P0.1dB 36 dBm Third-Order Intercept IP3 Two-tone input power = 14 dBm each tone, f = 0.1 GHz 60 dBm to 20 GHz, Δf = 1 MHz Second-Order Intercept IP2 Two-tone input power = 14 dBm each tone, f = 8 GHz. 110 dBm Δf = 1 MHz VIDEO FEEDTHROUGH 45 mVp-p SUPPLY CURRENT VDD and VSS pins Positive Supply Current IDD 150 µA Negative Supply Current ISS 520 µA DIGITAL CONTROL INPUTS CTRL, EN pins Voltage Low VINL 0 0.8 V High VINH 1.2 3.3 V Current Low IINL <1 µA High IINH 33 µA RECOMMENDED OPERATING CONDITIONS Supply Voltage Positive VDD 3.15 3.45 V Negative VSS −3.45 −3.15 V Digital Control Inputs Voltage VCTRL 0 VDD V RF Input Power2, 3 PIN f = 0.1 GHz to 20 GHz, TCASE = 85°C Through Path RF signal is applied to RFC or through connected RFx Average (RF1/RF2). 33 dBm Peak, Pulse4, 5 36 dBm Terminated Path RF signal is applied to unselected RFx (terminated Average within internal resistor). 33 dBm Peak, Pulse 36 dBm
analog.com Rev. 0 | 3 of 13
