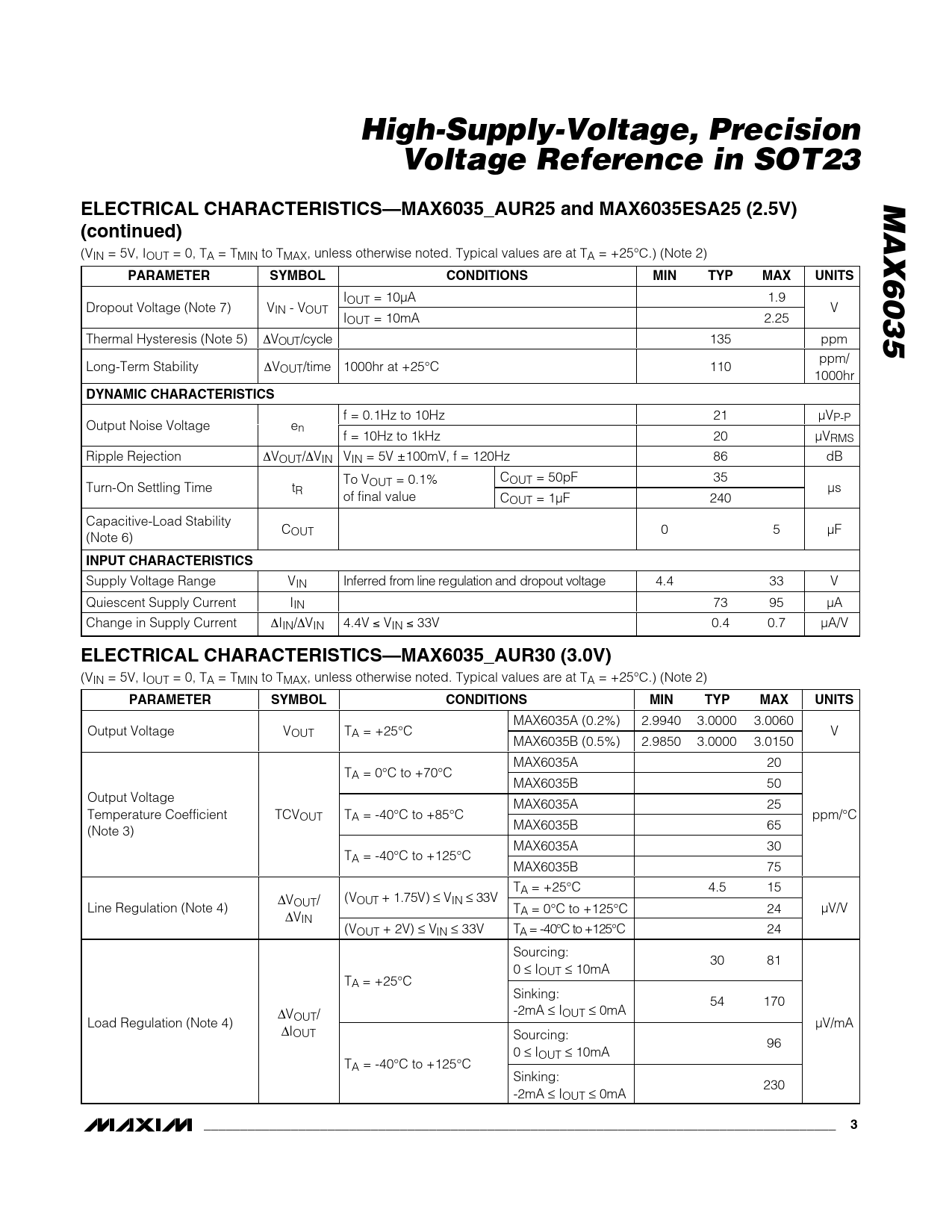

High-Supply-Voltage, Precision Voltage Reference in SOT23 MAX6035 ELECTRICAL CHARACTERISTICS—MAX6035_AUR25 and MAX6035ESA25 (2.5V) (continued)
(VIN = 5V, IOUT = 0, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.) (Note 2)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
IOUT = 10µA 1.9 Dropout Voltage (Note 7) VIN - VOUT V IOUT = 10mA 2.25 Thermal Hysteresis (Note 5) ∆V OU T /cycl e 135 ppm ppm/ Long-Term Stability ∆VOUT/time 1000hr at +25°C 110 1000hr
DYNAMIC CHARACTERISTICS
f = 0.1Hz to 10Hz 21 µVP-P Output Noise Voltage en f = 10Hz to 1kHz 20 µVRMS Ripple Rejection ∆VOUT/∆VIN VIN = 5V ±100mV, f = 120Hz 86 dB To V COUT = 50pF 35 Turn-On Settling Time t OUT = 0.1% R µs of final value COUT = 1µF 240 Capacitive-Load Stability COUT 0 5 µF (Note 6)
INPUT CHARACTERISTICS
Supply Voltage Range VIN Infer r ed fr om l i ne r eg ul ati on and d r op out vol tag e 4.4 33 V Quiescent Supply Current IIN 73 95 µA Change in Supply Current ∆IIN/∆VIN 4.4V ≤ VIN ≤ 33V 0.4 0.7 µA/V
ELECTRICAL CHARACTERISTICS—MAX6035_AUR30 (3.0V)
(VIN = 5V, IOUT = 0, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.) (Note 2)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
MAX6035A (0.2%) 2.9940 3.0000 3.0060 Output Voltage VOUT TA = +25°C V MAX6035B (0.5%) 2.9850 3.0000 3.0150 MAX6035A 20 TA = 0°C to +70°C MAX6035B 50 Output Voltage MAX6035A 25 Temperature Coefficient TCVOUT TA = -40°C to +85°C ppm/°C MAX6035B 65 (Note 3) MAX6035A 30 TA = -40°C to +125°C MAX6035B 75 TA = +25°C 4.5 15 ( V ∆V OU T + 1.75V ) OUT/ ≤ V I N ≤ 33V Line Regulation (Note 4) TA = 0°C to +125°C 24 ∆ µV/V VIN (VOUT + 2V) ≤ VIN ≤ 33V TA = -40°C to +125°C 24 Sourcing: 30 81 0 ≤ IOUT ≤ 10mA TA = +25°C Sinking: 54 170 -2mA ≤ IOUT ≤ 0mA ∆VOUT/ Load Regulation (Note 4) ∆ µV/mA IOUT Sourcing: 96 0 ≤ IOUT ≤ 10mA TA = -40°C to +125°C Sinking: 230 -2mA ≤ IOUT ≤ 0mA
_______________________________________________________________________________________ 3
