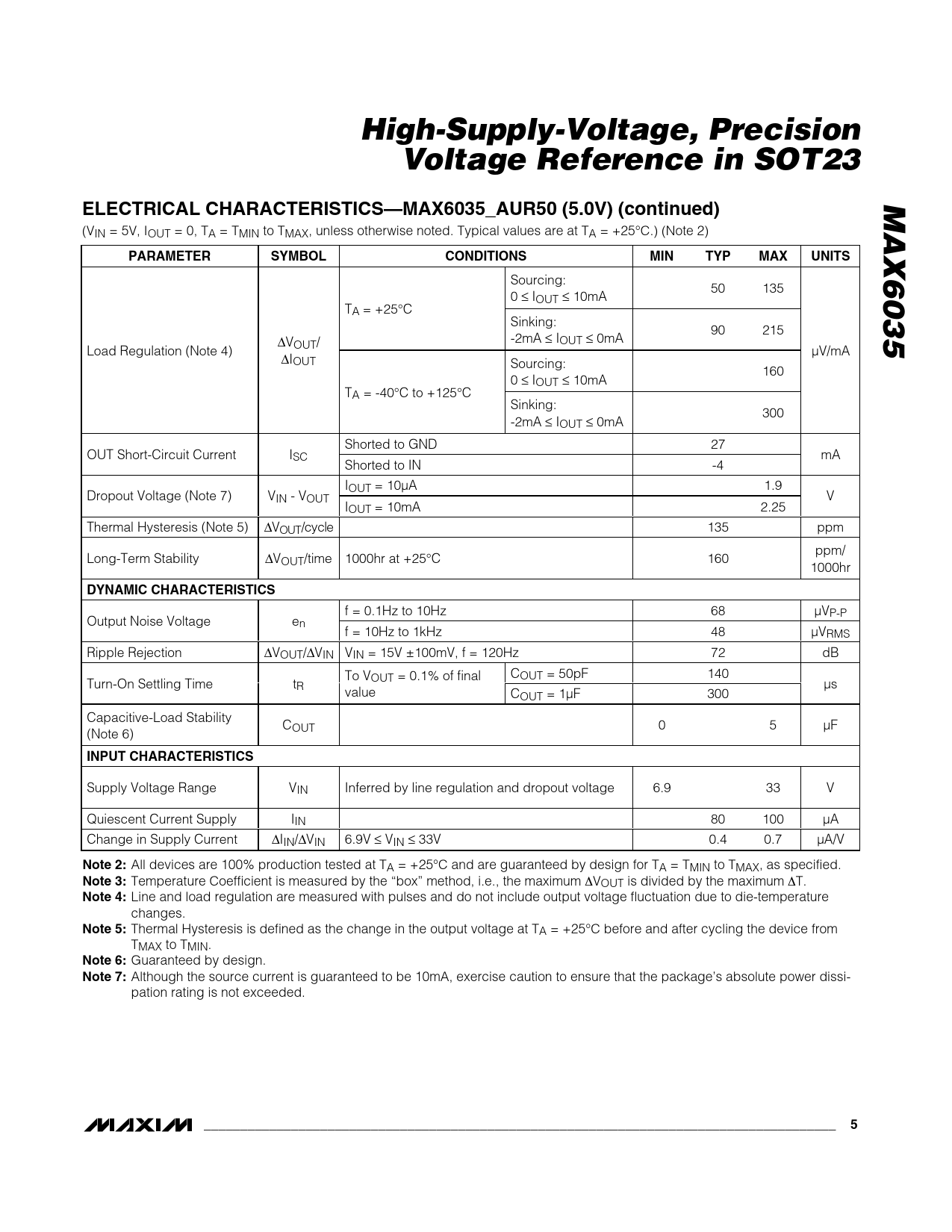

High-Supply-Voltage, Precision Voltage Reference in SOT23 MAX6035 ELECTRICAL CHARACTERISTICS—MAX6035_AUR50 (5.0V) (continued)
(VIN = 5V, IOUT = 0, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.) (Note 2)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
Sourcing: 50 135 0 ≤ IOUT ≤ 10mA TA = +25°C Sinking: 90 215 -2mA ≤ IOUT ≤ 0mA ∆VOUT/ Load Regulation (Note 4) ∆ µV/mA IOUT Sourcing: 160 0 ≤ IOUT ≤ 10mA TA = -40°C to +125°C Sinking: 300 -2mA ≤ IOUT ≤ 0mA Shorted to GND 27 OUT Short-Circuit Current ISC mA Shorted to IN -4 IOUT = 10µA 1.9 Dropout Voltage (Note 7) VIN - VOUT V IOUT = 10mA 2.25 Thermal Hysteresis (Note 5) ∆V OU T /cycl e 135 ppm ppm/ Long-Term Stability ∆VOUT/time 1000hr at +25°C 160 1000hr
DYNAMIC CHARACTERISTICS
f = 0.1Hz to 10Hz 68 µVP-P Output Noise Voltage en f = 10Hz to 1kHz 48 µVRMS Ripple Rejection ∆VOUT/∆VIN VIN = 15V ±100mV, f = 120Hz 72 dB To V COUT = 50pF 140 Turn-On Settling Time t OUT = 0.1% of final R µs value COUT = 1µF 300 Capacitive-Load Stability COUT 0 5 µF (Note 6)
INPUT CHARACTERISTICS
Supply Voltage Range VIN Inferred by line regulation and dropout voltage 6.9 33 V Quiescent Current Supply IIN 80 100 µA Change in Supply Current ∆IIN/∆VIN 6.9V ≤ VIN ≤ 33V 0.4 0.7 µA/V
Note 2:
All devices are 100% production tested at TA = +25°C and are guaranteed by design for TA = TMIN to TMAX, as specified.
Note 3:
Temperature Coefficient is measured by the “box” method, i.e., the maximum ∆VOUT is divided by the maximum ∆T.
Note 4:
Line and load regulation are measured with pulses and do not include output voltage fluctuation due to die-temperature changes.
Note 5:
Thermal Hysteresis is defined as the change in the output voltage at TA = +25°C before and after cycling the device from TMAX to TMIN.
Note 6:
Guaranteed by design.
Note 7:
Although the source current is guaranteed to be 10mA, exercise caution to ensure that the package’s absolute power dissi- pation rating is not exceeded.
_______________________________________________________________________________________ 5
