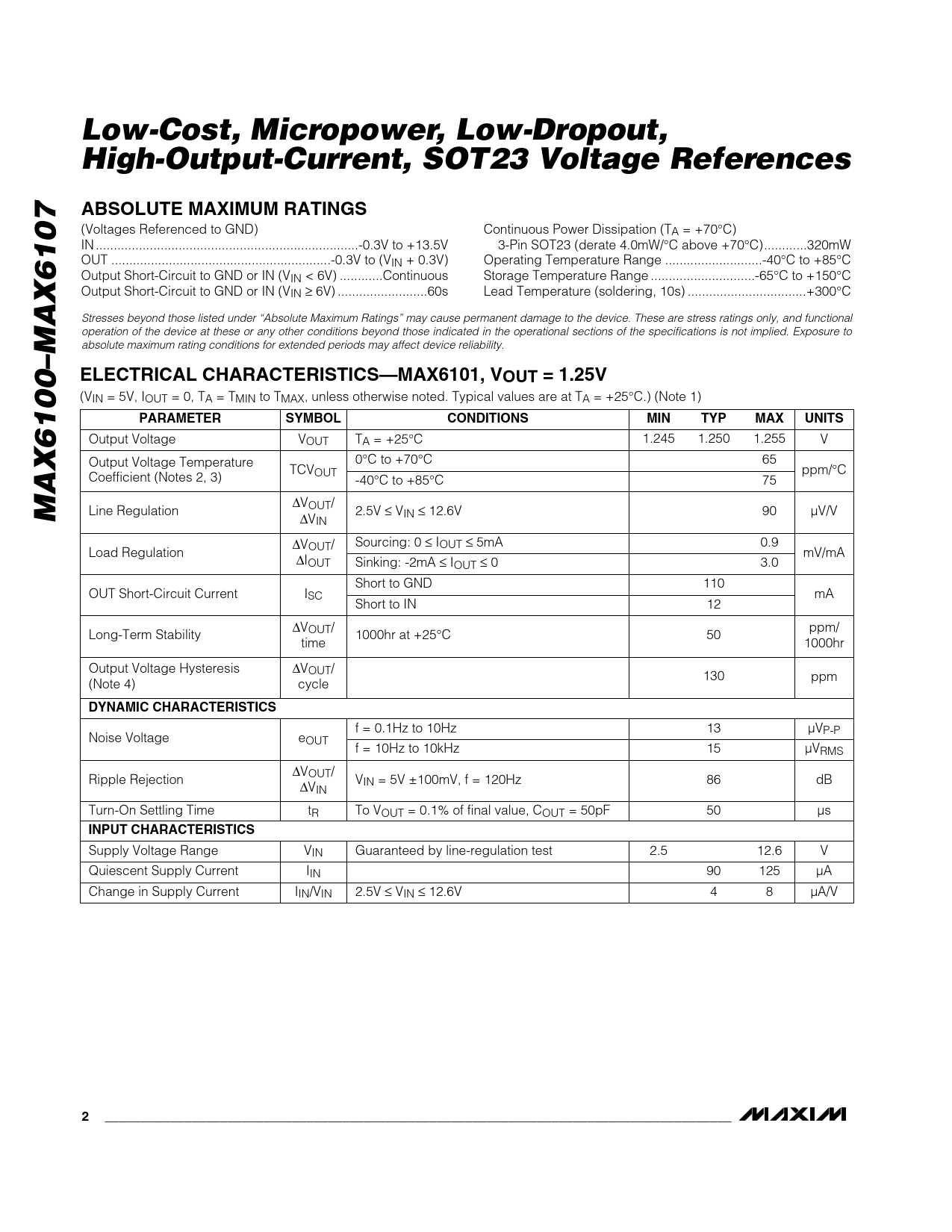

Low-Cost, Micropower, Low-Dropout, High-Output-Current, SOT23 Voltage References. ABSOLUTE MAXIMUM RATINGS
Línea de modelo para esta hoja de datos
Versión de texto del documento
Low-Cost, Micropower, Low-Dropout, High-Output-Current, SOT23 Voltage References ABSOLUTE MAXIMUM RATINGS
(Voltages Referenced to GND) Continuous Power Dissipation (TA = +70°C) IN ...-0.3V to +13.5V 3-Pin SOT23 (derate 4.0mW/°C above +70°C)..320mW OUT ...-0.3V to (VIN + 0.3V) Operating Temperature Range ...-40°C to +85°C Output Short-Circuit to GND or IN (VIN < 6V) ..Continuous Storage Temperature Range ...-65°C to +150°C Output Short-Circuit to GND or IN (VIN ≥ 6V) ...60s Lead Temperature (soldering, 10s) ...+300°C Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
ELECTRICAL CHARACTERISTICS—MAX6101, VOUT = 1.25V
(VIN = 5V, IOUT = 0, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
Output Voltage VOUT TA = +25°C 1.245 1.250 1.255 V 0°C to +70°C 65 Output Voltage Temperature TCVOUT ppm/°C Coefficient (Notes 2, 3) -40°C to +85°C 75
MAX6100–MAX6107
∆VOUT/ Line Regulation 2.5V ≤ VIN ≤ 12.6V 90 µV/V ∆VIN Sourcing: 0 ≤ IOUT ≤ 5mA 0.9 ∆VOUT/ Load Regulation mV/mA ∆IOUT Sinking: -2mA ≤ IOUT ≤ 0 3.0 Short to GND 110 OUT Short-Circuit Current ISC mA Short to IN 12 ∆VOUT/ ppm/ Long-Term Stability 1000hr at +25°C 50 time 1000hr Output Voltage Hysteresis ∆VOUT/ 130 ppm (Note 4) cycle
DYNAMIC CHARACTERISTICS
f = 0.1Hz to 10Hz 13 µVP-P Noise Voltage eOUT f = 10Hz to 10kHz 15 µVRMS ∆VOUT/ Ripple Rejection VIN = 5V ±100mV, f = 120Hz 86 dB ∆VIN Turn-On Settling Time tR To VOUT = 0.1% of final value, COUT = 50pF 50 µs
INPUT CHARACTERISTICS
Supply Voltage Range VIN Guaranteed by line-regulation test 2.5 12.6 V Quiescent Supply Current IIN 90 125 µA Change in Supply Current IIN/VIN 2.5V ≤ VIN ≤ 12.6V 4 8 µA/V
2 _______________________________________________________________________________________
