Datasheet ZXRE1004 (Diodes) - 4
| Fabricante | Diodes |
| Descripción | Sot23 Micropower (4μA) 1.22V Voltage Reference |
| Páginas / Página | 5 / 4 — ZXRE1004. Ordering Information. Device. Reel Size. Tape Width. Packing. … |
| Formato / tamaño de archivo | PDF / 420 Kb |
| Idioma del documento | Inglés |
ZXRE1004. Ordering Information. Device. Reel Size. Tape Width. Packing. Part Number. Tol (%). Package. Status (Note 4). Mark. (inches). (mm). Qty
Línea de modelo para esta hoja de datos
Versión de texto del documento

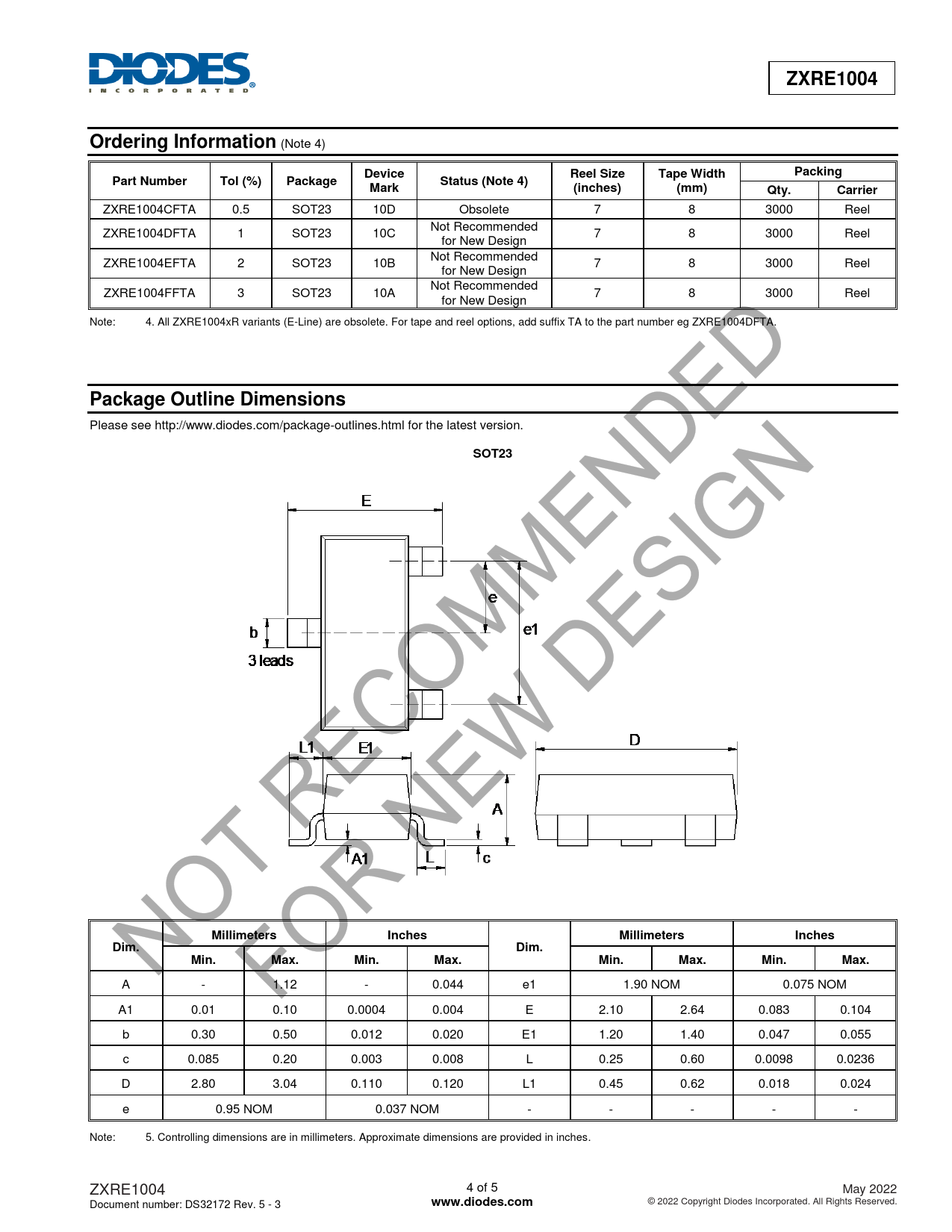

ZXRE1004 Ordering Information
(Note 4)
Device Reel Size Tape Width Packing Part Number Tol (%) Package Status (Note 4) Mark (inches) (mm) Qty. Carrier
ZXRE1004CFTA 0.5 SOT23 10D Obsolete 7 8 3000 Reel Not Recommended ZXRE1004DFTA 1 SOT23 10C 7 8 3000 Reel for New Design Not Recommended ZXRE1004EFTA 2 SOT23 10B 7 8 3000 Reel for New Design Not Recommended ZXRE1004FFTA 3 SOT23 10A 7 8 3000 Reel for New Design Note: 4. All ZXRE1004xR variants (E-Line) are obsolete. For tape and reel options, add suffix TA to the part number eg ZXRE1004DFTA.
Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOT23 Millimeters Inches Millimeters Inches Dim. Dim. Min. Max. Min. Max. Min. Max. Min. Max.
A - 1.12 - 0.044 e1 1.90 NOM 0.075 NOM A1 0.01 0.10 0.0004 0.004 E 2.10 2.64 0.083 0.104 b 0.30 0.50 0.012 0.020 E1 1.20 1.40 0.047 0.055 c 0.085 0.20 0.003 0.008 L 0.25 0.60 0.0098 0.0236 D 2.80 3.04 0.110 0.120 L1 0.45 0.62 0.018 0.024 e 0.95 NOM 0.037 NOM - - - - - Note: 5. Controlling dimensions are in millimeters. Approximate dimensions are provided in inches. ZXRE1004 4 of 5 May 2022 Document number: DS32172 Rev. 5 - 3
www.diodes.com
© 2022 Copyright Diodes Incorporated. All Rights Reserved.
