Datasheet ZXRE1004 (Diodes)
| Fabricante | Diodes |
| Descripción | Sot23 Micropower (4μA) 1.22V Voltage Reference |
| Páginas / Página | 5 / 1 — NOT RECOMMENDED FOR NEW DESIGN. USE ZXRE125. ZXRE1004. SOT23 MICROPOWER … |
| Formato / tamaño de archivo | PDF / 420 Kb |
| Idioma del documento | Inglés |

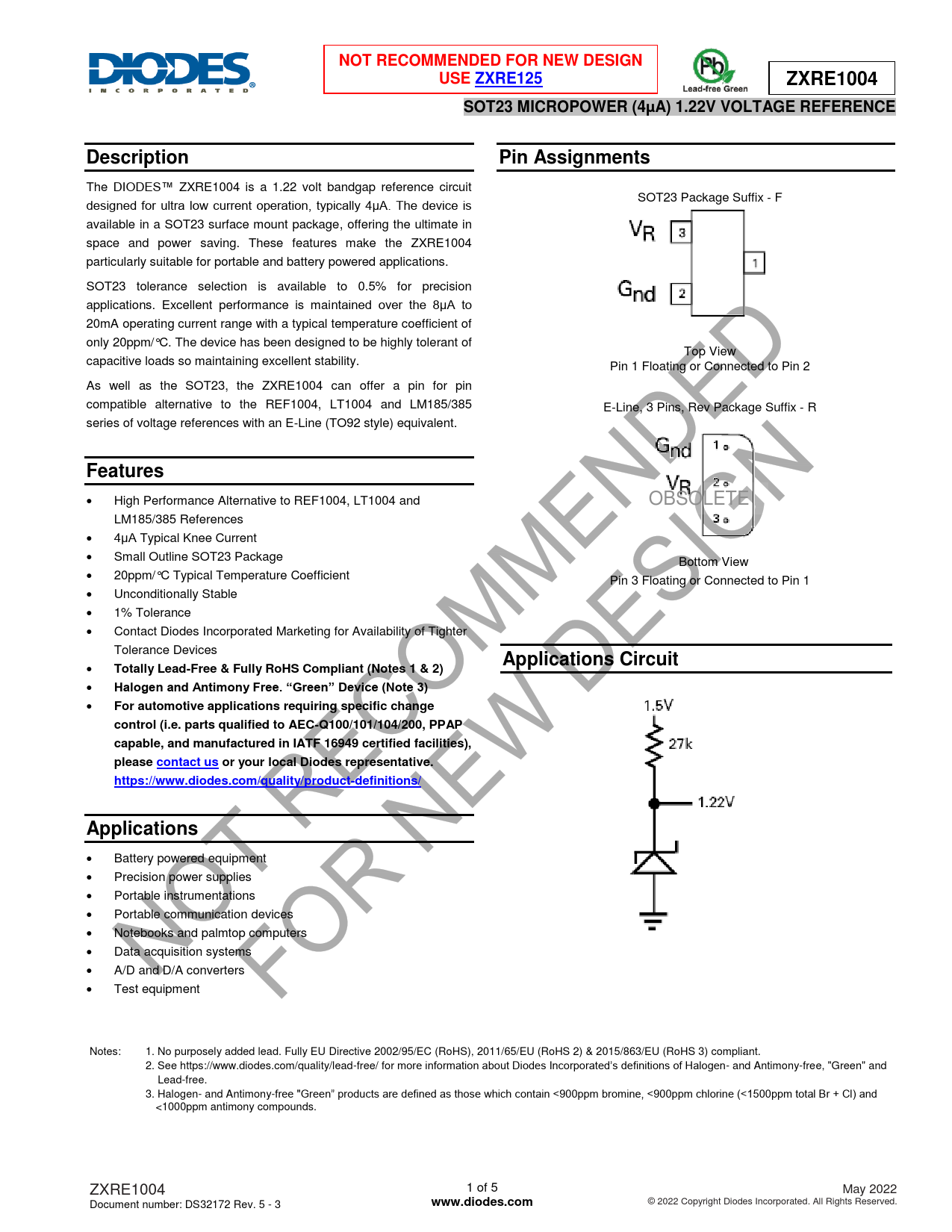

NOT RECOMMENDED FOR NEW DESIGN. USE ZXRE125. ZXRE1004. SOT23 MICROPOWER (4µA) 1.22V VOLTAGE REFERENCE. Description
Línea de modelo para esta hoja de datos
Versión de texto del documento
NOT RECOMMENDED FOR NEW DESIGN USE ZXRE125 ZXRE1004 SOT23 MICROPOWER (4µA) 1.22V VOLTAGE REFERENCE Description Pin Assignments
The DIODES™ ZXRE1004 is a 1.22 volt bandgap reference circuit designed for ultra low current operation, typically 4μA. The device is SOT23 Package Suffix - F available in a SOT23 surface mount package, offering the ultimate in space and power saving. These features make the ZXRE1004 particularly suitable for portable and battery powered applications. SOT23 tolerance selection is available to 0.5% for precision applications. Excellent performance is maintained over the 8μA to 20mA operating current range with a typical temperature coefficient of only 20ppm/°C. The device has been designed to be highly tolerant of Top View capacitive loads so maintaining excellent stability. Pin 1 Floating or Connected to Pin 2 As well as the SOT23, the ZXRE1004 can offer a pin for pin compatible alternative to the REF1004, LT1004 and LM185/385 E-Line, 3 Pins, Rev Package Suffix - R series of voltage references with an E-Line (TO92 style) equivalent.
Features
High Performance Alternative to REF1004, LT1004 and OBSOLETE LM185/385 References 4μA Typical Knee Current Small Outline SOT23 Package Bottom View 20ppm/°C Typical Temperature Coefficient Pin 3 Floating or Connected to Pin 1 Unconditionally Stable 1% Tolerance Contact Diodes Incorporated Marketing for Availability of Tighter Tolerance Devices
Applications Circuit Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/ Applications
Battery powered equipment Precision power supplies Portable instrumentations Portable communication devices Notebooks and palmtop computers Data acquisition systems A/D and D/A converters Test equipment Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. ZXRE1004 1 of 5 May 2022 Document number: DS32172 Rev. 5 - 3
www.diodes.com
© 2022 Copyright Diodes Incorporated. All Rights Reserved.
