| Páginas / Página | 21 / 9 — ADR1001. TYPICAL PERFORMANCE CHARACTERISTICS. Figure 3. Noise Spectral … |
| Formato / tamaño de archivo | PDF / 2.6 Mb |
| Idioma del documento | Inglés |

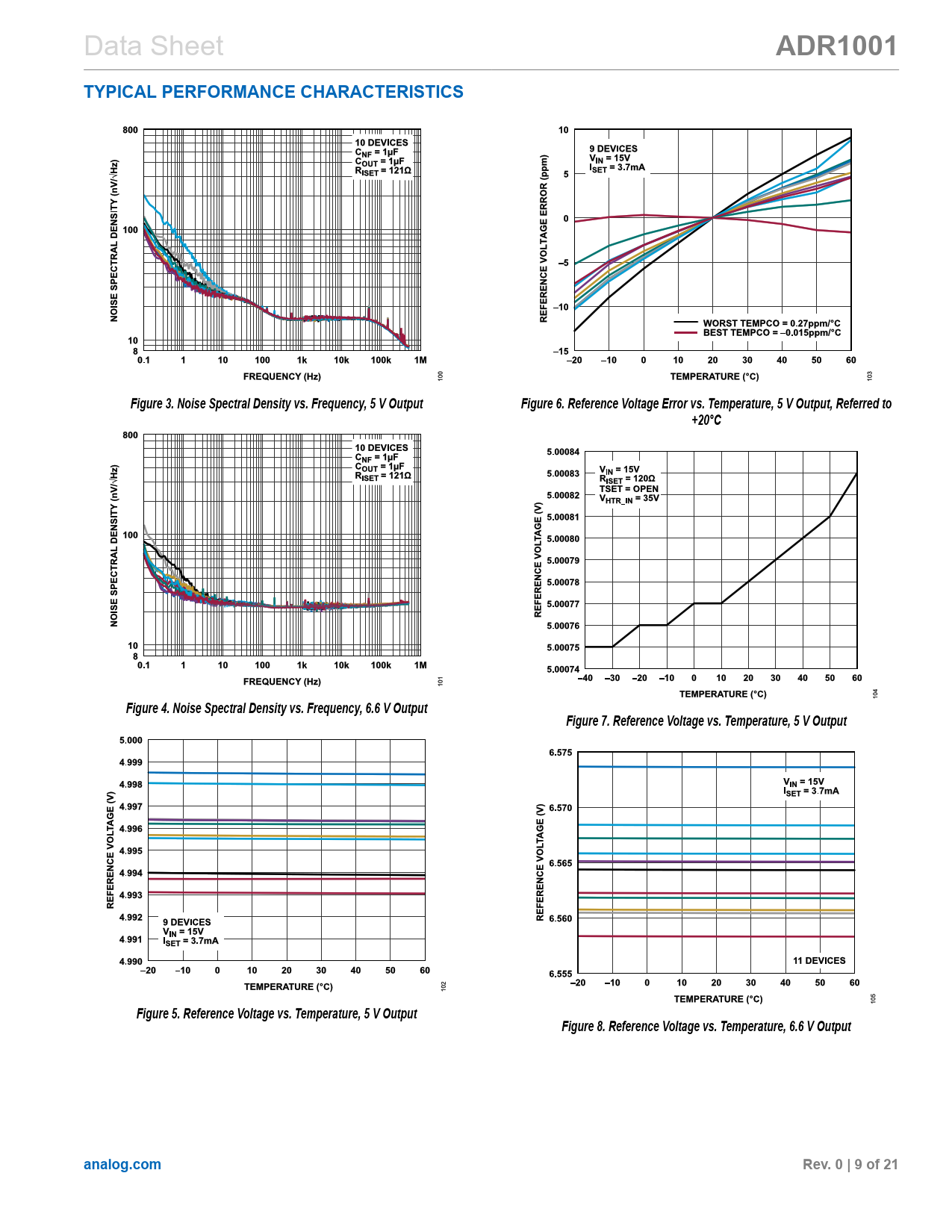

ADR1001. TYPICAL PERFORMANCE CHARACTERISTICS. Figure 3. Noise Spectral Density vs. Frequency, 5 V Output
Línea de modelo para esta hoja de datos
Versión de texto del documento
Data Sheet
ADR1001 TYPICAL PERFORMANCE CHARACTERISTICS Figure 3. Noise Spectral Density vs. Frequency, 5 V Output Figure 6. Reference Voltage Error vs. Temperature, 5 V Output, Referred to +20°C Figure 4. Noise Spectral Density vs. Frequency, 6.6 V Output Figure 7. Reference Voltage vs. Temperature, 5 V Output Figure 5. Reference Voltage vs. Temperature, 5 V Output Figure 8. Reference Voltage vs. Temperature, 6.6 V Output analog.com Rev. 0 | 9 of 21
Document Outline Features Applications General Description Functional Block Diagram Specifications 6.6 V Reference Characteristics Heater Amplifier Electrical Characteristics 5 V Output and Buffer Electrical Characteristics Voltage Divider Characteristics Absolute Maximum Ratings Thermal Resistance Electrostatic Discharge (ESD) Ratings ESD Ratings for the ADR1001 ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Theory of Operation Buried Zener Reference Loop Thermal Regulator Heater Current Limiting Setting the ADR1001 Operating Temperature Precision Voltage Divider and Output Buffer Power Good External Resistor Sensitivity Capacitors Noise Performance Electromechanical Stability Solder Heat Resistance (SHR) Shift Applications Information Basic Connections Outline Dimensions Ordering Guide Evaluation Boards
ADR1001 TYPICAL PERFORMANCE CHARACTERISTICS Figure 3. Noise Spectral Density vs. Frequency, 5 V Output Figure 6. Reference Voltage Error vs. Temperature, 5 V Output, Referred to +20°C Figure 4. Noise Spectral Density vs. Frequency, 6.6 V Output Figure 7. Reference Voltage vs. Temperature, 5 V Output Figure 5. Reference Voltage vs. Temperature, 5 V Output Figure 8. Reference Voltage vs. Temperature, 6.6 V Output analog.com Rev. 0 | 9 of 21
