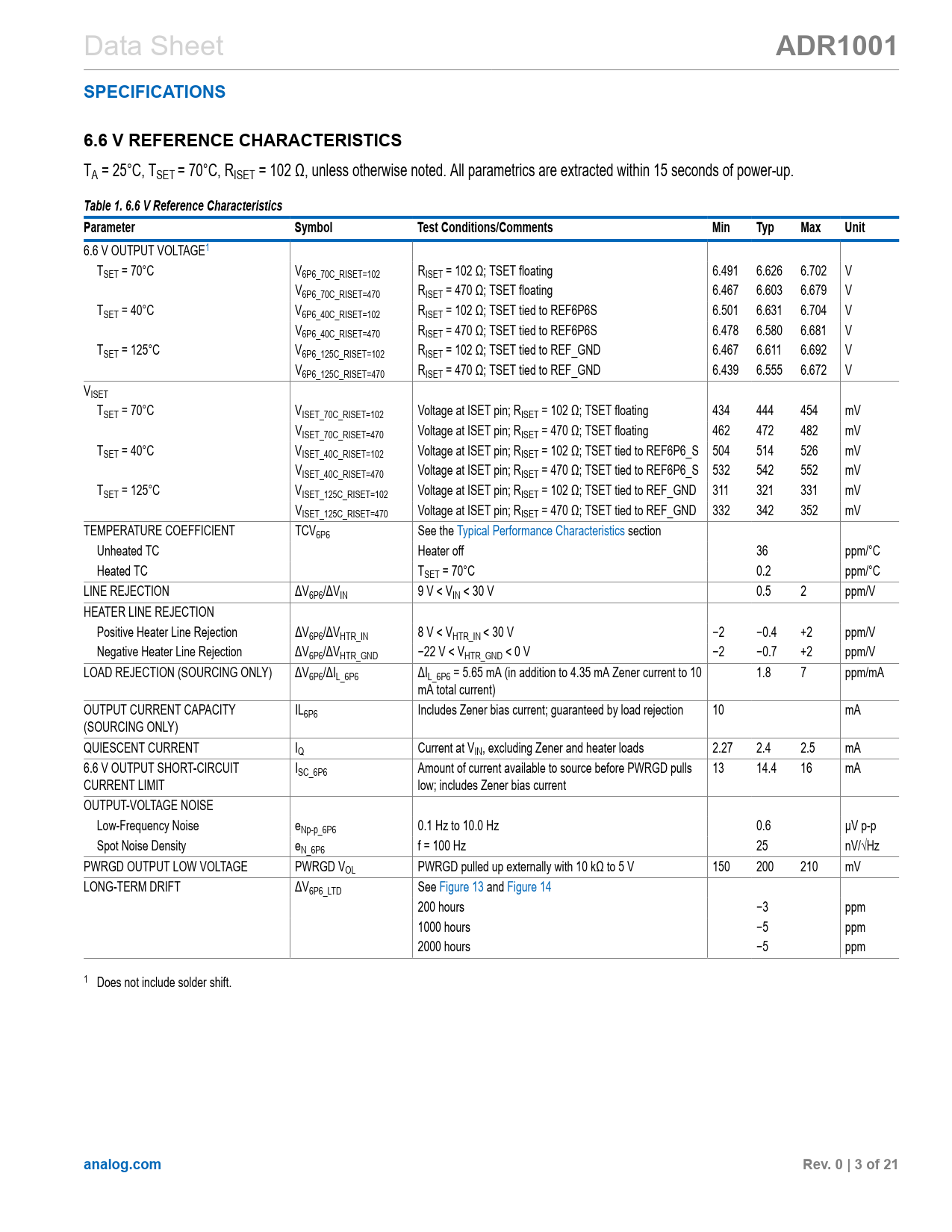

ADR1001 SPECIFICATIONS 6.6 V REFERENCE CHARACTERISTICS
TA = 25°C, TSET = 70°C, RISET = 102 Ω, unless otherwise noted. All parametrics are extracted within 15 seconds of power-up.
Table 1. 6.6 V Reference Characteristics Parameter Symbol Test Conditions/Comments Min Typ Max Unit
6.6 V OUTPUT VOLTAGE1 TSET = 70°C V6P6_70C_RISET=102 RISET = 102 Ω; TSET floating 6.491 6.626 6.702 V V6P6_70C_RISET=470 RISET = 470 Ω; TSET floating 6.467 6.603 6.679 V TSET = 40°C V6P6_40C_RISET=102 RISET = 102 Ω; TSET tied to REF6P6S 6.501 6.631 6.704 V V6P6_40C_RISET=470 RISET = 470 Ω; TSET tied to REF6P6S 6.478 6.580 6.681 V TSET = 125°C V6P6_125C_RISET=102 RISET = 102 Ω; TSET tied to REF_GND 6.467 6.611 6.692 V V6P6_125C_RISET=470 RISET = 470 Ω; TSET tied to REF_GND 6.439 6.555 6.672 V VISET TSET = 70°C VISET_70C_RISET=102 Voltage at ISET pin; RISET = 102 Ω; TSET floating 434 444 454 mV VISET_70C_RISET=470 Voltage at ISET pin; RISET = 470 Ω; TSET floating 462 472 482 mV TSET = 40°C VISET_40C_RISET=102 Voltage at ISET pin; RISET = 102 Ω; TSET tied to REF6P6_S 504 514 526 mV VISET_40C_RISET=470 Voltage at ISET pin; RISET = 470 Ω; TSET tied to REF6P6_S 532 542 552 mV TSET = 125°C VISET_125C_RISET=102 Voltage at ISET pin; RISET = 102 Ω; TSET tied to REF_GND 311 321 331 mV VISET_125C_RISET=470 Voltage at ISET pin; RISET = 470 Ω; TSET tied to REF_GND 332 342 352 mV TEMPERATURE COEFFICIENT TCV6P6 See the Typical Performance Characteristics section Unheated TC Heater off 36 ppm/°C Heated TC TSET = 70°C 0.2 ppm/°C LINE REJECTION ΔV6P6/ΔVIN 9 V < VIN < 30 V 0.5 2 ppm/V HEATER LINE REJECTION Positive Heater Line Rejection ΔV6P6/ΔVHTR_IN 8 V < VHTR_IN < 30 V −2 −0.4 +2 ppm/V Negative Heater Line Rejection ΔV6P6/ΔVHTR_GND −22 V < VHTR_GND < 0 V −2 −0.7 +2 ppm/V LOAD REJECTION (SOURCING ONLY) ΔV6P6/ΔIL_6P6 ΔIL_6P6 = 5.65 mA (in addition to 4.35 mA Zener current to 10 1.8 7 ppm/mA mA total current) OUTPUT CURRENT CAPACITY IL6P6 Includes Zener bias current; guaranteed by load rejection 10 mA (SOURCING ONLY) QUIESCENT CURRENT IQ Current at VIN, excluding Zener and heater loads 2.27 2.4 2.5 mA 6.6 V OUTPUT SHORT-CIRCUIT ISC_6P6 Amount of current available to source before PWRGD pulls 13 14.4 16 mA CURRENT LIMIT low; includes Zener bias current OUTPUT-VOLTAGE NOISE Low-Frequency Noise eNp-p_6P6 0.1 Hz to 10.0 Hz 0.6 μV p-p Spot Noise Density eN_6P6 f = 100 Hz 25 nV/√Hz PWRGD OUTPUT LOW VOLTAGE PWRGD VOL PWRGD pulled up externally with 10 kΩ to 5 V 150 200 210 mV LONG-TERM DRIFT ΔV6P6_LTD See Figure 13 and Figure 14 200 hours −3 ppm 1000 hours −5 ppm 2000 hours −5 ppm 1 Does not include solder shift.
analog.com Rev. 0 | 3 of 21
