L99H92. Block diagram and pins description. 1.1. Block diagram. Figure 1. Block diagram. 1.2. Pinout. Figure 2. Pinout - TQFP32. GH2. SH2
Línea de modelo para esta hoja de datos
Versión de texto del documento

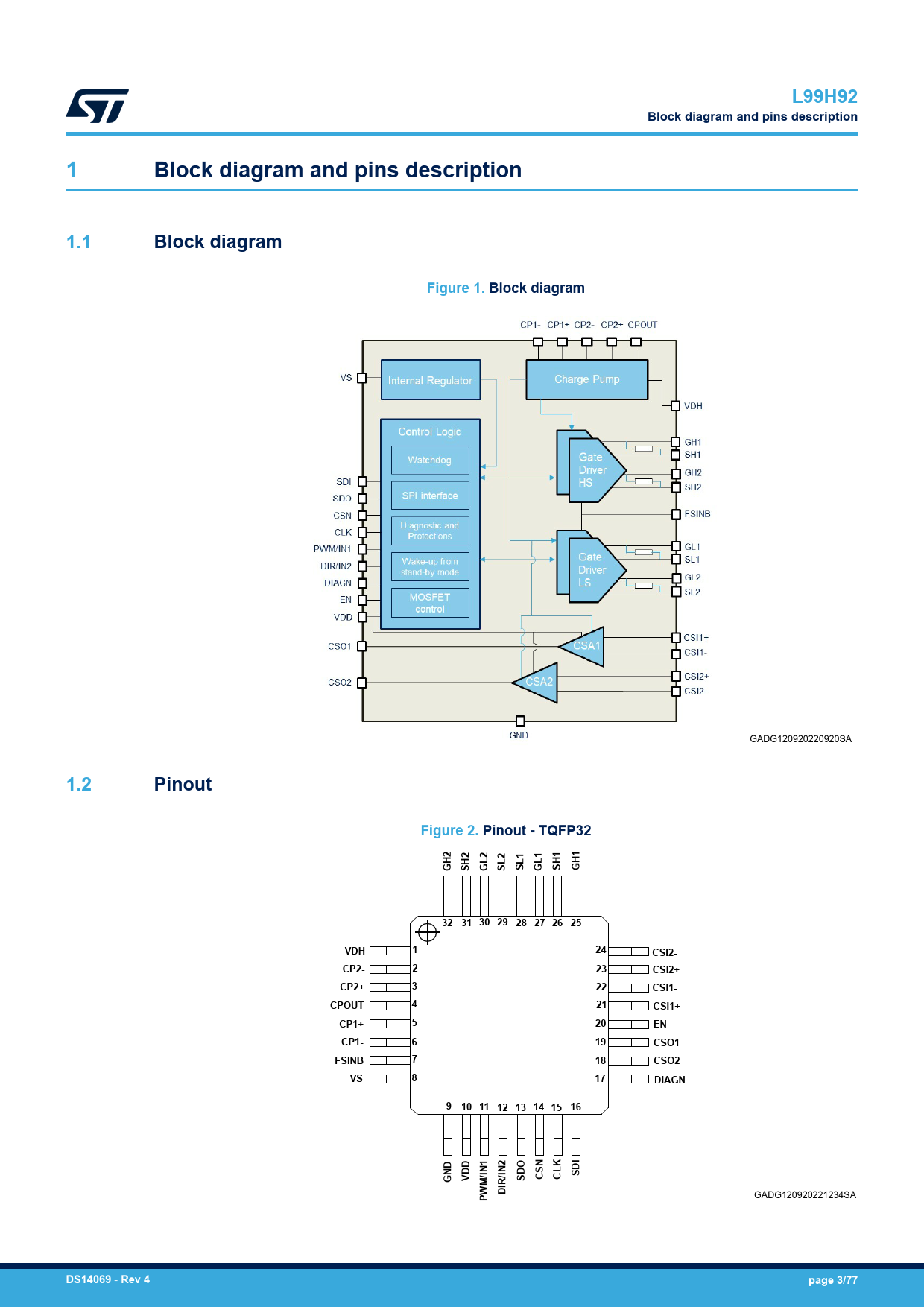

L99H92 Block diagram and pins description 1 Block diagram and pins description 1.1 Block diagram Figure 1. Block diagram
GADG120920220920SA
1.2 Pinout Figure 2. Pinout - TQFP32 GH2 SH2 GL2 SL2 SL1 GL1 SH1 GH1 32 31 30 29 28 27 26 25 VDH 1 24 CSI2- CP2- 2 23 CSI2+ CP2+ 3 22 CSI1- CPOUT 4 21 CSI1+ CP1+ 5 20 EN CP1- 6 19 CSO1 FSINB 7 18 CSO2 VS 8 17 DIAGN 9 10 11 12 13 14 15 16 SDI GND VDD SDO CSN CLK DIR/IN2
GADG120920221234SA
PWM/IN1 DS14069
-
Rev 4 page 3/77
Document Outline L99H92 Features Applications Description 1 Block diagram and pins description 1.1 Block diagram 1.2 Pinout 1.3 Pins description 2 Device description 2.1 Supply pins 2.1.1 VS overvoltage warning (VSOVW) 2.1.2 VDH overvoltage (VDHOV) 2.1.3 VDH undervoltage (VDHUV) 2.1.4 VDD overvoltage (VDDOV) 2.1.5 Digital input/output overvoltage (DIOOV) 2.1.6 Power-on reset (POR) 2.2 Standby mode (EN) 2.3 Active mode (OUTE) 2.4 Thermal warning and thermal shutdown (TW/TSD) 2.5 Charge pump (CPOUT) 2.6 Gate drivers 2.6.1 Outputs driving signals (PWM/IN1 and DIR/IN2) 2.6.2 Slew rate control (SLEW) 2.6.3 Short circuit detection / drain-source monitoring (DSHS/DSLS) 2.6.4 Programmable cross current protection time (DT) 2.7 Diagnostic in off-mode (O1DS/O2DS) 2.8 Fail-safe output switch-off input not pin (FSINB) 2.9 Diagnostic not output (DIAGN) 2.10 Current monitors 2.11 Window watchdog (WDG) 3 Application 4 Serial peripheral interface (SPI) 4.1 ST SPI 4.1 4.1.1 Physical layer 4.1.2 Clock and data characteristics 4.1.3 Communication protocol 4.1.4 Address definition 5 Electrical characteristics 5.1 Absolute maximum ratings 5.2 ESD protection 5.3 Thermal data 5.4 Electrical characteristics 5.4.1 Supply, supply monitoring 5.4.2 Power-on reset 5.5 Charge pump 5.6 Full-bridge driver 5.7 VDS monitoring thresholds 5.7.1 Open-load monitoring external full-bridges 5.8 Current sense amplifiers (CSA) 5.9 Fail-safe switch-off input FSINB 5.10 Enable 5.11 DIAGN 5.12 Watchdog 5.13 SPI electrical characteristics 5.14 Oscillator 5.15 Operating modes 6 SPI registers 6.1 Global status byte GSB 6.2 Register map overview 6.3 Status registers 6.4 Control registers 7 Package information 7.1 QFN32L 5x5 mm package information 7.2 TQFP32L 7x7 mm package information Revision history
