Datasheet MTP50P03HDLG (ON Semiconductor) - 7
| Fabricante | ON Semiconductor |
| Descripción | Power MOSFET 50 Amps, 30 Volts, Logic Level P−Channel TO−220 |
| Páginas / Página | 8 / 7 — MTP50P03HDLG. Figure 14. Thermal Response. Figure 15. Diode Reverse … |
| Formato / tamaño de archivo | PDF / 113 Kb |
| Idioma del documento | Inglés |

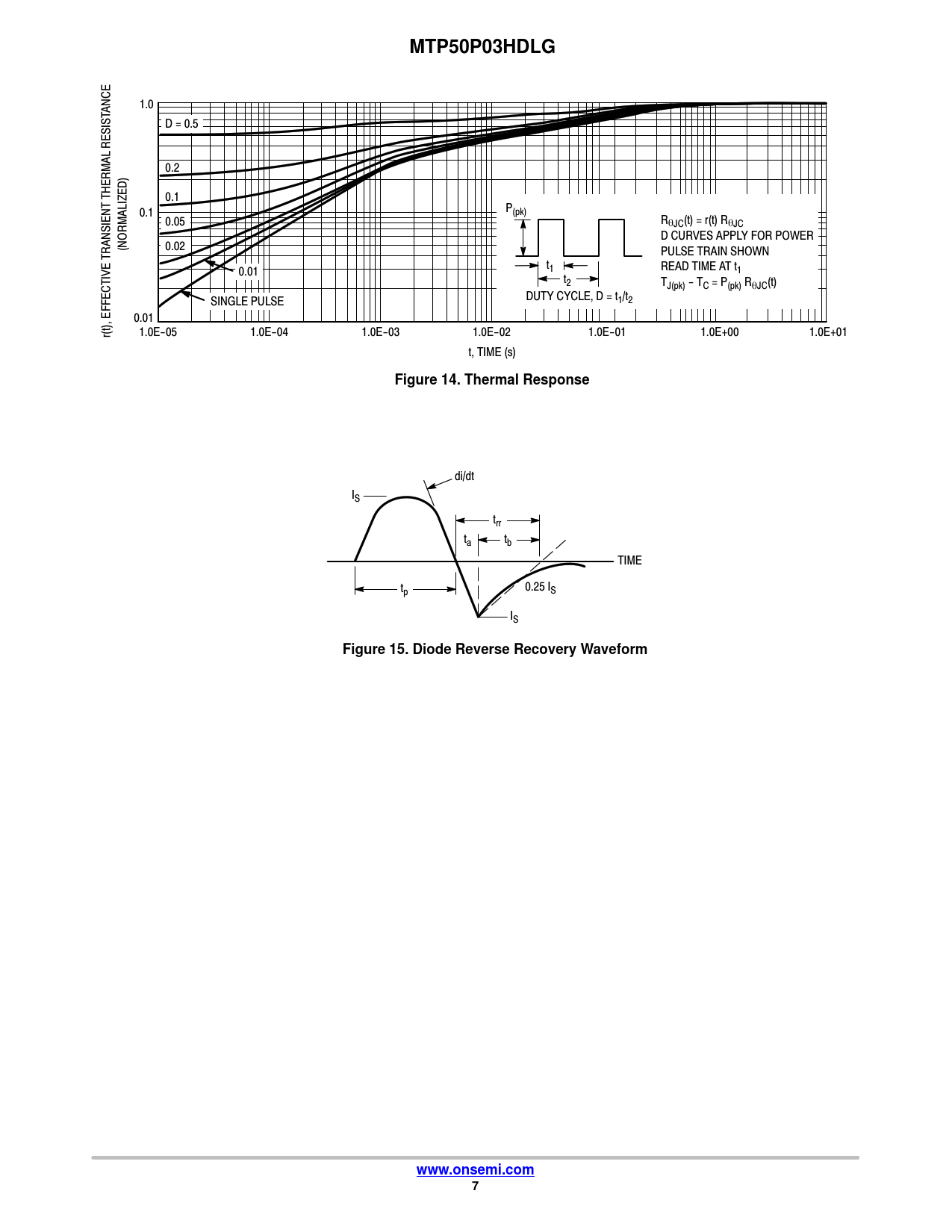

MTP50P03HDLG. Figure 14. Thermal Response. Figure 15. Diode Reverse Recovery Waveform. www.onsemi.com
Línea de modelo para esta hoja de datos
Versión de texto del documento
MTP50P03HDLG
ANCE 1.0 D = 0.5 RESIST 0.2 THERMAL 0.1 0.1 P(pk) 0.1 0.05 RqJC(t) = r(t) RqJC D CURVES APPLY FOR POWER (NORMALIZED) 0.02 TRANSIENT PULSE TRAIN SHOWN t 0.01 1 READ TIME AT t1 t2 TJ(pk) - TC = P(pk) RqJC(t) SINGLE PULSE DUTY CYCLE, D = t1/t2 , EFFECTIVE 0.01 r(t) 1.0E-05 1.0E-04 1.0E-03 1.0E-02 1.0E-01 1.0E+00 1.0E+01 t, TIME (s)
Figure 14. Thermal Response
di/dt IS trr ta tb TIME t 0.25 I p S IS
Figure 15. Diode Reverse Recovery Waveform www.onsemi.com 7
ANCE 1.0 D = 0.5 RESIST 0.2 THERMAL 0.1 0.1 P(pk) 0.1 0.05 RqJC(t) = r(t) RqJC D CURVES APPLY FOR POWER (NORMALIZED) 0.02 TRANSIENT PULSE TRAIN SHOWN t 0.01 1 READ TIME AT t1 t2 TJ(pk) - TC = P(pk) RqJC(t) SINGLE PULSE DUTY CYCLE, D = t1/t2 , EFFECTIVE 0.01 r(t) 1.0E-05 1.0E-04 1.0E-03 1.0E-02 1.0E-01 1.0E+00 1.0E+01 t, TIME (s)
Figure 14. Thermal Response
di/dt IS trr ta tb TIME t 0.25 I p S IS
Figure 15. Diode Reverse Recovery Waveform www.onsemi.com 7
