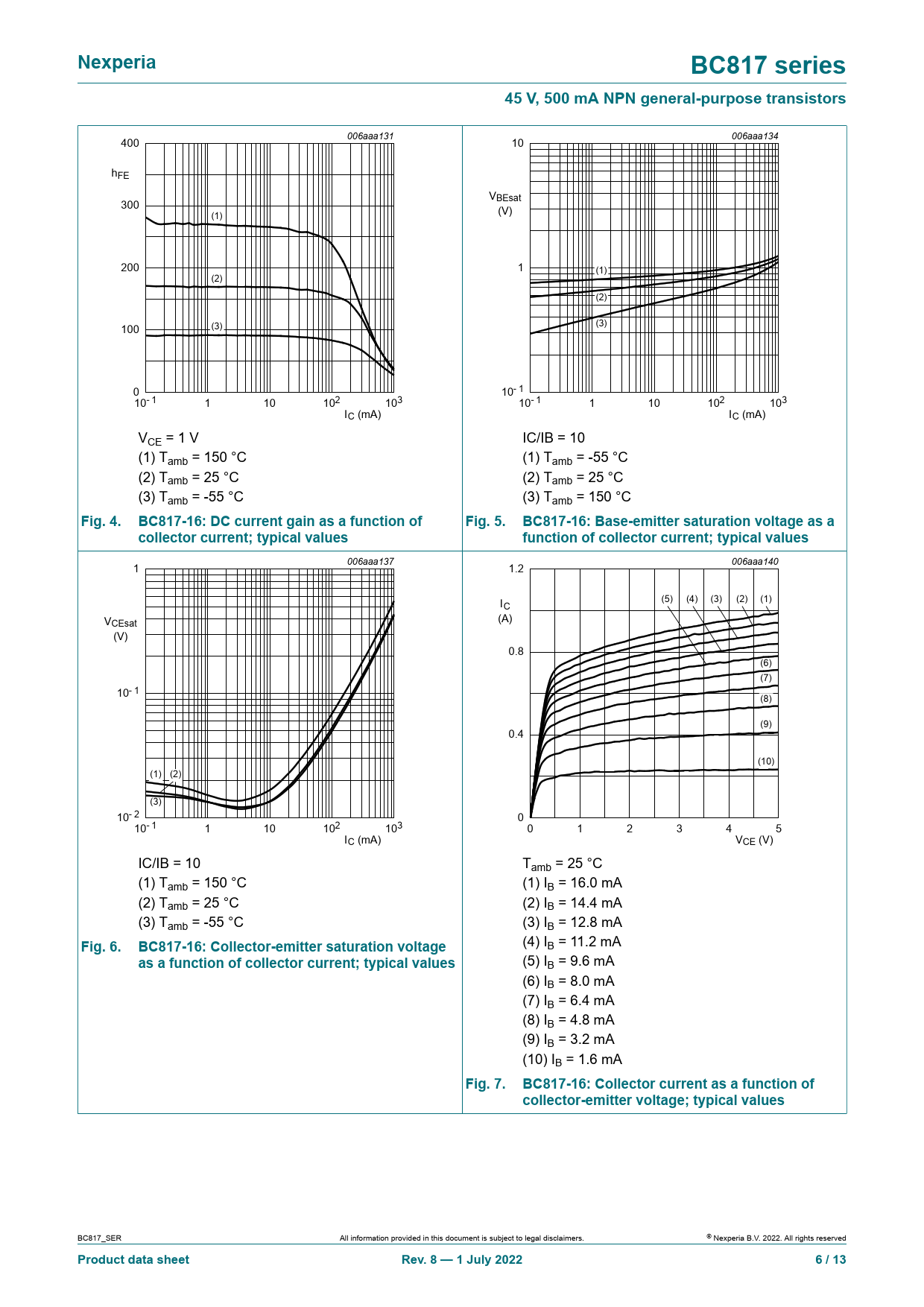

Nexperia. BC817 series. 45 V, 500 mA NPN general-purpose transistors. Fig. 4. BC817-16: DC current gain as a function of
Línea de modelo para esta hoja de datos
Versión de texto del documento
Nexperia BC817 series 45 V, 500 mA NPN general-purpose transistors
006aaa131 400 006aaa134 10 hFE V 300 BEsat (1) (V) 200 1 (1) (2) (2) 100 (3) (3) 0 10- 1 10- 1 103 102 1 10 10- 1 103 102 1 10 IC (mA) IC (mA) VCE = 1 V IC/IB = 10 (1) Tamb = 150 °C (1) Tamb = -55 °C (2) Tamb = 25 °C (2) Tamb = 25 °C (3) Tamb = -55 °C (3) Tamb = 150 °C
Fig. 4. BC817-16: DC current gain as a function of Fig. 5. BC817-16: Base-emitter saturation voltage as a collector current; typical values function of collector current; typical values
006aaa137 1 006aaa140 1.2 I (5) (4) (3) (2) (1) C VCEsat (A) (V) 0.8 (6) (7) 10- 1 (8) (9) 0.4 (10) (1) (2) (3) 10- 2 0 10- 1 103 102 1 10 0 1 2 3 4 5 IC (mA) VCE (V) IC/IB = 10 Tamb = 25 °C (1) Tamb = 150 °C (1) IB = 16.0 mA (2) Tamb = 25 °C (2) IB = 14.4 mA (3) Tamb = -55 °C (3) IB = 12.8 mA
Fig. 6. BC817-16: Collector-emitter saturation voltage
(4) IB = 11.2 mA
as a function of collector current; typical values
(5) IB = 9.6 mA (6) IB = 8.0 mA (7) IB = 6.4 mA (8) IB = 4.8 mA (9) IB = 3.2 mA (10) IB = 1.6 mA
Fig. 7. BC817-16: Collector current as a function of collector-emitter voltage; typical values
BC817_SER All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2022. Al rights reserved
Product data sheet Rev. 8 — 1 July 2022 6 / 13
