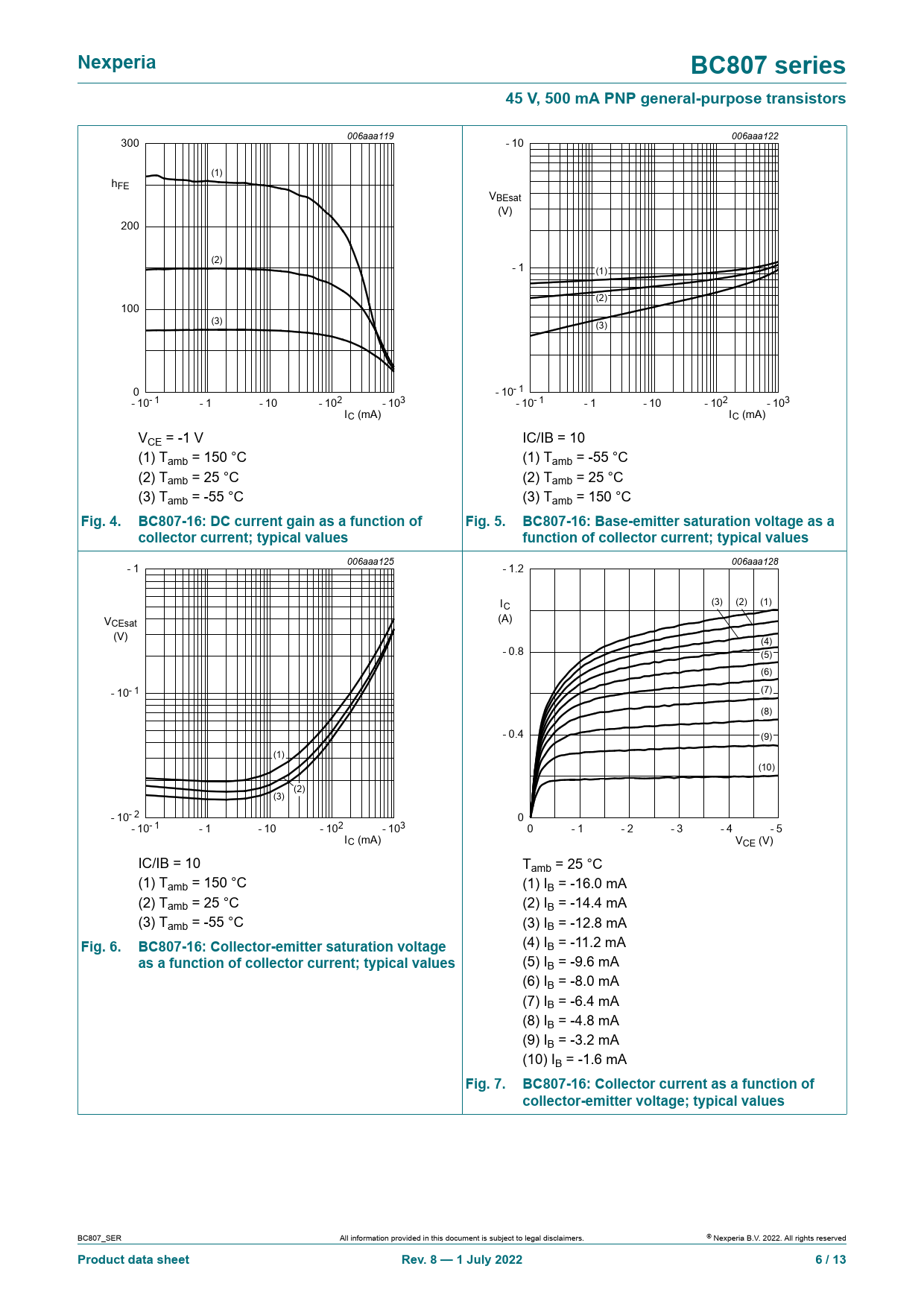

Nexperia. BC807 series. 45 V, 500 mA PNP general-purpose transistors. Fig. 4. BC807-16: DC current gain as a function of
Línea de modelo para esta hoja de datos
Versión de texto del documento
Nexperia BC807 series 45 V, 500 mA PNP general-purpose transistors
006aaa119 300 006aaa122 - 10 (1) hFE VBEsat (V) 200 (2) - 1 (1) (2) 100 (3) (3) 0 - 10- 1 - 10- 1 - 103 - 102 - 1 - 10 - 10- 1 - 103 - 102 - 1 - 10 IC (mA) IC (mA) VCE = -1 V IC/IB = 10 (1) Tamb = 150 °C (1) Tamb = -55 °C (2) Tamb = 25 °C (2) Tamb = 25 °C (3) Tamb = -55 °C (3) Tamb = 150 °C
Fig. 4. BC807-16: DC current gain as a function of Fig. 5. BC807-16: Base-emitter saturation voltage as a collector current; typical values function of collector current; typical values
006aaa125 - 1 006aaa128 - 1.2 IC (3) (2) (1) VCEsat (A) (V) (4) - 0.8 (5) (6) - 10- 1 (7) (8) - 0.4 (9) (1) (10) (2) (3) - 10- 2 0 - 10- 1 - 103 - 102 - 1 - 10 0 - 1 - 2 - 3 - 4 - 5 IC (mA) VCE (V) IC/IB = 10 Tamb = 25 °C (1) Tamb = 150 °C (1) IB = -16.0 mA (2) Tamb = 25 °C (2) IB = -14.4 mA (3) Tamb = -55 °C (3) IB = -12.8 mA
Fig. 6. BC807-16: Collector-emitter saturation voltage
(4) IB = -11.2 mA
as a function of collector current; typical values
(5) IB = -9.6 mA (6) IB = -8.0 mA (7) IB = -6.4 mA (8) IB = -4.8 mA (9) IB = -3.2 mA (10) IB = -1.6 mA
Fig. 7. BC807-16: Collector current as a function of collector-emitter voltage; typical values
BC807_SER All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2022. Al rights reserved
Product data sheet Rev. 8 — 1 July 2022 6 / 13
