Datasheet S102T02, S202T02 (Sharp) - 7
| Fabricante | Sharp |
| Descripción | Zero Cross Type Low Profile SIP 4pin Triac Output SSR |
| Páginas / Página | 13 / 7 — S102T02 Series S202T02 Series. Fig.7-a Repetitive Peak OFF-state Current … |
| Formato / tamaño de archivo | PDF / 245 Kb |
| Idioma del documento | Inglés |
S102T02 Series S202T02 Series. Fig.7-a Repetitive Peak OFF-state Current vs. Fig.7-b Repetitive Peak OFF-state Current vs
Línea de modelo para esta hoja de datos
Versión de texto del documento

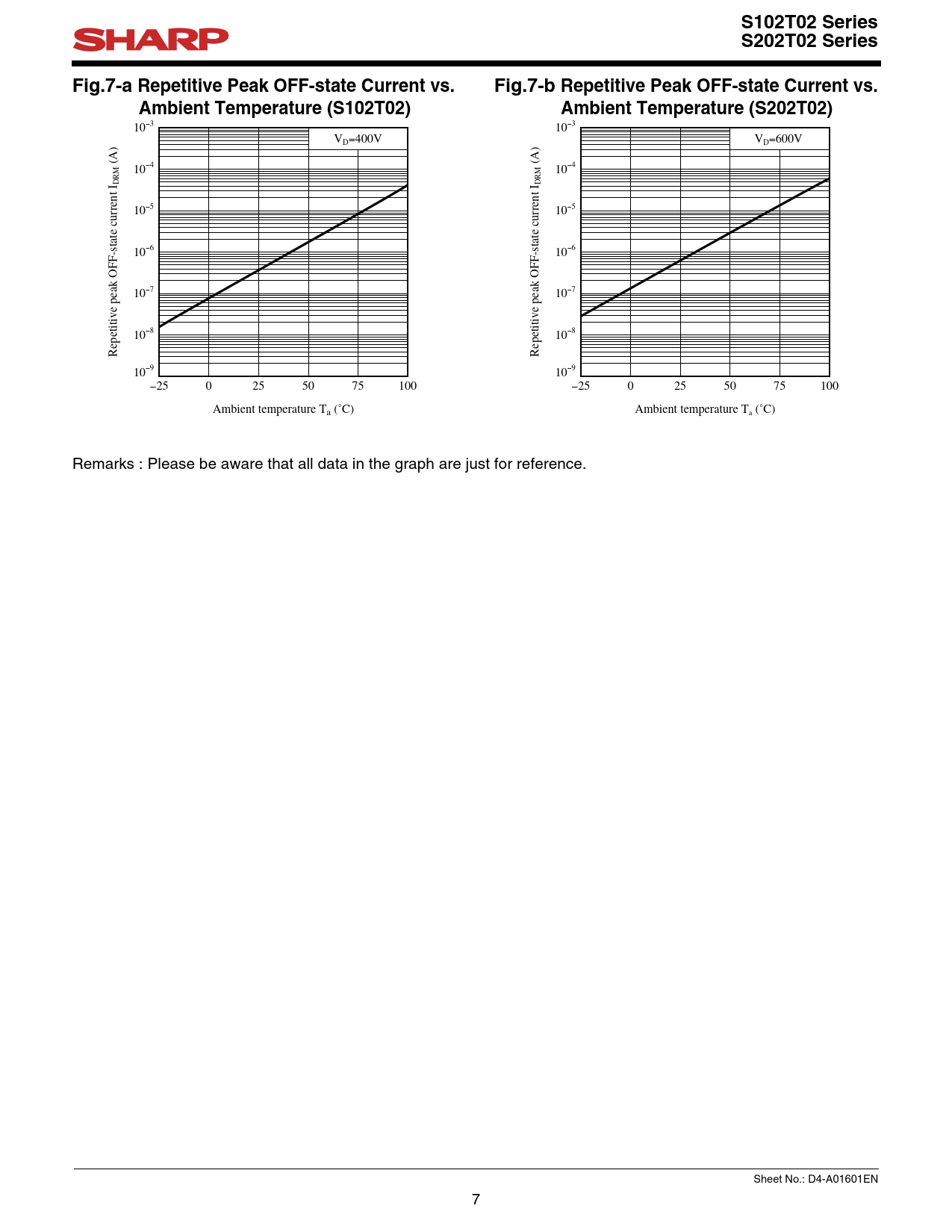

S102T02 Series S202T02 Series Fig.7-a Repetitive Peak OFF-state Current vs. Fig.7-b Repetitive Peak OFF-state Current vs. Ambient Temperature (S102T02) Ambient Temperature (S202T02)
10−3 10−3 VD=400V VD=600V (A) (A) 10−4 10−4 DRM DRM 10−5 10−5 10−6 10−6 10−7 10−7 10−8 10−8 Repetitive peak OFF-state current I Repetitive peak OFF-state current I 10−9 10−9 −25 0 25 50 75 100 −25 0 25 50 75 100 Ambient temperature Ta (˚C) Ambient temperature Ta (˚C) Remarks : Please be aware that all data in the graph are just for reference. Sheet No.: D4-A01601EN 7
