S102T02 Series S202T02 Series. Manufacturing Guidelines. Soldering Method
Línea de modelo para esta hoja de datos
Versión de texto del documento

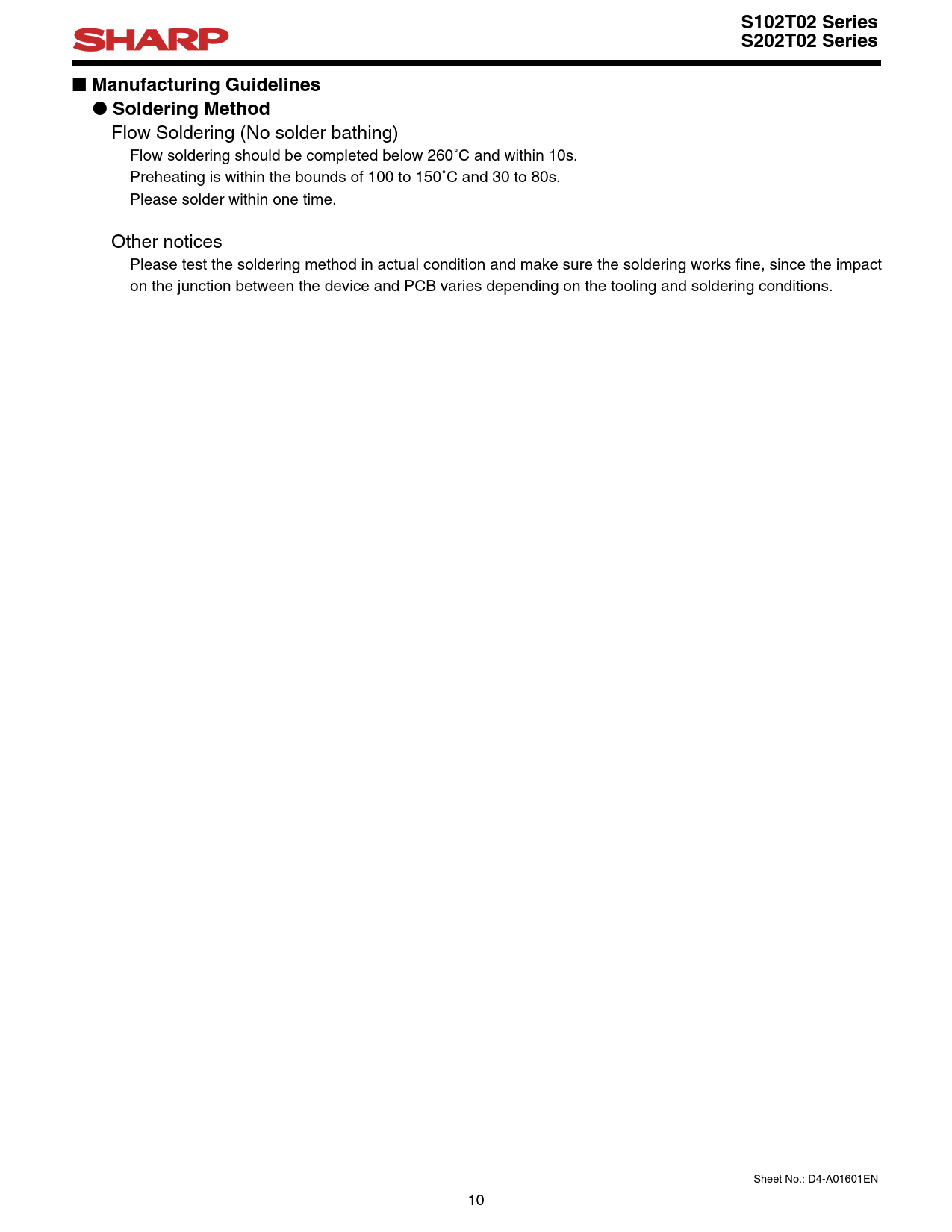

S102T02 Series S202T02 Series
■
Manufacturing Guidelines
●
Soldering Method
Flow Soldering (No solder bathing) Flow soldering should be completed below 260˚C and within 10s. Preheating is within the bounds of 100 to 150˚C and 30 to 80s. Please solder within one time. Other notices Please test the soldering method in actual condition and make sure the soldering works fine, since the impact on the junction between the device and PCB varies depending on the tooling and soldering conditions. Sheet No.: D4-A01601EN 10
■
Manufacturing Guidelines
●
Soldering Method
Flow Soldering (No solder bathing) Flow soldering should be completed below 260˚C and within 10s. Preheating is within the bounds of 100 to 150˚C and 30 to 80s. Please solder within one time. Other notices Please test the soldering method in actual condition and make sure the soldering works fine, since the impact on the junction between the device and PCB varies depending on the tooling and soldering conditions. Sheet No.: D4-A01601EN 10
