Datasheet SFH6156 (Vishay) - 8
| Fabricante | Vishay |
| Descripción | Optocoupler, Phototransistor Output, High Reliability, 5300 V RMS |
| Páginas / Página | 9 / 8 — SFH6156. SOLDER PROFILES. HANDLING AND STORAGE CONDITIONS |
| Formato / tamaño de archivo | PDF / 174 Kb |
| Idioma del documento | Inglés |
SFH6156. SOLDER PROFILES. HANDLING AND STORAGE CONDITIONS
Línea de modelo para esta hoja de datos
Versión de texto del documento
SFH6156
www.vishay.com Vishay Semiconductors
SOLDER PROFILES HANDLING AND STORAGE CONDITIONS

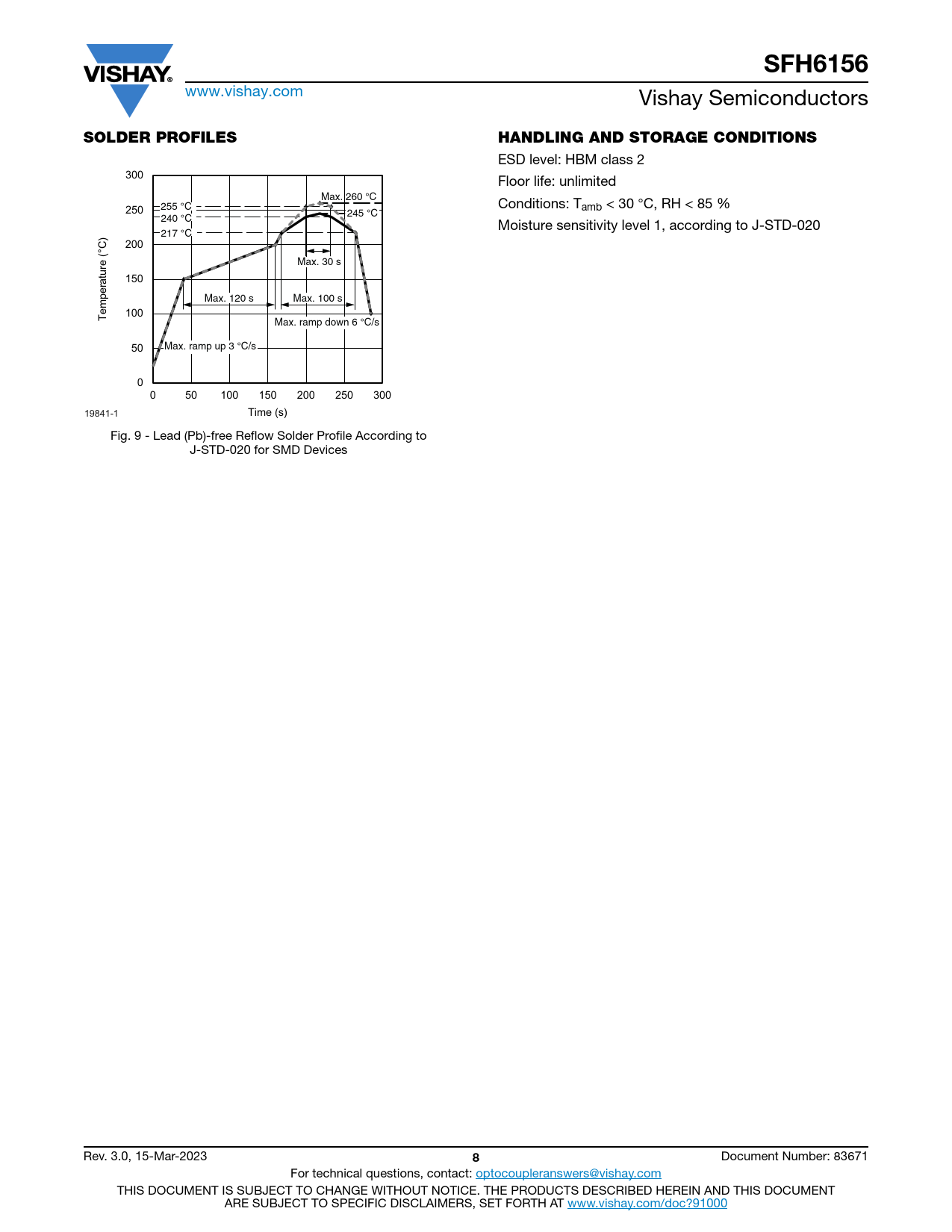

Axis Title ESD level: HBM class 2 300 10000 Floor life: unlimited Max. 260 °C 255 °C Conditions: Tamb < 30 °C, RH < 85 % 250 245 °C 240 °C Moisture sensitivity level 1, according to J-STD-020 217 °C 200 1000 Max. 30 s ine ne ne 150 1st li 2nd l Max. 120 s Max. 100 s 2nd li 100 100 Temperature (°C) Max. ramp down 6 °C/s 50 Max. ramp up 3 °C/s 0 10 0 50 100 150 200 250 300 19841-1 Time (s) Fig. 9 - Lead (Pb)-free Reflow Solder Profile According to J-STD-020 for SMD Devices Rev. 3.0, 15-Mar-2023
8
Document Number: 83671 For technical questions, contact: optocoupleranswers@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
