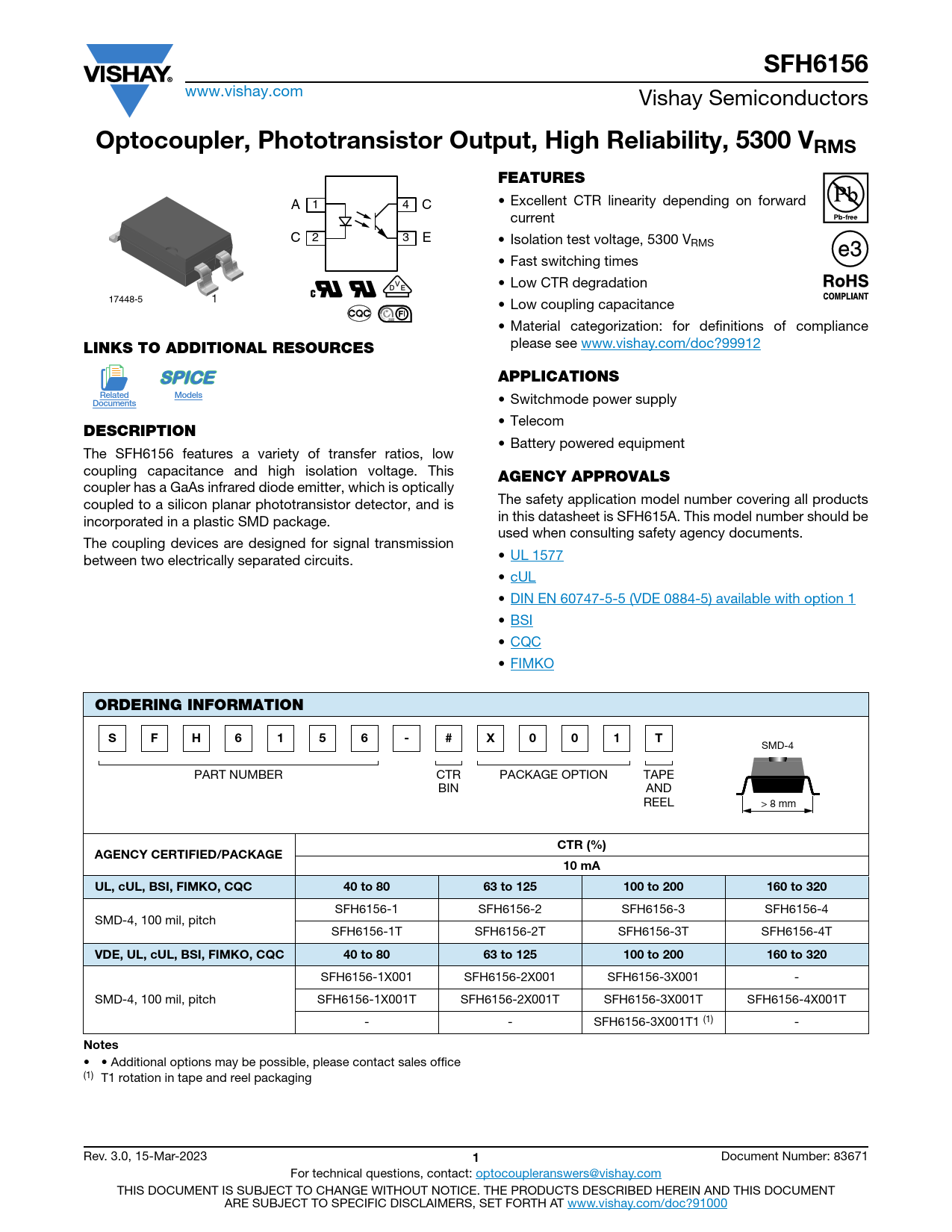

SFH6156
www.vishay.com Vishay Semiconductors
Optocoupler, Phototransistor Output, High Reliability, 5300 VRMS FEATURES
• Excellent CTR linearity depending on forward A 1 4 C current C 2 3 E • Isolation test voltage, 5300 VRMS • Fast switching times • Low CTR degradation 17448-5 1 • Low coupling capacitance • Material categorization: for definitions of compliance
LINKS TO ADDITIONAL RESOURCES
please see www.vishay.com/doc?99912
APPLICATIONS Related Models
• Switchmode power supply
Documents DESCRIPTION
• Telecom • Battery powered equipment The SFH6156 features a variety of transfer ratios, low coupling capacitance and high isolation voltage. This
AGENCY APPROVALS
coupler has a GaAs infrared diode emitter, which is optically coupled to a silicon planar phototransistor detector, and is The safety application model number covering all products incorporated in a plastic SMD package. in this datasheet is SFH615A. This model number should be used when consulting safety agency documents. The coupling devices are designed for signal transmission between two electrically separated circuits. • UL 1577 • cUL • DIN EN 60747-5-5 (VDE 0884-5) available with option 1 • BSI • CQC • FIMKO
ORDERING INFORMATION S F H 6 1 5 6 - # X 0 0 1 T
SMD-4 PART NUMBER CTR PACKAGE OPTION TAPE BIN AND REEL > 8 mm
CTR (%) AGENCY CERTIFIED/PACKAGE 10 mA UL, cUL, BSI, FIMKO, CQC 40 to 80 63 to 125 100 to 200 160 to 320
SFH6156-1 SFH6156-2 SFH6156-3 SFH6156-4 SMD-4, 100 mil, pitch SFH6156-1T SFH6156-2T SFH6156-3T SFH6156-4T
VDE, UL, cUL, BSI, FIMKO, CQC 40 to 80 63 to 125 100 to 200 160 to 320
SFH6156-1X001 SFH6156-2X001 SFH6156-3X001 - SMD-4, 100 mil, pitch SFH6156-1X001T SFH6156-2X001T SFH6156-3X001T SFH6156-4X001T - - SFH6156-3X001T1 (1) -
Notes
• • Additional options may be possible, please contact sales office (1) T1 rotation in tape and reel packaging Rev. 3.0, 15-Mar-2023
1
